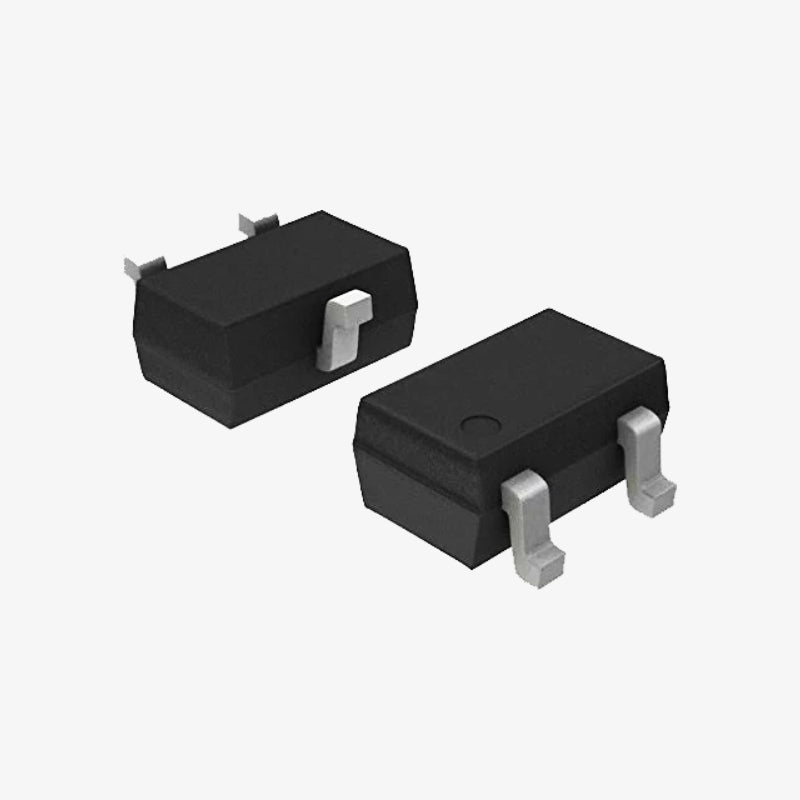

The C945 NPN Transistor SOT-23 SMD Package is a low-noise silicon epitaxial transistor designed for general-purpose amplification and switching in compact surface-mount circuits. Its stable gain, low leakage, and fast response make it suitable for audio preamps, signal processing, driver stages, and low-current switching applications.

Features:

1. Low-noise NPN transistor for clean signal amplification

2. Compact SOT-23 SMD package for space-efficient PCB designs

3. Stable DC gain for reliable amplification

4. RoHS compliant


Specifications:

• Collector-Emitter Voltage (VCEO): 50V

• Collector-Base Voltage (VCBO): 60V

• Emitter-Base Voltage (VEBO): 5V

• Collector Current (IC): 150mA

• DC Current Gain (hFE): 130â€?00

• Collector-Emitter Saturation Voltage (VCE(sat)): â‰?.3V (IC = 100mA)

• Base-Emitter Voltage (VBE): â‰?.4V

• Transition Frequency (fT): 150MHz

• Total Power Dissipation (Ptot): 200mW

• Thermal Resistance Junction-to-Ambient (RθJA): 625°C/W

• Operating Junction Temperature (TJ): -55°C to +150°C


Package Includes:

10 × C945 NPN Transistor - SOT-23 SMD Package
