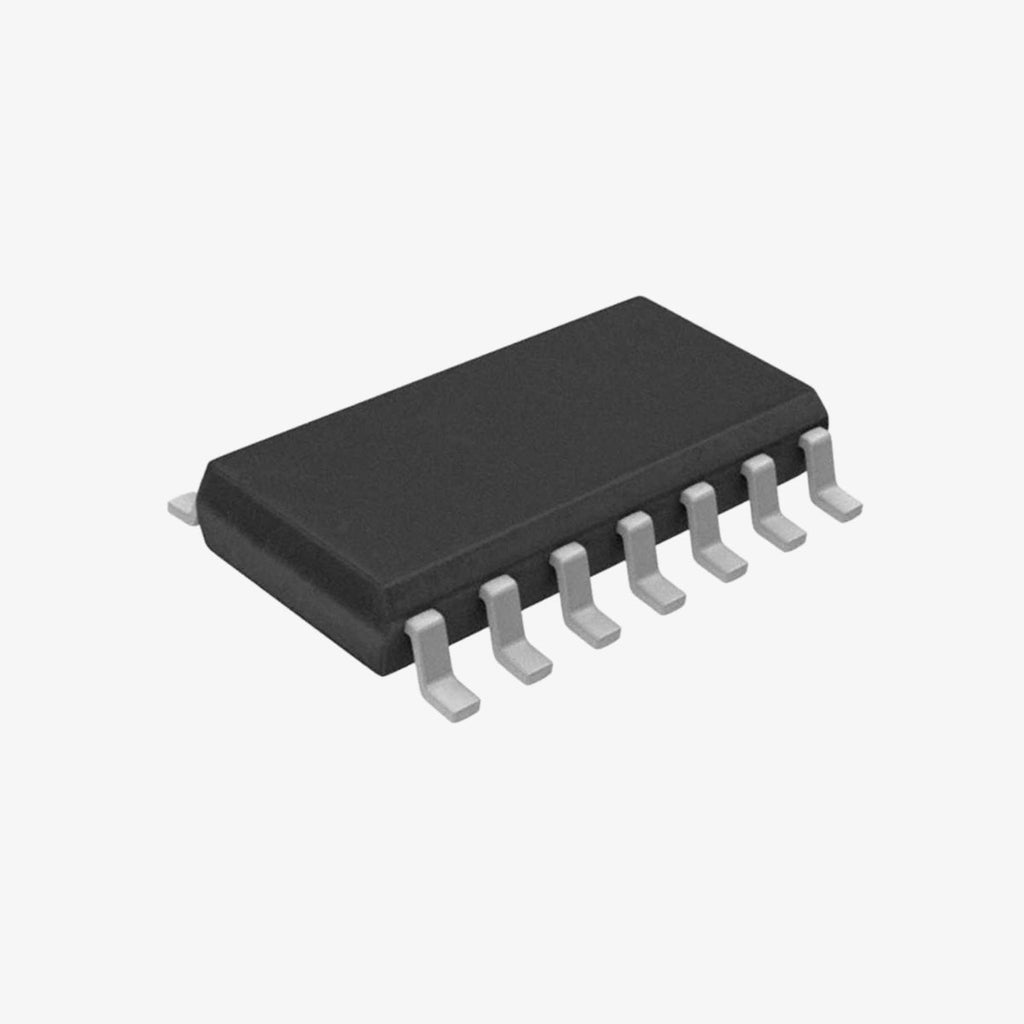

The MC34184 is a low power, high slew rate operational amplifier with a wide bandwidth and JFET input, manufactured by Motorola. This IC is designed for high-speed and precision applications where low power consumption and high performance are crucial. Housed in a compact SOP-14 SMD package, it is suitable for various analog signal processing tasks.

Specifications:

• IC Type: Operational Amplifier
• Manufacturer: Motorola
• Package Type: SOP-14 SMD
• Package Size: 14 Pins
• Input Offset Voltage: ±1 mV (typical)
• Slew Rate: 10 V/µs (typical)
• Gain Bandwidth Product: 10 MHz (typical)
• Supply Voltage Range: ±3 V to ±15 V
• Power Supply Current: 1.8 mA (typical)
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. Offset Null: Offset null pin
2. Inverting Input (1): Inverting input for amplifier 1
3. Non-Inverting Input (1): Non-inverting input for amplifier 1
4. Output (1): Output for amplifier 1
5. Offset Null: Offset null pin
6. Inverting Input (2): Inverting input for amplifier 2
7. Non-Inverting Input (2): Non-inverting input for amplifier 2
8. Output (2): Output for amplifier 2
9. Inverting Input (3): Inverting input for amplifier 3
10. Non-Inverting Input (3): Non-inverting input for amplifier 3
11. Output (3): Output for amplifier 3
12. Inverting Input (4): Inverting input for amplifier 4
13. Non-Inverting Input (4): Non-inverting input for amplifier 4
14. Output (4): Output for amplifier 4

Features:

• Low power consumption
• High slew rate and wide bandwidth
• JFET input for high input impedance
• Suitable for high-speed and precision applications
• Compact SOP-14 SMD package

Applications:

• High-speed analog signal processing
• Precision measurement systems
• Audio and video signal conditioning
• Data acquisition systems
• Low-noise amplification

Package Includes:

• 1 x MC34184 Low Power High Slew Rate Wide Bandwidth JFET Input Op-Amp IC (SOP-14 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
