Description:

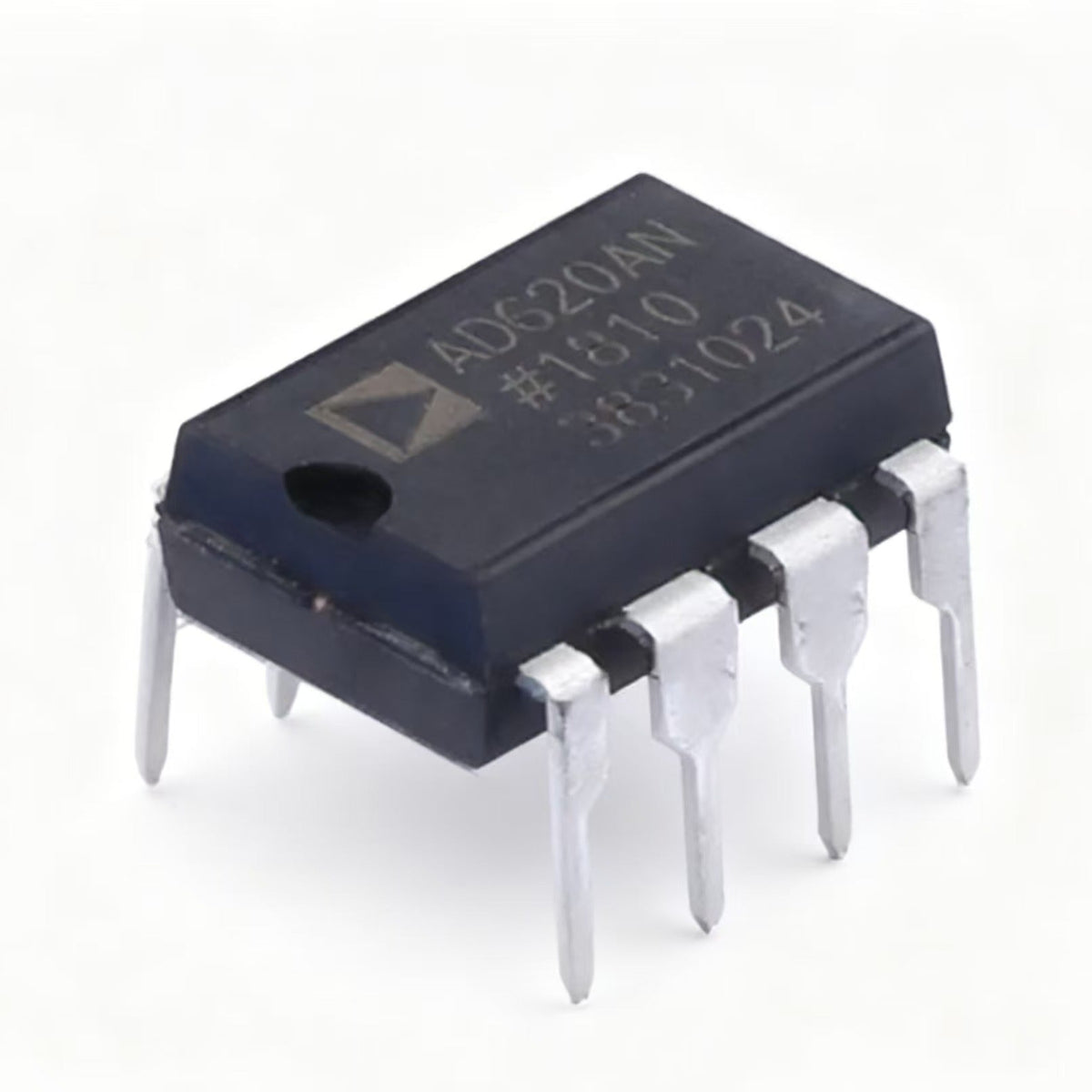

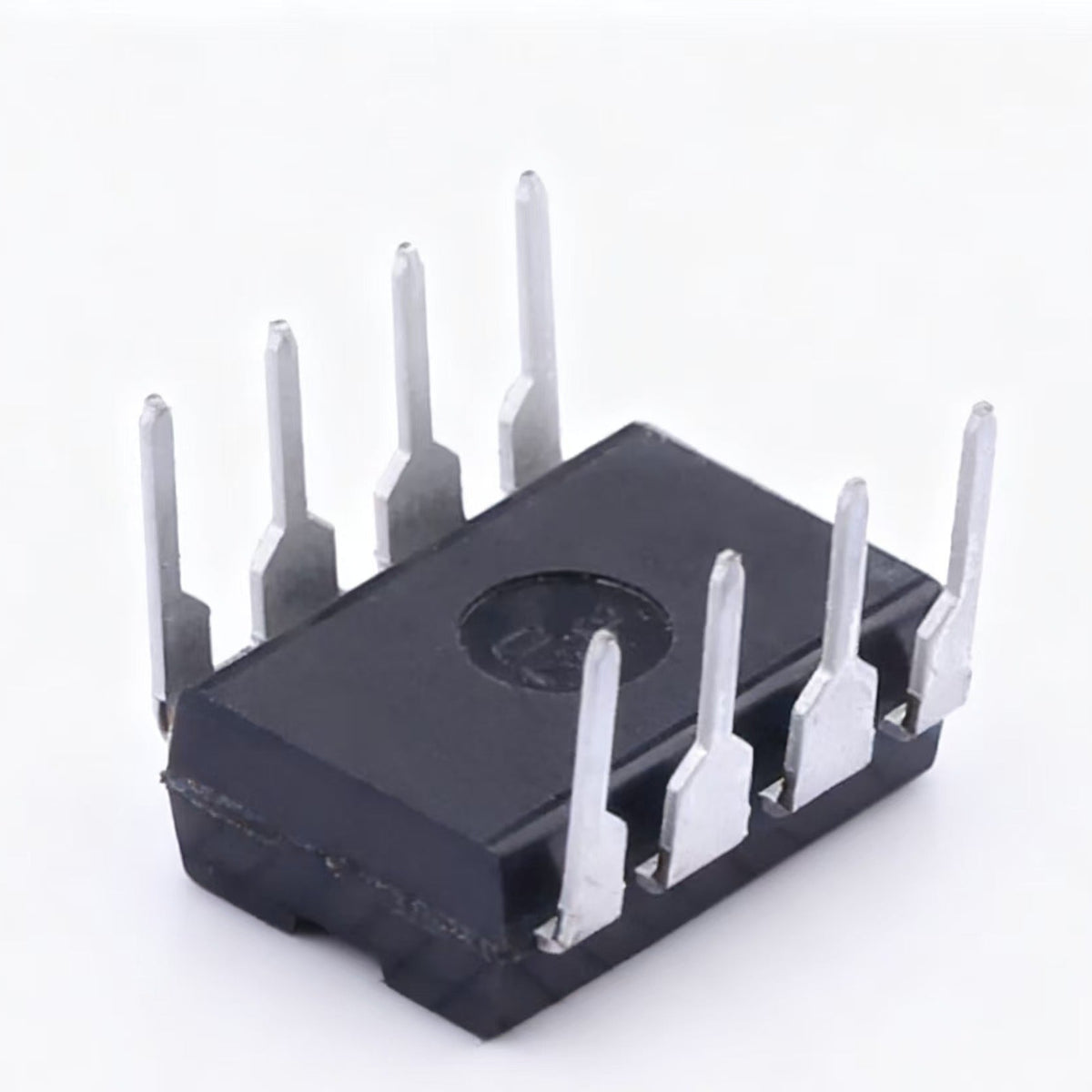

Instrumentation Amplifiers LOW COST,LOW POWER IN AMP
| Product Attribute | Attribute Value |
|---|---|
| Analog Devices Inc. | |
| Product Category: | Instrumentation Amplifiers |
| 1 Channel | |
| 1 MHz | |
| 1.2 V/us | |
| 110 dB | |
| 2 nA | |
| 30 uV | |
| 18 V | |
| 2.3 V | |
| 900 uA | |
| - 55 C | |
| + 125 C | |
| Through Hole | |
| PDIP-8 | |
| Tube | |
| Amplifier Type: | Instrumentation Amplifier |
| Brand: | Analog Devices |
| Dual Supply Voltage: | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Gain V/V: | 1 V/V to 10000 V/V |
| Height: | 3.3 mm |
| Length: | 9.27 mm |
| Maximum Dual Supply Voltage: | +/- 18 V |
| Maximum Input Resistance: | 10 GOhms |
| Minimum Dual Supply Voltage: | +/- 2.3 V |
| Operating Supply Voltage: | 2.3 V to 18 V |
| Pd - Power Dissipation: | 650 mW |
| Product: | Instrumentation Amplifiers |
| Product Type: | Instrumentation Amplifiers |
| PSRR - Power Supply Rejection Ratio: | 140 dB |
| Subcategory: | Amplifier ICs |
| Supply Type: | Dual |
| Vcm - Common Mode Voltage: | 2.3 V to 18 V |
