The FZT788 / FZT788B / FZT788BTA PNP Power Transistor is a high-current surface-mount transistor designed for efficient power switching and amplification in compact electronic circuits. With a maximum collector current of 3A and a collector-emitter voltage rating of 15V, this device is well-suited for low-voltage, high-current applications such as motor drivers, power regulation stages, load switching, and audio amplifier circuits.

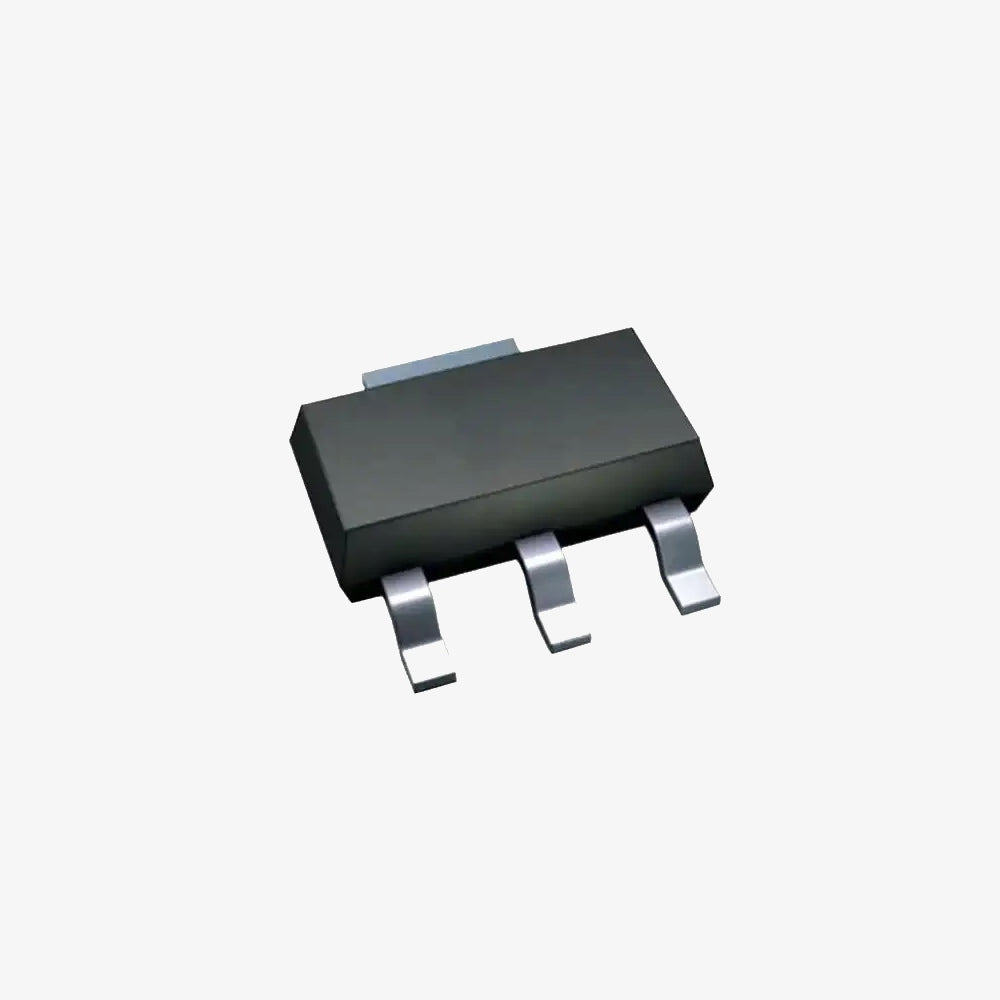

Housed in a compact SOT-223 SMD package, the FZT788 series offers excellent thermal performance and reliable operation, making it ideal for space-constrained designs requiring stable power handling and heat dissipation.

Features:

1. PNP power transistor for high-current switching
2. Continuous collector current up to 3A
3. Low saturation voltage for efficient operation
4. Compact SOT-223 surface-mount package
5. Good thermal conductivity for heat dissipation
6. Suitable for low-voltage power control circuits
7. High reliability and stable electrical performance
8. Compatible with automated SMT assembly

Specifications:

• Transistor Type: PNP
• Model: FZT788 / FZT788B / FZT788BTA
• Package: SOT-223 (SMD)
• Maximum Collector-Emitter Voltage (VCEO): 15V
• Maximum Collector Current (IC): 3A
• Power Dissipation (PD): Up to 2W (with proper PCB thermal design)
• DC Current Gain (hFE): High gain performance
• Saturation Voltage (VCE(sat)): Low
• Junction Temperature Range: -55°C to +150°C
• Mounting Type: Surface Mount (SMD)
• Application Type: Power switching, regulation, amplification

Package Includes:

1 × FZT788 / FZT788B / FZT788BTA PNP Power Transistor - SOT-223 Package
