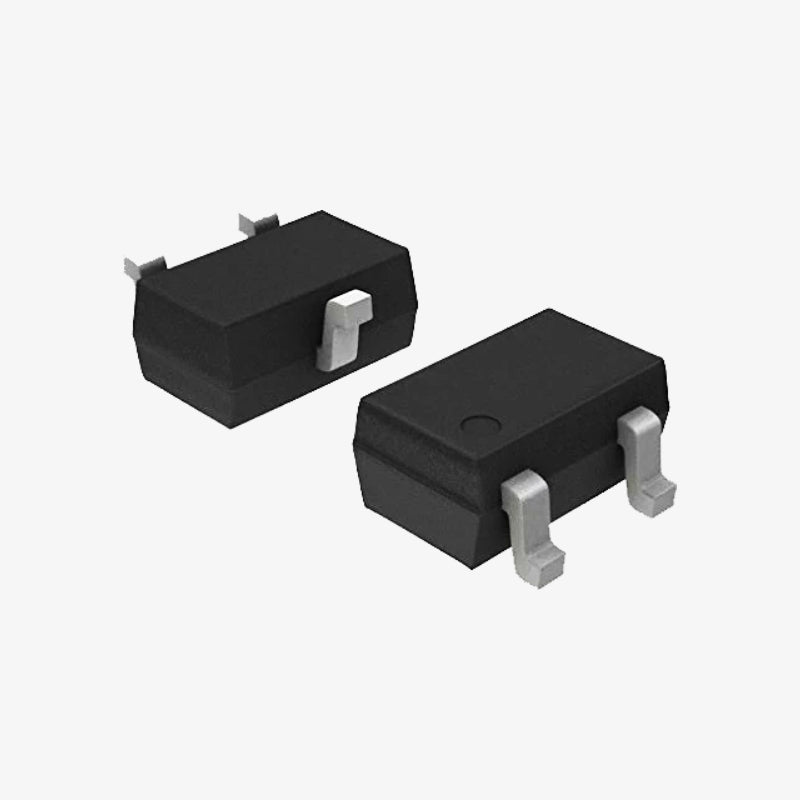

The S9015 PNP Transistor - SOT-23 SMD Package is a general-purpose transistor designed for low-noise amplification and signal switching. It offers high gain, stable operation, and reliable performance in compact circuit designs. Ideal for audio frequency amplifiers, low-power switching, and complementary use with the S9014 NPN transistor.

Features:

1. Complementary pair to S9014 NPN transistor

2. High DC current gain for stable amplification

3. Low collector-emitter saturation voltage

4. Compact SOT-23 surface-mount design

5. Wide operating temperature range for reliable use

Specifications:

• Collector-Base Voltage (VCBO): -50V

• Collector-Emitter Voltage (VCEO): -45V

• Emitter-Base Voltage (VEBO): -5V

• Collector Current (IC): -100mA

• Collector Power Dissipation (PC): 200mW

• Thermal Resistance Junction-to-Ambient (RθJA): 625°C/W

• Junction Temperature (TJ): 150°C

• Storage Temperature (TSTG): -55°C to +150°C

• Collector-Base Breakdown Voltage (V(BR)CBO): -50V

• Collector-Emitter Breakdown Voltage (V(BR)CEO): -45V

• Emitter-Base Breakdown Voltage (V(BR)EBO): -5V

• Collector Cutoff Current (ICBO): -0.1µA

• Emitter Cutoff Current (IEBO): -0.1µA

• DC Current Gain (hFE): 200 to 1000

• Collector-Emitter Saturation Voltage (VCE(sat)): -0.3V

• Base-Emitter Saturation Voltage (VBE(sat)): -1V

• Transition Frequency (fT): 150MHz


Package Includes:

10 × S9015 PNP Transistor - SOT-23 SMD Package
