WATTNINE® 12V 3000mAh Rechargeable Lithium Battery Pack with Warranty
WATTNINE® 12V 3000mAh Rechargeable Lithium Battery Pack with Warranty
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share

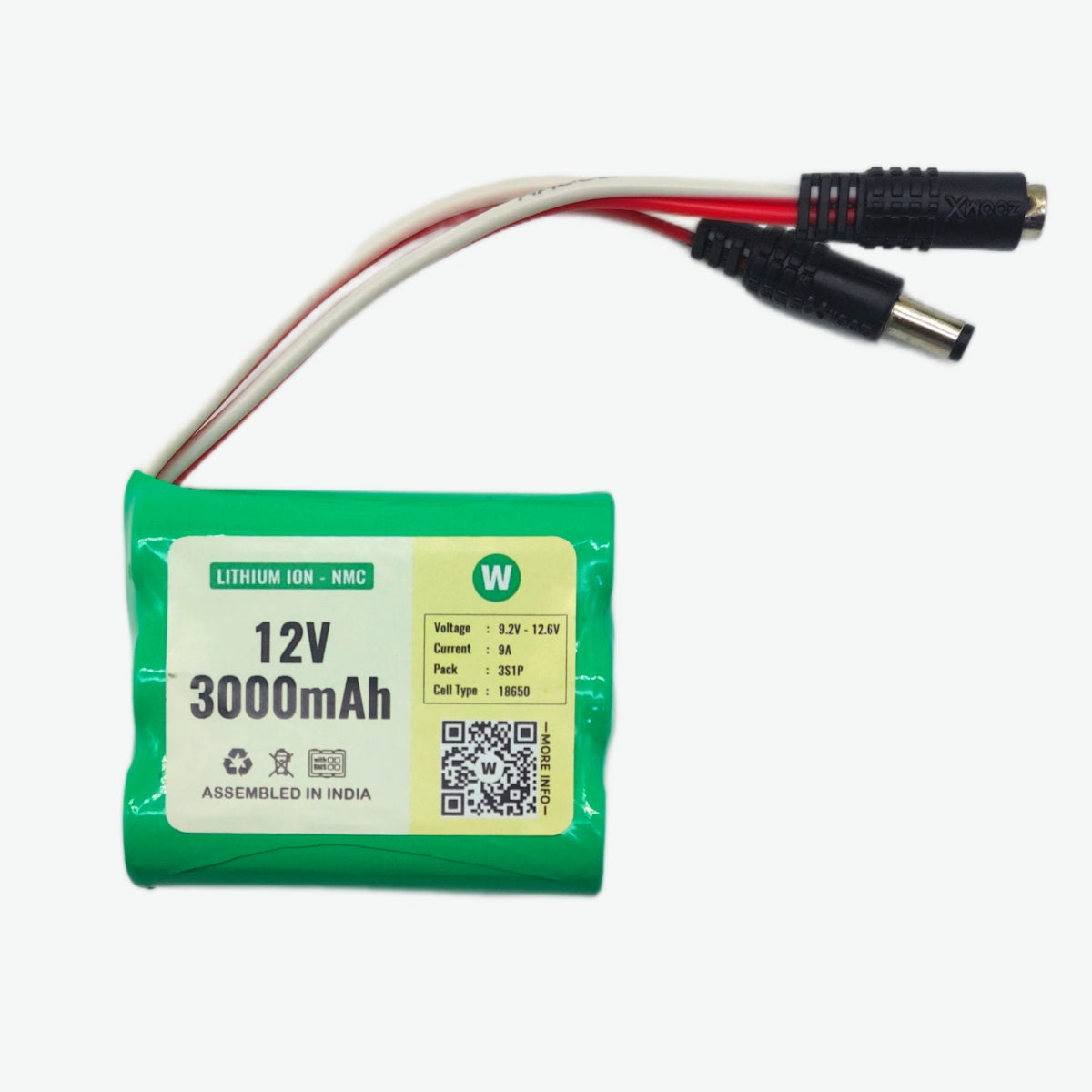

The 12V 3000mAh rechargeable lithium-ion battery from Wattnine is designed to provide high energy Density. It is Light weight and High Power Density, and comes with built-in BMS with Voltage, Temperature, Charge, Current and Short Circuit Protection.
Features
- High energy density
- Equipped with Smart Battery Management System
- Long Cycle life
- Excellent Safety & Performance
Battery Specification:
Nominal Characteristics | |
Nominal Voltage /V |
12V |
Nominal capacity /Ah (25°C, 0.5C) |
3000MAH |
Power |
36W |
Operating Voltage Range |
9V-12.6V |
Pack Characteristics | |
Design |
3S1P |
Cell type / Chemistry |
18650/NMC |
Mechanical Characteristics | |
Weight |
150gm |
Dimension (LxWxH) |
67x55x21 mm |

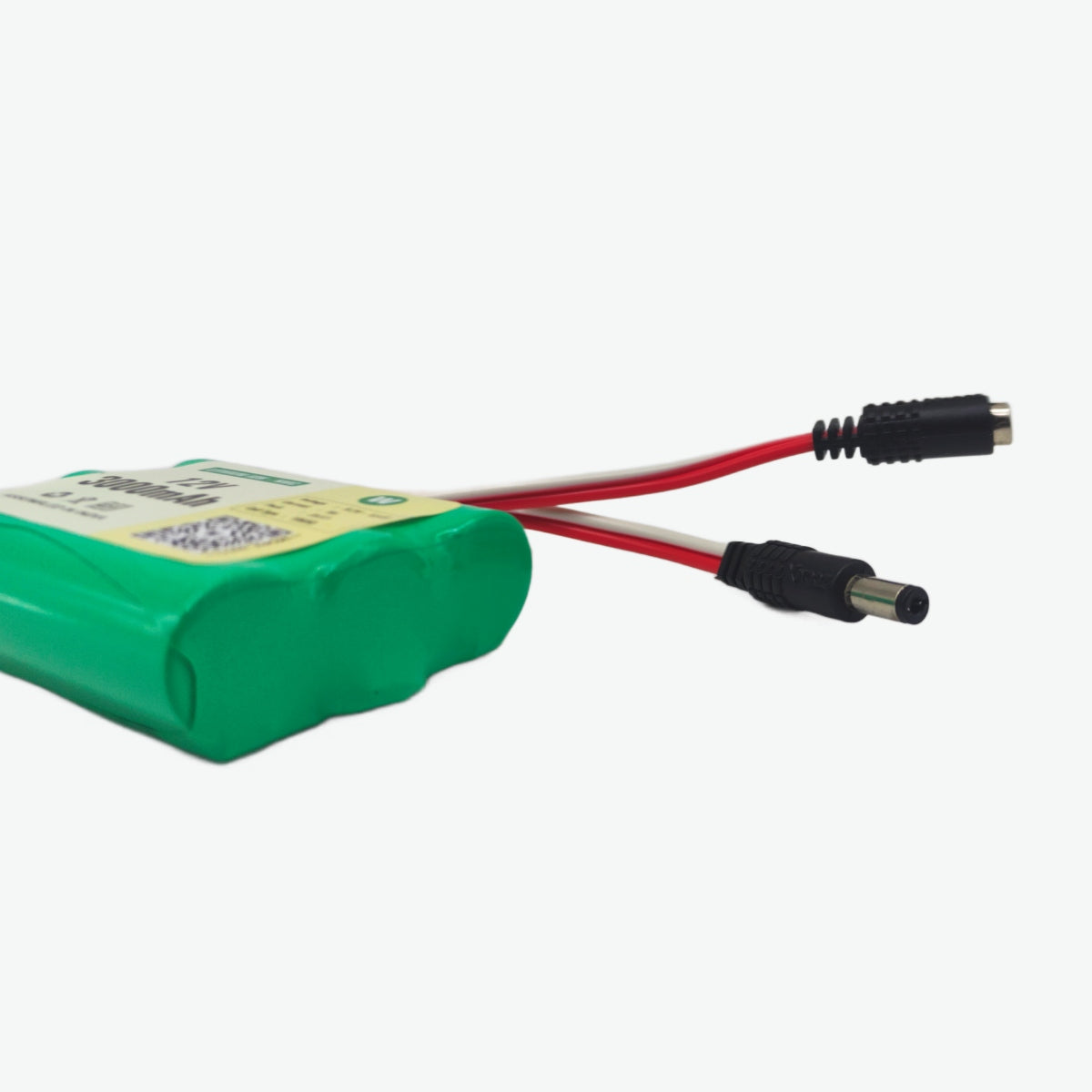

Charging Connector |
DC Male Female Connector |
Discharging Connector |
DC Male Female Connector |
Charging Characteristics | |
Charge voltage |
12.6V |
Max. Continues Charge current |
1.5A |
Charging Duration |
=120 Min |
Discharging Characteristics | |
Max. Voltage |
12.6V |
Min. Voltage |
9V |
Max. Continues Discharge current |
3A |
BMS �Battery Management System:
Protection |
Range |
Units |
|||
Over Charge |
Trigger voltage |
4.25 |
V |
||
Release voltage |
4.05 |
V |
|||
Delay Time |
80 |
Ms |
|||
Over Discharge |
Trigger voltage |
2.40 |
V |
||
Release voltage |
3.0 |
V |
|||
Delay Time |
40 |
ms |
|||
Over current |
Trigger Current |
7 |
A |
||
Delay Time |
40 |
ms |
|||
Balancing Function |
NA |
||||
Short circuit |
Delay Time |
500 |
µs |
||
Manual reset |
Connect Power Source to Reset |
||||
Thermal protection |
High Temperature |
NA |
|||
Low Temperature |
NA |
||||
Certifications & Warranty:
- BIS Approved: Yes
- BIS Registration Number: R-84005630
- Warranty: 3 Years
Warranty Terms:
This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
