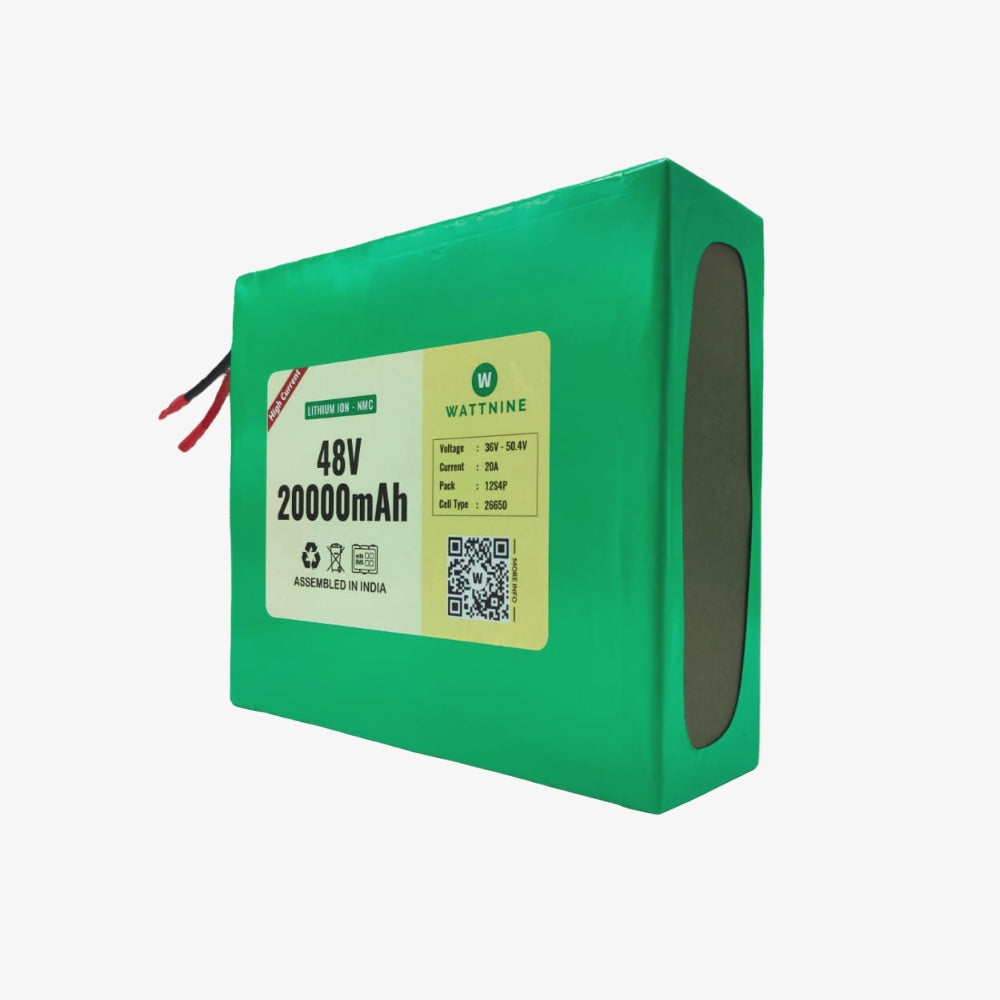

WATTNINE® 48V 20Ah Rechargeable Lithium Ion Battery with 1 year Warranty
WATTNINE® 48V 20Ah Rechargeable Lithium Ion Battery with 1 year Warranty
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
The 48V 20AH rechargeable lithium-ion battery from Wattnine is designed to provide high energy Density. Equipped with a Built-in BMS, enjoy voltage, temperature, charge, current and short circuit protection while experiencing its light weight and high power density that is twice as powerful as acid batteries. Plus, with a 1 year warranty, feel confident in your purchase.
Features
- High energy density
- Equipped with Smart Battery Management System
- Long Cycle life
- Excellent Safety & Performance
Battery Specification:
Nominal Characteristics | |
Nominal capacity /Ah (25°C, 0.5C) |
20AH |
Power |
960W |
Operating Voltage Range |
36V-54.6V |
Pack Characteristics | |
Design |
13S4P |
Cell type / Chemistry |
26650/NMC |
Mechanical Characteristics | |
Weight |
5.8KG |
Dimension (L*W*H) |
231*205*72 mm |
Charging Connector |
|
Discharging Connector |
|
Charging Characteristics | |
Charge voltage |
54.6V |
Max. Continues Charge current |
10A |
Charging Duration |
120 Min |
Discharging Characteristics | |
Max. Voltage |
54.6V |
Min. Voltage |
39V |
Nominal Continues Discharge current |
10A |
Max. Continues Discharge current |
20A |
BMS �Battery Management System:
Protection |
Range |
Units |
|||
Over Charge |
Trigger voltage |
4.25 |
V |
||
Release voltage |
4.15 |
V |
|||
Delay Time |
600-1400 |
Ms |
|||
Over Discharge |
Trigger voltage |
2.70 |
V |
||
Release voltage |
3.0 |
V |
|||
Delay Time |
200-600 |
ms |
|||
Over current |
Trigger Current |
43 |
A |
||
Delay Time |
200 |
ms |
|||
Balancing Function |
Yes |
||||
Short circuit |
Delay Time |
500 |
µs |
||
Manual reset |
Connect Power Source to Reset |
||||
Thermal protection |
High Temperature |
70 |
°C |
||
Low Temperature |
-20 |
°C |
|||
Warranty Terms:
This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
