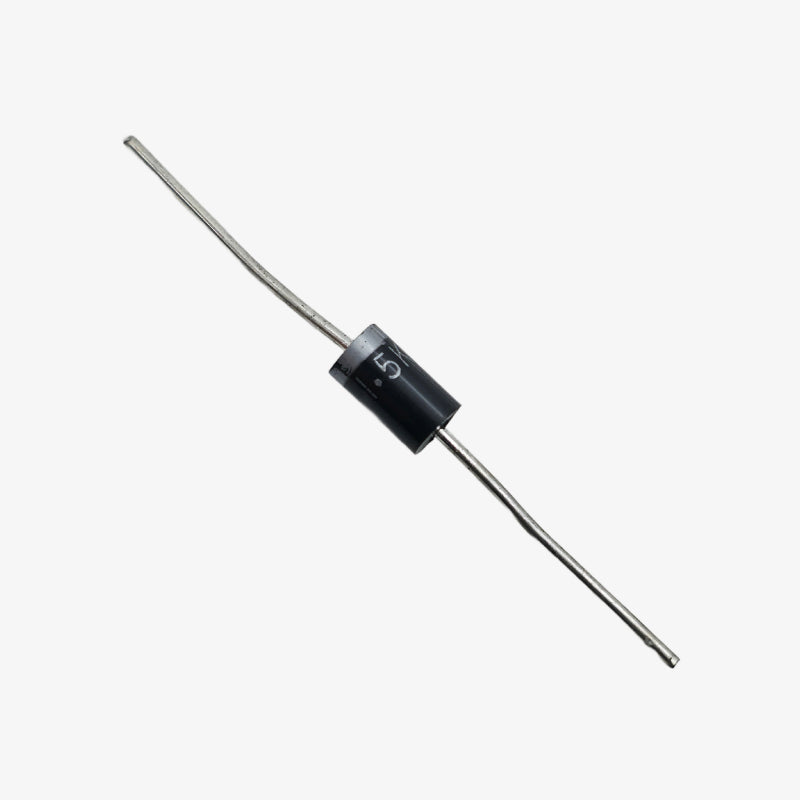

1.5KE36A Transient Voltage Suppressor Diode - DO-201AE

The 1.5KE36A Transient Voltage Suppressor Diode - DO-201AE is designed to protect sensitive electronics from high-energy voltage spikes generated by lightning strikes, inductive switching, and surge events. Its rugged DO-201AE package and fast clamping action ensure stable and reliable protection for industrial, automotive, and general-purpose power systems. Ideal for safeguarding power rails, data interfaces, and surge-prone circuits.

Features:

1. 1500 W peak pulse capability with 10/1000 μs waveform

2. Glass passivated chip junction for enhanced stability

3. Fast response time for effective transient suppression

4. Excellent clamping performance with low incremental resistance

5. Halogen-free and RoHS compliant construction

Specifications:

• Reverse Stand-off Voltage (VR): 30.80 V

• Breakdown Voltage (VBR): 34.20 V to 37.80 V

• Test Current (IT): 1 mA

• Maximum Clamping Voltage (VC): 49.9 V

• Maximum Peak Pulse Current (Ipp): 30.5 A

• Maximum Reverse Leakage (IR): 5 µA

• Peak Pulse Power Dissipation (PPPM): 1500 W

• Operating Junction Temperature (TJ): -65°C to +175°C

• Storage Temperature (TSTG): -65°C to +175°C

Package Includes:

1 × 1.5KE36A Transient Voltage Suppressor Diode - DO-201AE
