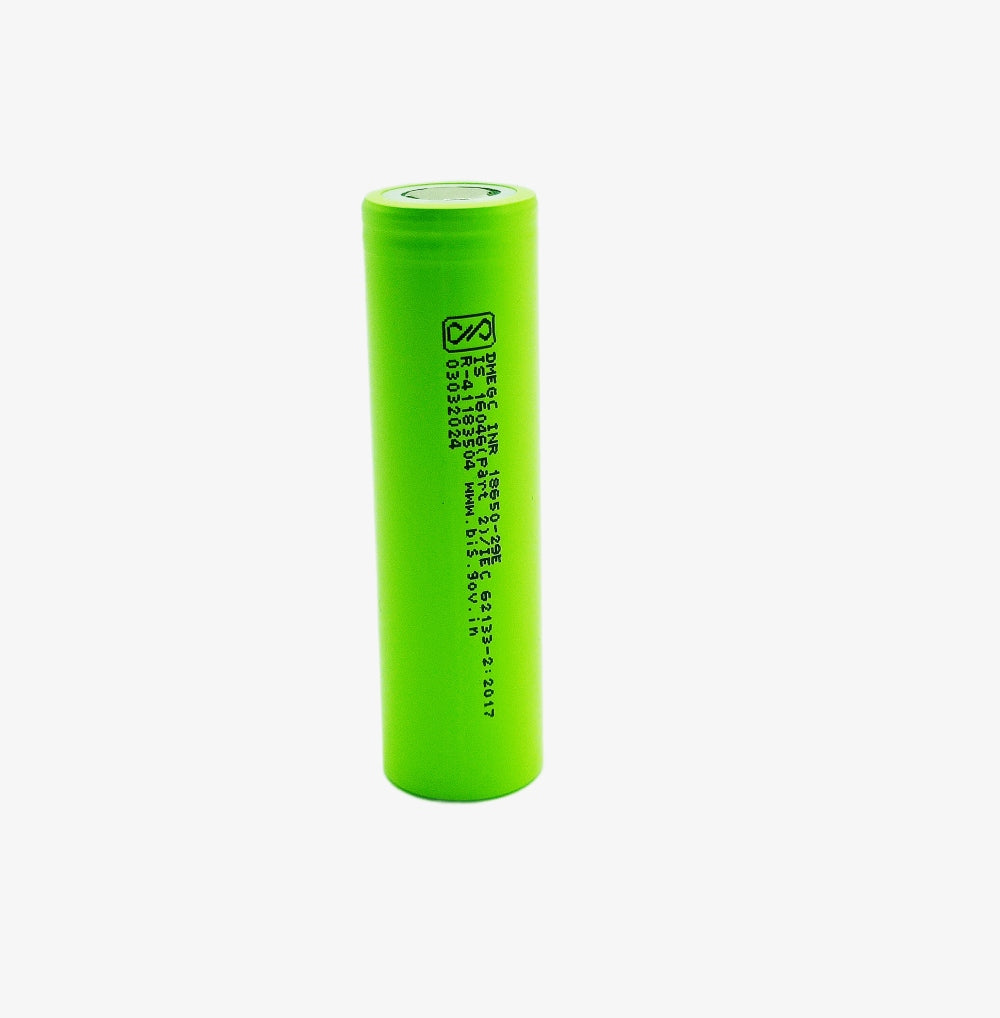

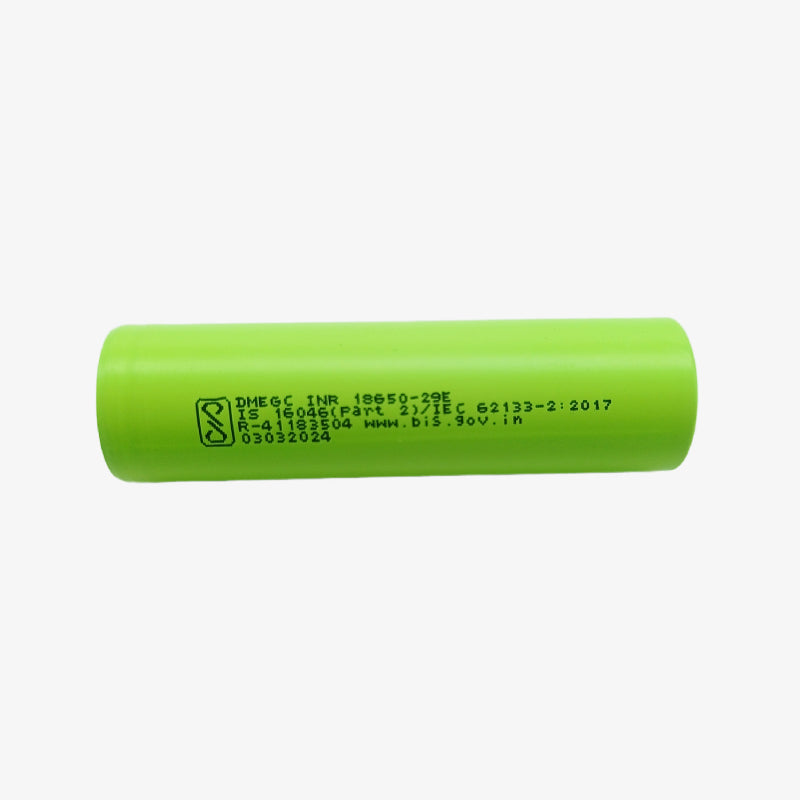

DMEGC 18650 Li-ion 2900mAh 3C Rechargeable Battery - Original

This is an original 2900mAh 3C 18650 battery. The cell can be charged and discharged up to 1000 cycles without much loss in battery capacity. They are safe to use, environment friendly and have long battery life. It comes with high energy density and provides excellent continuous power sources to your device. It should be used with a protection circuit board that guards the battery against over-charge, over-discharge of the pack, and avoid over-current drawn.

DMEGC 18650 2900mAh Battery Cell Specifications:

• Voltage: 3.7 Volts
• Capacity: 2900 mAh
• Rechargeable: Yes
• Discharge Rating: 3C
• Battery Size: Diameter- 18mm x Length- 65mm
• Charging Method CC-CV
• Brand: DMEGC

Applications:

• Cordless Phones
• Small DRONES
• Tablet PC GPS
• iPod, DVD, MP4 Player, etc.
• Mobiles backup power supply/Power bank

 Product Description:

It is very easy to use the cell in any circuit just solder the wires on the terminals or use 18650 battery holders to easily replace the used cells. Care must be taken while handling Li-ion batteries as they are volatile and inflammable and should not be handled roughly and punctured. Also, don’t overcharge and discharge beyond a certain point as gases accumulated inside might result in explosions and fire. So always use the Protection board while using Li-Ion cells. Check out other cells here , , .

C Rating: If you ever wondered what is the maximum amount of current that you can draw from a battery then your answer can be obtained from the C rating of the battery. The C rating of the battery again changes for each battery, let’s assume that the battery we have is a 2Ah battery with 3C rating. The value 3C means that the battery can output 3 times the rated Ah rating as its maximum current. In this case it can supply upto 7.8A (3*2.6 = 7.8) as the maximum current. Normally 18650 cells have a 1C rating only.

Maximum current drawn from battery = C Rating * Ah Rating

Additional Resources:

Package Contents:

1 × 2900mAh 18650 Li-Ion Rechargeable Battery(3C)
