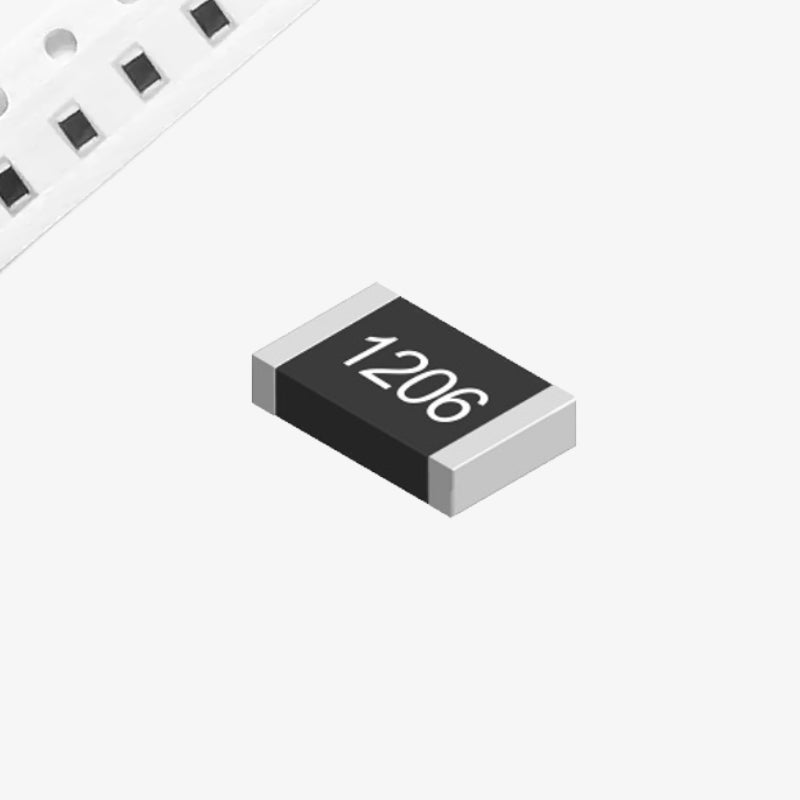

1M Ohm 1206 Package 1/4W SMD Resistor 5% Tolerance (Pack of 20 Pieces)

The 1MΩ 1206 SMD resistor is a high-quality surface-mount resistor designed for reliable performance in compact electronic circuits. With its standard 1206 package size (3.2mm × 1.6mm) and 1/4W power rating, it provides stable resistance and excellent long-term reliability. This resistor is ideal for voltage dividers, current limiting, signal conditioning, and other general-purpose applications in consumer electronics, industrial controls, and instrumentation.

Features of 1MΩ 1206 SMD Resistor:

1. Resistance value: 1MΩ (1,000,000 ohms)
2. Standard 1206 SMD package (3.2mm × 1.6mm)
3. Power rating of 1/4W (0.25W)
4. ±5% resistance tolerance for general-purpose use
5. High stability and low noise for reliable performance
6. Compatible with automated pick-and-place assembly
7. Suitable for consumer electronics, industrial circuits, and instrumentation
8. RoHS compliant

Specifications of 1MΩ 1206 SMD Resistor:

• Model: 1MΩ 1206
• Type: SMD Resistor
• Resistance: 1MΩ (±5% tolerance)
• Power Rating: 0.25W (1/4W)
• Temperature Coefficient: ±200 ppm/°C (typical)
• Package Size: 1206 (3.2mm × 1.6mm)
• Operating Temperature Range: -55°C to +155°C

Package Includes:

1 × 1M Ohm 1206 Package 1/4W SMD Resistor 5% Tolerance (Pack of 20 Pieces)
