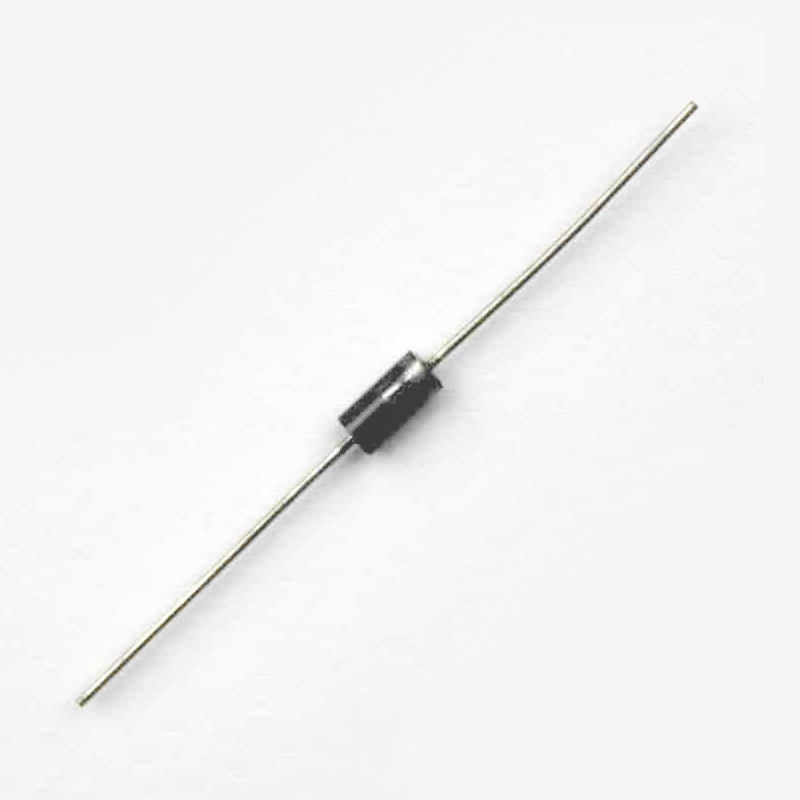

1N4001/1N4007 General Purpose Rectifier Diode

The 1N4001 is a silicon rectifier diode designed for low-voltage, low-current applications. It is widely used in rectification, polarity protection, and power supply circuits due to its reliable performance and ease of integration into electronic designs. This diode allows current to flow in only one direction, making it essential for converting AC to DC and protecting circuits from reverse polarity damage.

Features:

• Low forward voltage drop for efficient power conversion
• High surge current capability to handle transient loads
• 1A continuous current rating for general applications
• 50V maximum reverse voltage for low-power rectification
• DO-41 package for easy PCB mounting and soldering

Specifications:

• Diode Type: General-Purpose Rectifier
• Maximum Reverse Voltage (VRRM): 50V
• Forward Current (IF): 1A
• Surge Current (IFSM): 30A
• Forward Voltage Drop (VF): 0.7V at 1A
• Reverse Recovery Time: 30µs
• Package Type: DO-41
