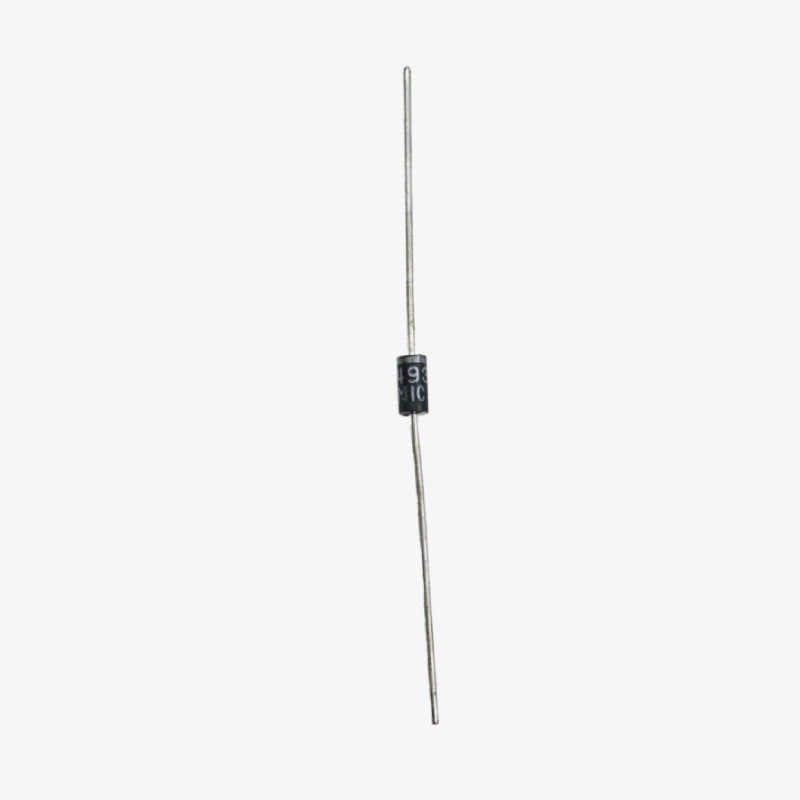

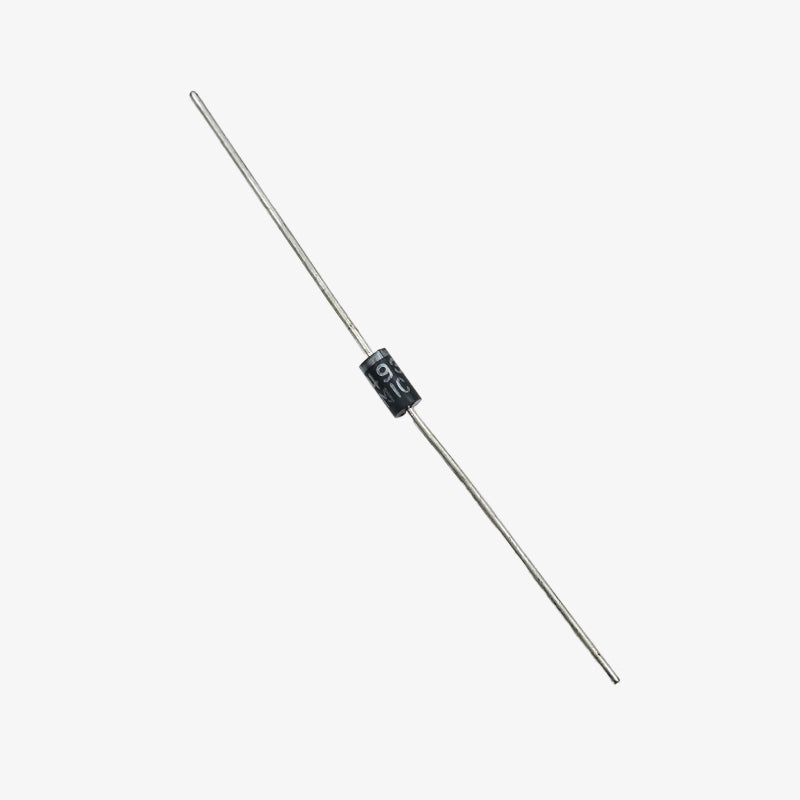

1N4937 Fast Recovery Rectifier Diode 1A

The 1N4937 Fast Recovery Rectifier Diode 1A is designed for efficient AC to DC rectification in fast-switching applications. Its molded DO-41 body ensures reliable operation under high-speed load conditions. Ideal for power supplies, inverters, converters, and freewheeling circuits.

Features:

1. High-speed switching for improved efficiency

2. Low forward voltage drop for minimal energy loss

3. Excellent surge current tolerance

4. Molded epoxy body with UL 94V-0 flammability rating

Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 600 V

• Maximum RMS Voltage (VRMS): 420 V

• Maximum DC Blocking Voltage (VDC): 600 V

• Average Forward Rectified Current (IF(AV)): 1.0 A

• Peak Forward Surge Current (IFSM): 30 A

• Maximum Instantaneous Forward Voltage (VF) at 1A: 1.2 V

• Maximum DC Reverse Current (IR) at 25°C: 5 µA

• Maximum DC Reverse Current (IR) at 100°C: 100 µA

• Maximum Reverse Recovery Time (trr): 200 ns

• Typical Junction Capacitance (CJ): 12 pF

• Operating Temperature Range (TJ, TSTG): -50°C to +150°C


Package Includes:

1 × 1N4937 Fast Recovery Rectifier Diode 1A
