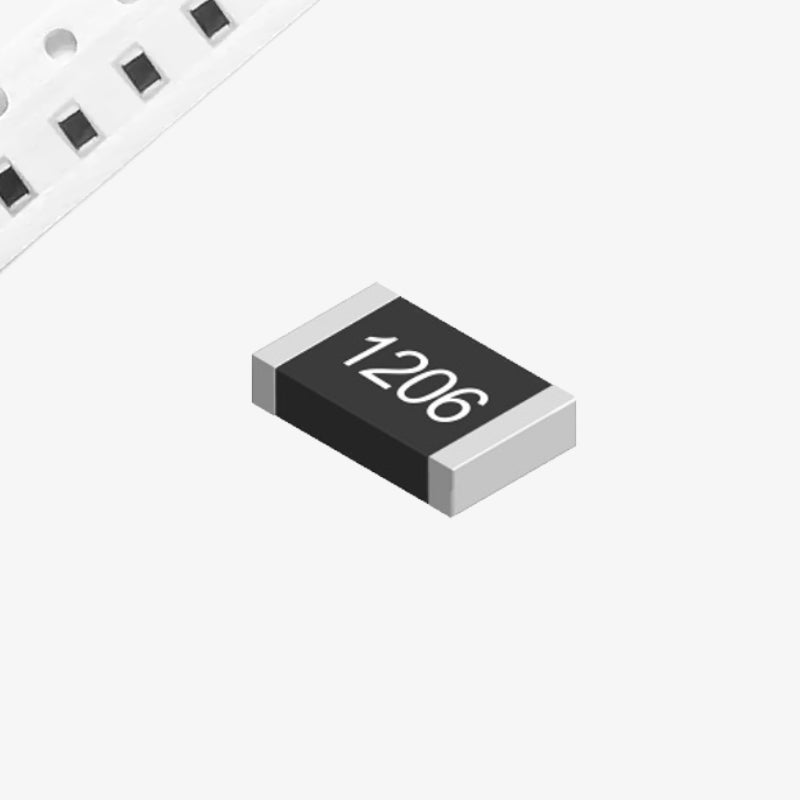

200k Ohm 1206 Package 1/4W SMD Resistor 5% Tolerance (Pack of 20 Pieces)

The 200kΩ 1206 SMD resistor is a high-quality surface-mount device designed to provide stable resistance in compact electronic circuits. With its 1206 package size (3.2mm × 1.6mm), it is suitable for automated PCB assembly and ensures reliable performance in both consumer and industrial applications. This resistor offers high stability, low noise, and excellent long-term reliability, making it ideal for voltage dividers, current limiting, signal conditioning, and general-purpose electronic circuits.

Features of 200kΩ 1206 SMD Resistor:

1. Resistance value: 200kΩ (200,000 ohms)
2. Standard 1206 SMD package (3.2mm × 1.6mm)
3. Compact size for space-saving PCB layouts
4. High reliability and stable performance
5. Suitable for automated pick-and-place assembly
6. Low noise and high stability over temperature range
7. Widely used in consumer electronics, instrumentation, and control systems
8. RoHS compliant

Specifications of 200kΩ 1206 SMD Resistor:

• Model: 200kΩ 1206
• Type: SMD Resistor
• Resistance: 200kΩ (±5% tolerance)
• Power Rating: 0.25W (1/4W) typical for 1206 package
• Temperature Coefficient: ±100 ppm/°C (typical)
• Package Size: 1206 (3.2mm × 1.6mm)
• Operating Temperature Range: -55°C to +155°C

Package Includes:

1 × 200k Ohm 1206 Package 1/4W SMD Resistor 5% Tolerance (Pack of 20 Pieces)
