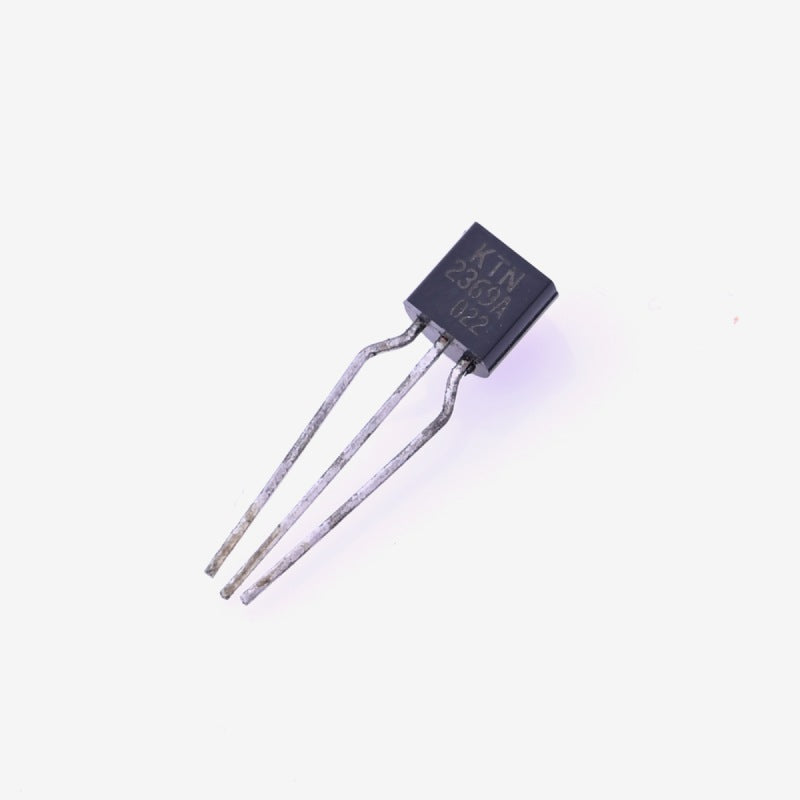

2N2369 NPN Switching Transistor

The 2N2369 is a general purpose NPN transistor that has a high switching frequency of 500MHz. Because if this they are commonly used in pulse generator circuits. Apart from this they are also used for common switching and amplifier circuits. The specifications of the 2N2369 transistor are:

• Collector-Emitter Voltage: 15 V

• Collector-Base Voltage: 40 V

• Emitter-Base Voltage: 5 V

• Collector Current: 0.2 A
• DC Current Gain (hfe): 40
• Collector Dissipation: 0.36 W
• Transition Frequency: 500 MHz
• Operating and Storage Junction Temperature Range: -65 to +200 °C
• Package: TO-18

Package Contents:

1 x 2N2369 NPN Switching Transistor
