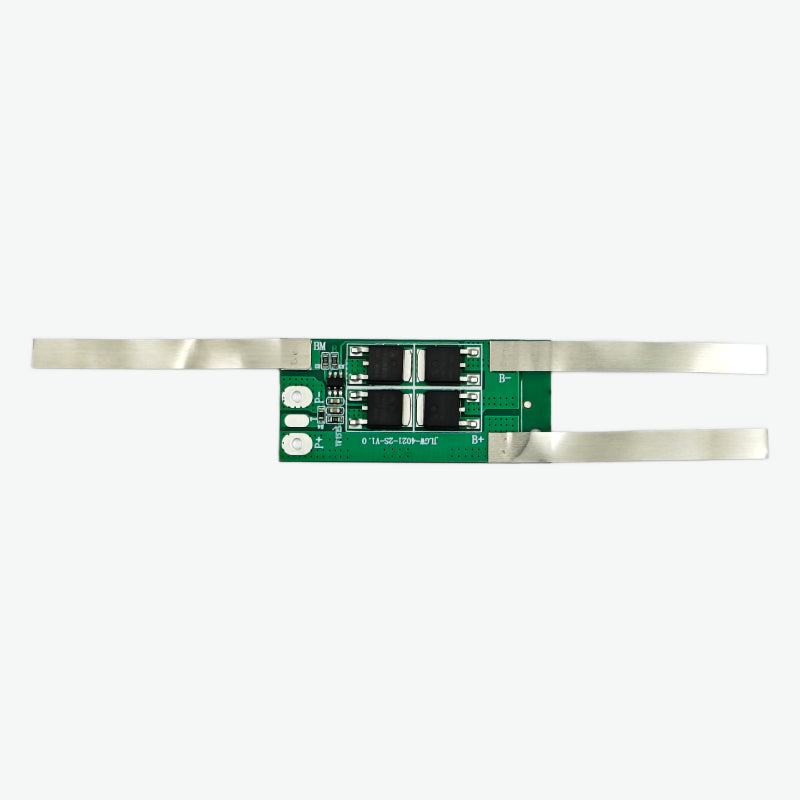

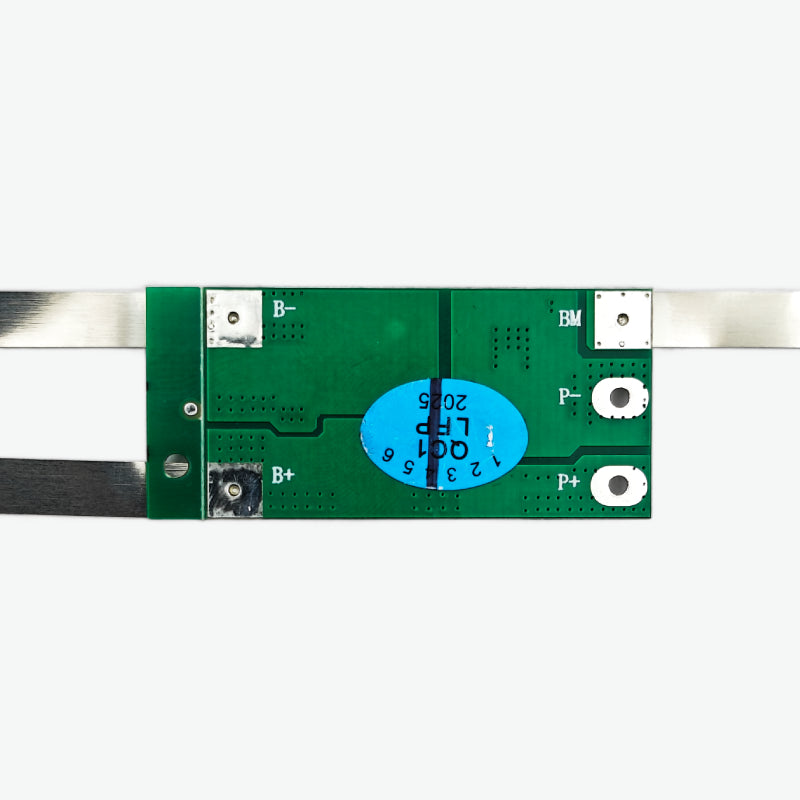

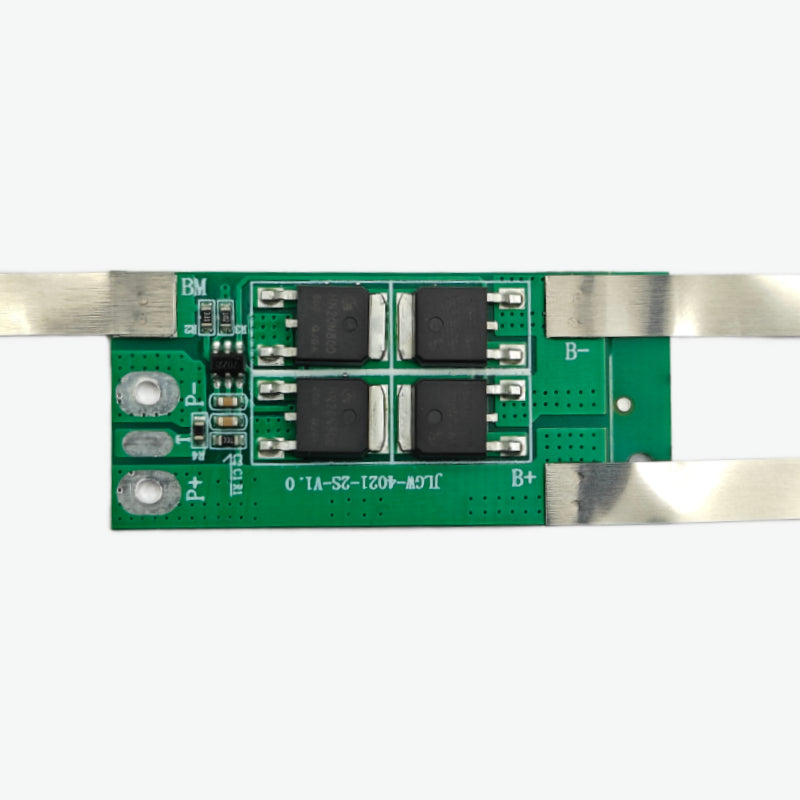

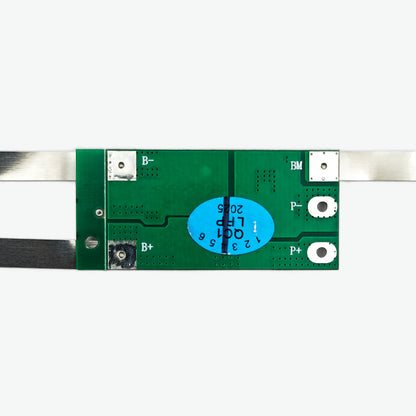

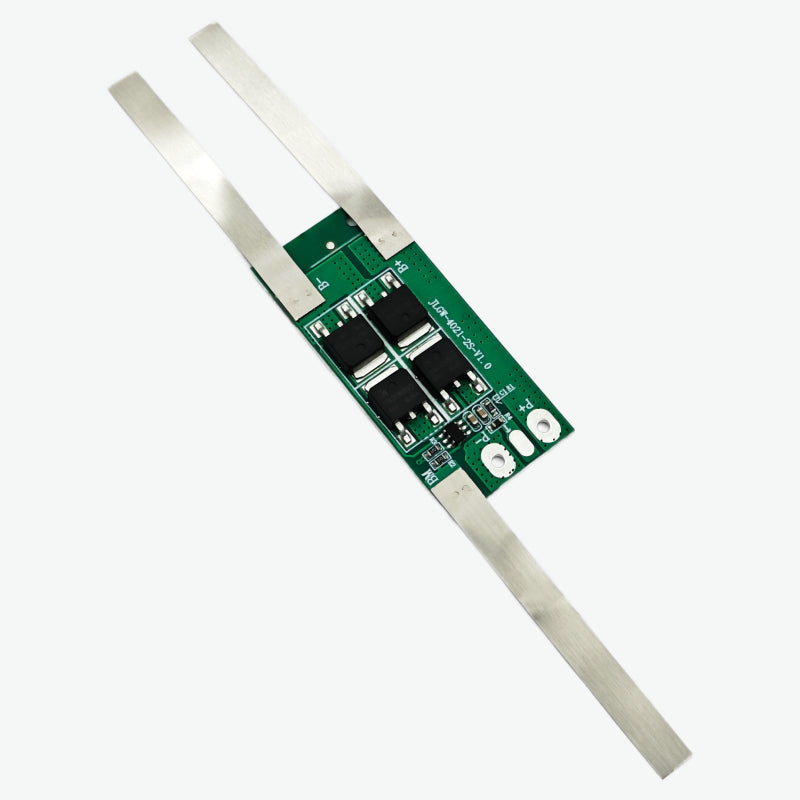

2S 10A LiFePO4 Battery Protection BMS Module with Nickel Strip for 3.2V Cells

The 2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePOâ‚?cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePOâ‚?battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePOâ‚?chemistry.

Features of 2S 10A LiFePOâ‚?Battery Protection BMS Module:

1. Designed for 2S (6.4V nominal) LiFePOâ‚?battery packs
2. Continuous discharge current of up to 10A
3. Overcharge and over-discharge protection tailored for LiFePOâ‚?chemistry
4. Short circuit and overcurrent protection
5. Nickel strips provided for easy battery assembly
6. Lightweight and compact for embedded power systems

Specifications of 2S 10A LiFePOâ‚?Battery Protection BMS Module:

• Battery Type: LiFePOâ‚?(Lithium Iron Phosphate)
• Configuration: 2S (6.4V nominal)
• Continuous Discharge Current: 10A
• Charging Voltage: 7.3V
• Overcharge Detection Voltage: ~3.65V ± 0.05V
• Over-discharge Detection Voltage: ~2.0V ± 0.1V
• Short Circuit Protection: Yes
• Operating Temperature: -20°C to +60°C

Package Includes:

1 × 2S 10A LiFePOâ‚?BMS Module
