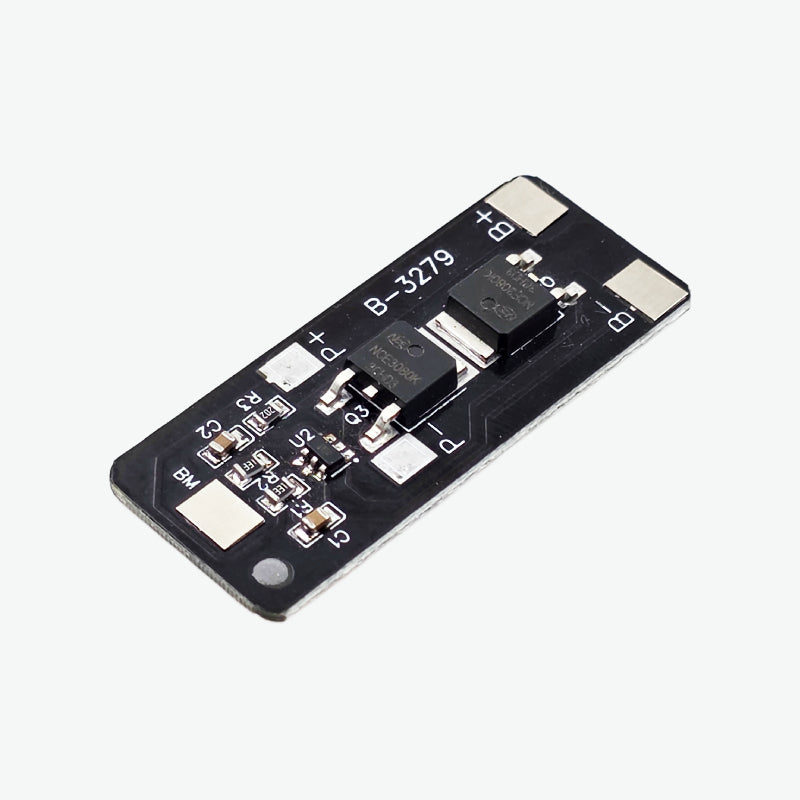

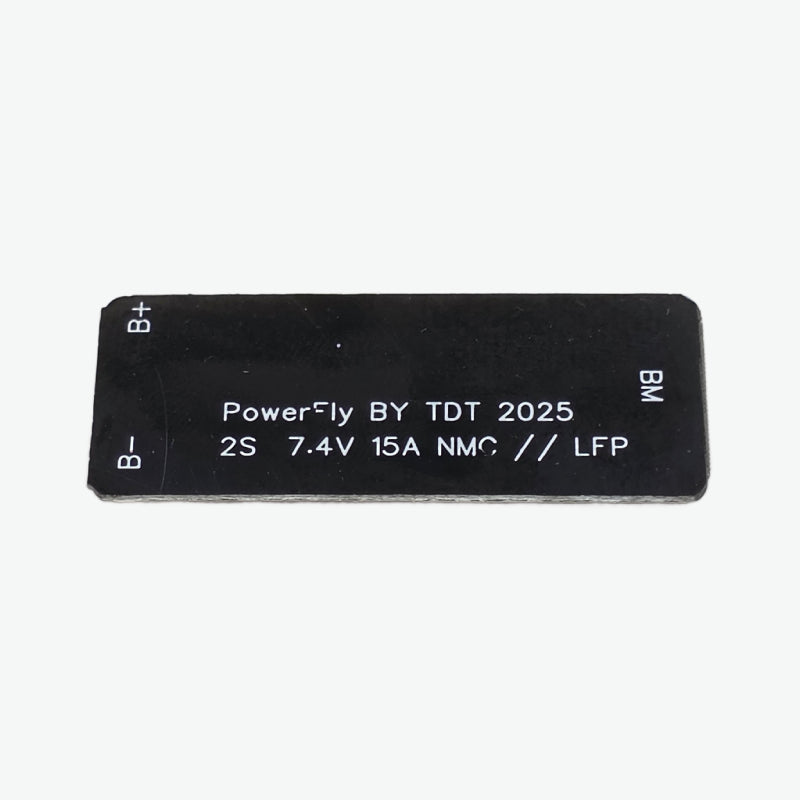

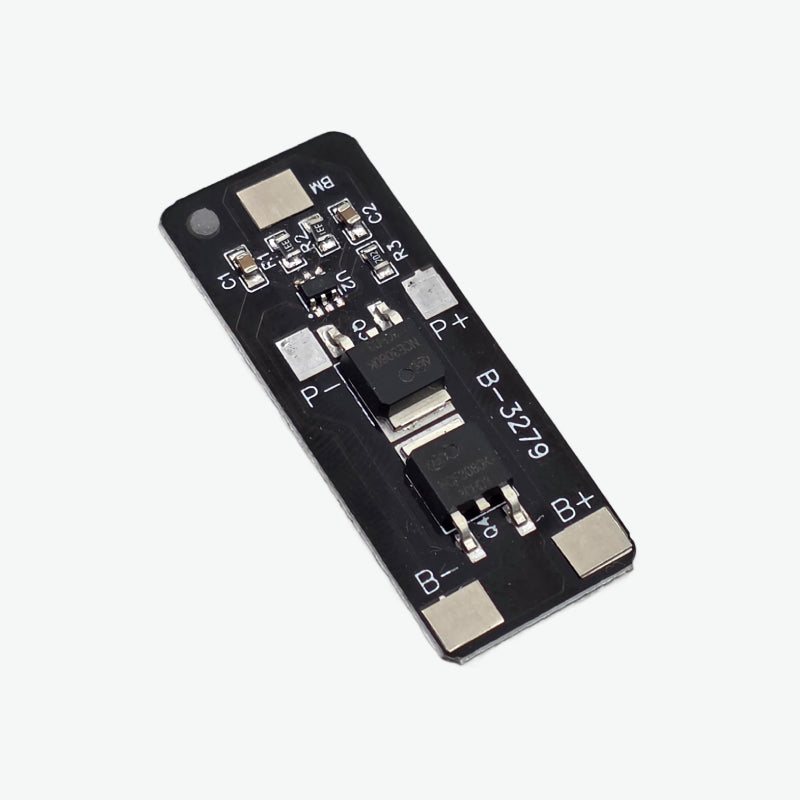

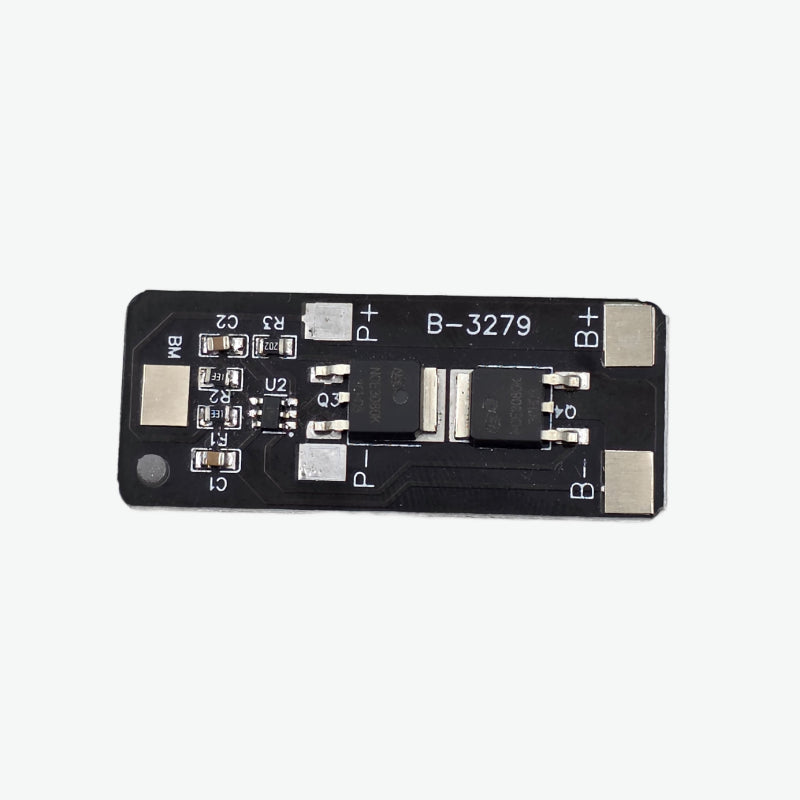

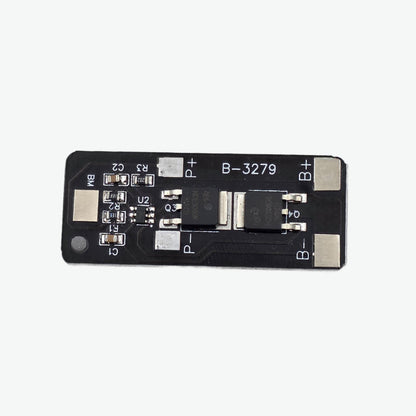

2S 15A 7.4V NMC Battery Protection Board BMS Module

The 2S 7.4V 15A NMC Battery Protection BMS Module is a compact and reliable circuit designed for 2-cell lithium battery packs. It provides safe charging and discharging with built-in protection against overcharge, over-discharge, overcurrent, and short circuits. Ideal for robotics, DIY power banks, and energy storage systems, ensuring efficient performance and extended battery life.

Features:

1. Battery Configuration: Supports 2S (7.4V nominal, 3.7V per cell) Li-ion/NMC battery packs.

2. Overcharge Protection: Prevents battery damage by stopping charging when voltage exceeds limits.

3. Over-discharge Protection: Cuts off discharge when voltage drops too low to maintain battery health.

4. Overcurrent & Short Circuit Protection: Detects high current faults and restores operation automatically once safe.

5. Cooling Support: Heatsink recommended for continuous 15A operation.

6. Effective Life: Designed for over 50,000 hours of reliable use.

Specifications:

• Model: 2S 7.4V 15A NMC  BMS

• Battery Configuration: 2S (7.4V nominal)

• Battery Type: NMC / Li-ion

• Rated Current: 15A

• Continuous Discharge Current: 10A - 12A

• Peak Discharge Current: Up to 20A

• Charge Voltage (Pack): 8.4V (4.2V per cell)

• Discharge Cut-off Voltage: 5.8V (2.9V per cell)

• Operating Temperature: -40°C to +90°C

• Storage Temperature: -40°C to +85°C

• PCB Dimensions: 41 mm × 20 mm × 0.1 mm

• Cooling Requirement: Passive with heatsink (>12A operation)

• Weight: 2.5 g â€?3.0 g

Package Includes:

1 x 2S 15A 7.4V NMC Battery Protection Board BMS Module
