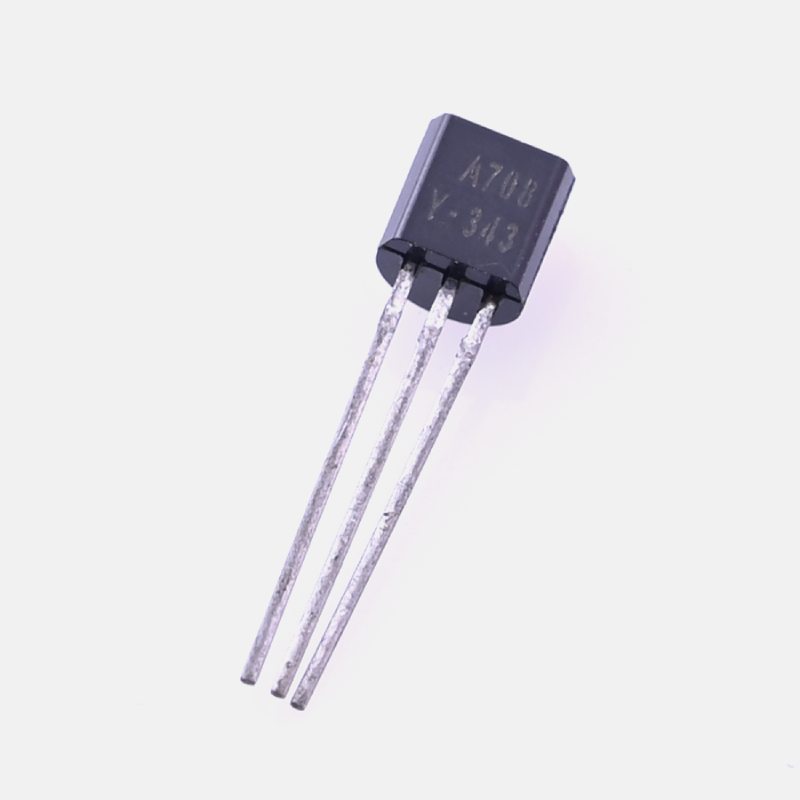

2SA1266 - PNP General Purpose Transistor

2SA1266 is a PNP transistor with a high current gain of upto 400. It is commonly used in Amplifier designs and also in general purpose switching circuits. The specification of the 2SA1266 transistor is give below:

• Collector-Emitter Voltage: 50 V
• Collector-Base Voltage: 50 V
• Emitter-Base Voltage: 5 V
• Collector Current: -0.15 A
• Collector Dissipation: 0.4 W
• DC Current Gain (h_fe): 70 to 400
• Transition Frequency: 80 MHz
• Noise Figure: 1 dB
• Operating and Storage Junction Temperature Range: -55 to +125 °C
• Package: TO-92

Package Includes:

1 x 2SA1266 - PNP General Purpose Transistor
