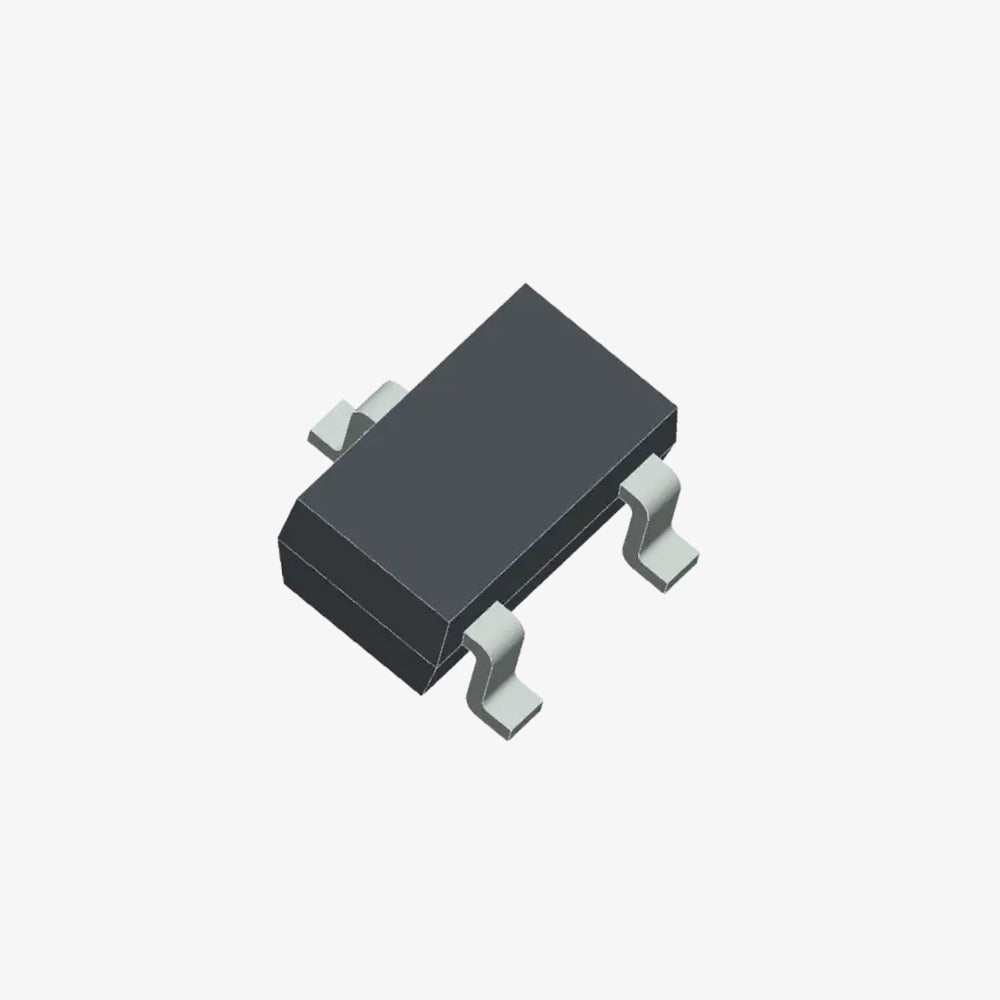

2SC1623 - NPN Bipolar Transistor 50V 100mA 3Pin SOT-23 SMD Package

The 2SC1623 is an NPN bipolar junction (BJT) designed for general-purpose amplification and switching applications. It is housed in a small surface-mount device (SMD) package, specifically the SOT-23, which makes it suitable for compact and high-density circuit designs.

Key Features:

1. Maximum Voltage Rating (VCEO): 50V
2. Maximum Current Rating (IC): 100mA
3. Package Type: SOT-23 (3-pin surface-mount package)
4. Configuration: NPN type
5. High Current Gain: This transistor offers a high current gain, which is beneficial for amplification purposes.

Electrical Characteristics:

• Collector-Emitter Voltage (VCEO): 50V
• Collector-Base Voltage (VCBO): 60V
• Emitter-Base Voltage (VEBO): 5V
• Collector Current (IC): 100mA
• Power Dissipation (Ptot): Typically around 150mW
• Current Gain (hFE): Typically ranges from 200 to 600

Package and Pin Configuration:

The 2SC1623 is housed in a small SOT-23 package with three pins:

• Pin 1: Base (B)
• Pin 2: Emitter (E)
• Pin 3: Collector (C)

Package Includes:

1 x 2SC1623 - NPN Bipolar Transistor 50V 100mA 3Pin SOT-23 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
