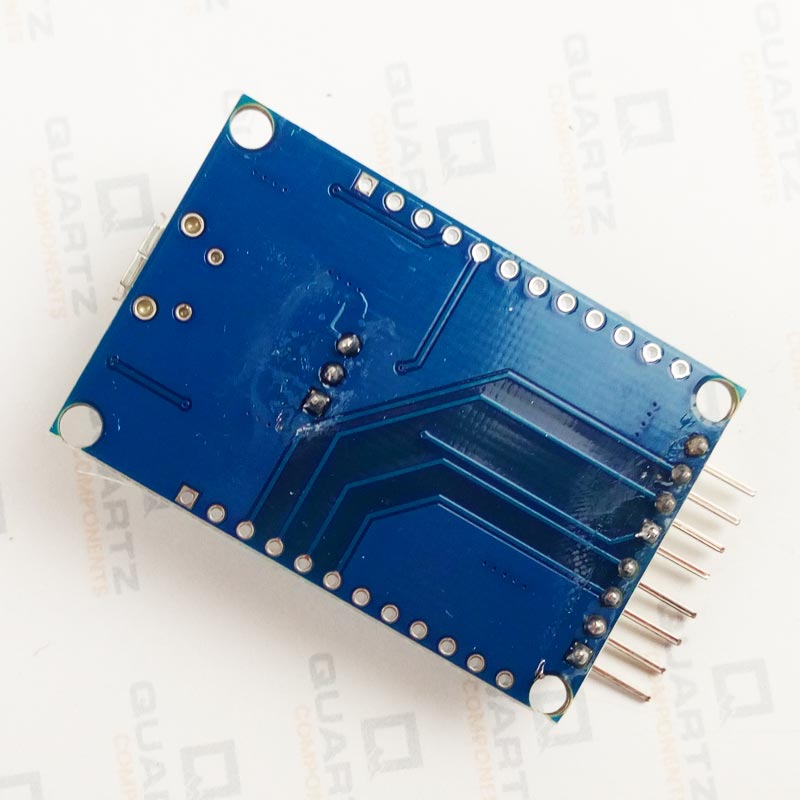

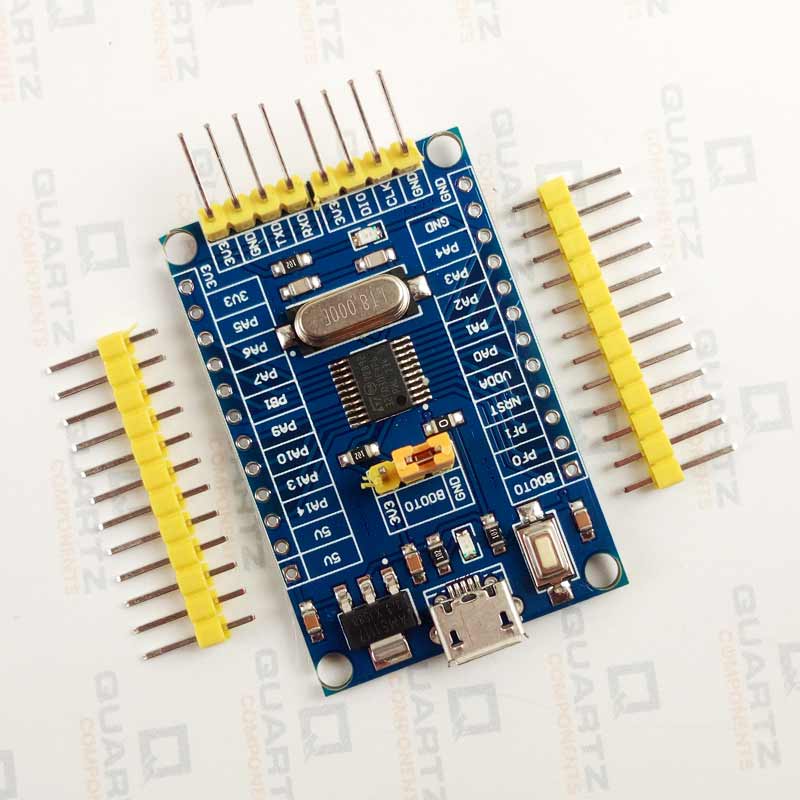

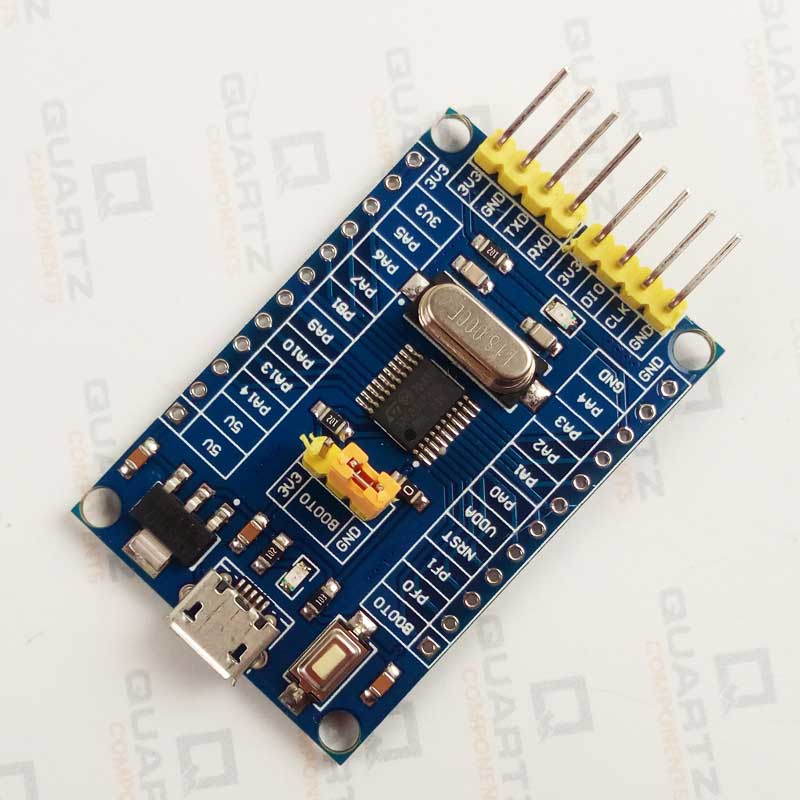

STM32F030F4P6 Development Board - CORTEX-M0 Core 32bit

This is a Minimum System Board which is a STM32F030F4P6 Microcontroller developed by ST Microelectronics. It has a 32 bit Cortex-M0 CPU core powering this module. It is operating at 48MHz CPU frequency. It can act as a stand alone system as it has Micro USB port to connect and power the device from the PC you are using. It also has an external crystal to communicate with external peripheral devices. If you want to use ARM Cortex processors for its processing power and do not want to spend high amount for it then it is a right module for you as it has ISP/SWD programming and debugging interface for easily program and debug the development board. It also has high speed memories onboard to further decrease the processing time.

STM32F030F4P6 Development Board Specifications

• Kernel: Cortex-M0(32-bit)
• Storage resources: 16K Flash, 4KB SRAM
• External crystal: 8MHz
• Debug download interface: SWD/ISP
• Board power supply: Micro-USB(DC-5V)
• 12 bit ADC onboard
• 4 to 3.6V analog supply

Product Description

This board can be used like any other development board you use and one main advantage of this board is that the ISP/SWD interface is readily available to easily program and debug the processor on the go.

Package Contents

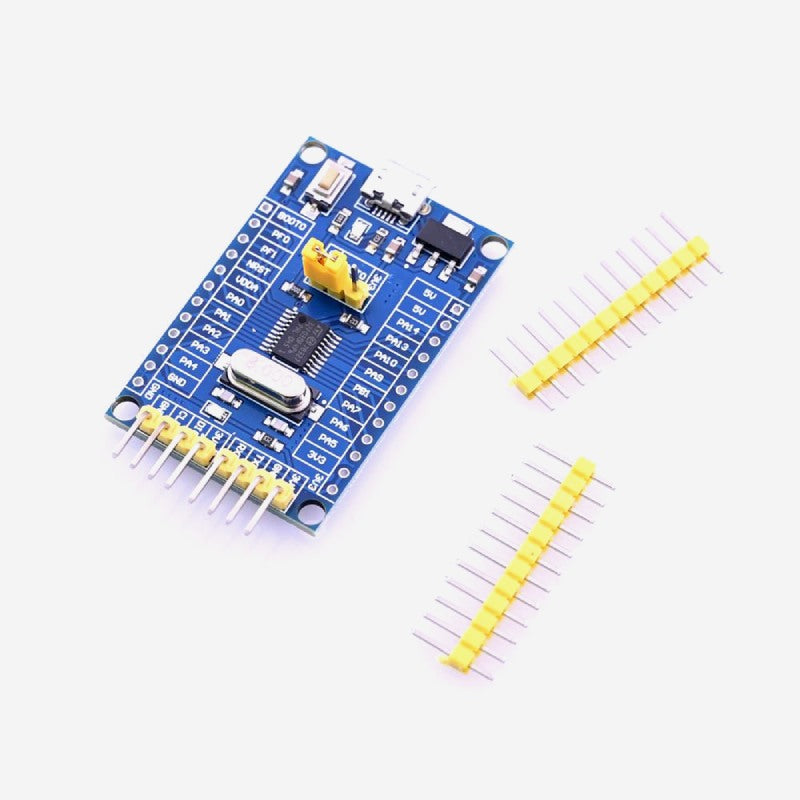

1×48MHz STM32F030F4P6 Development Board
