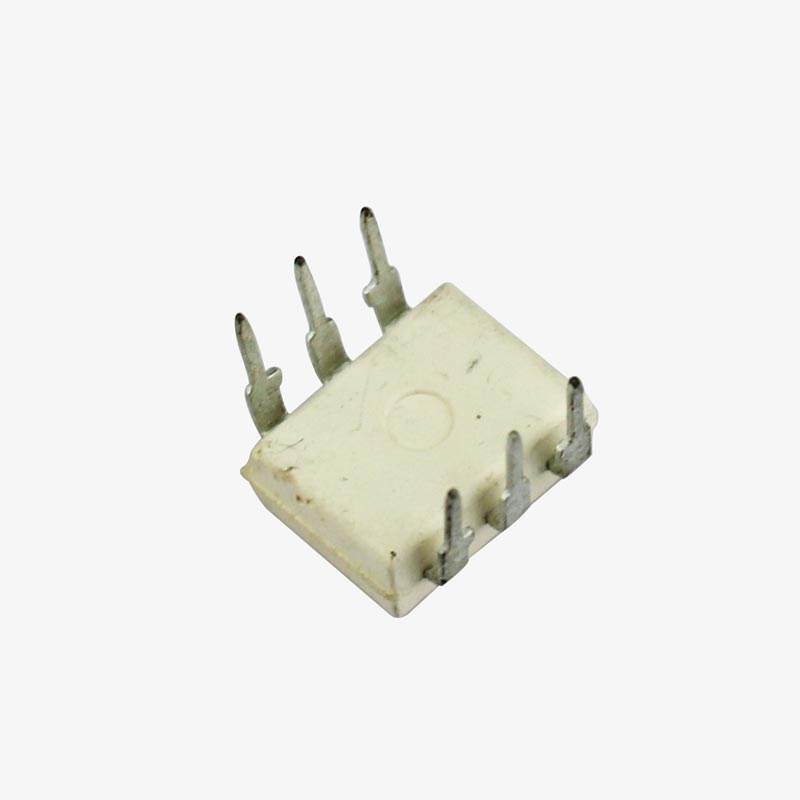

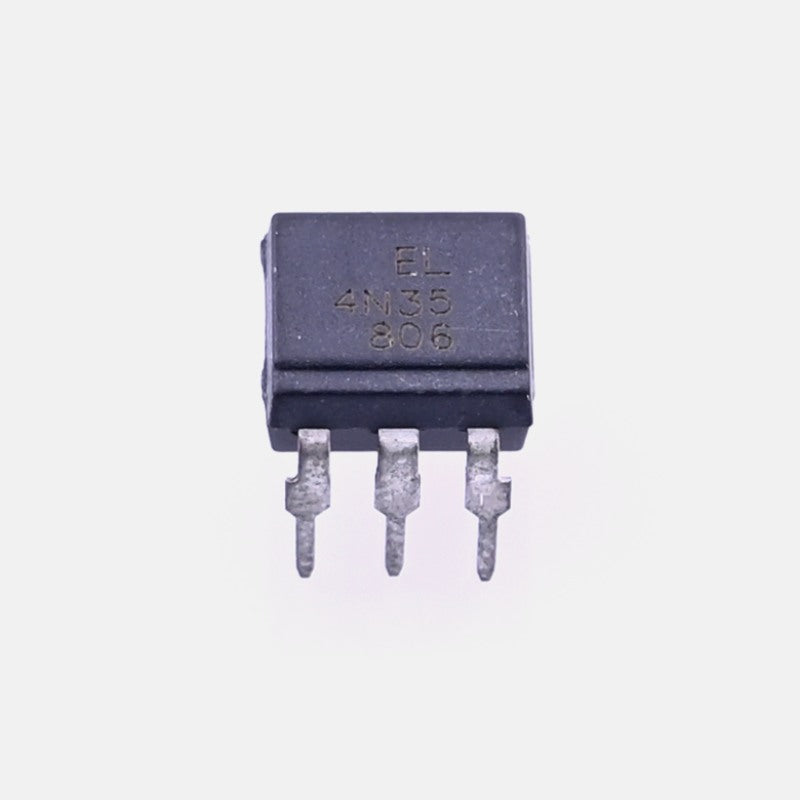

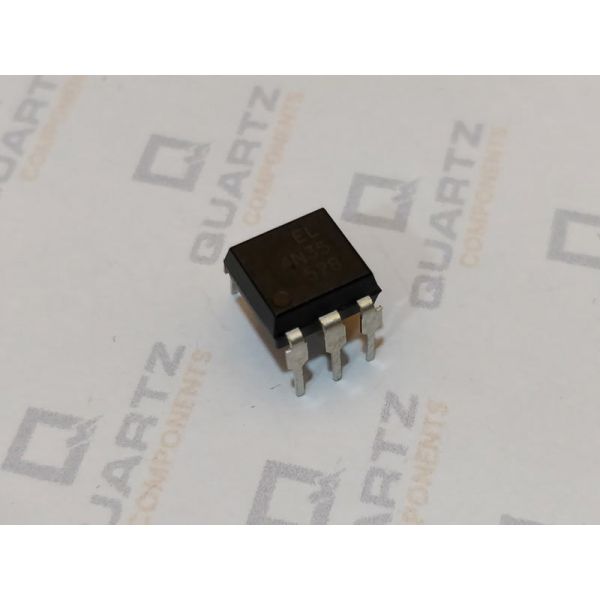

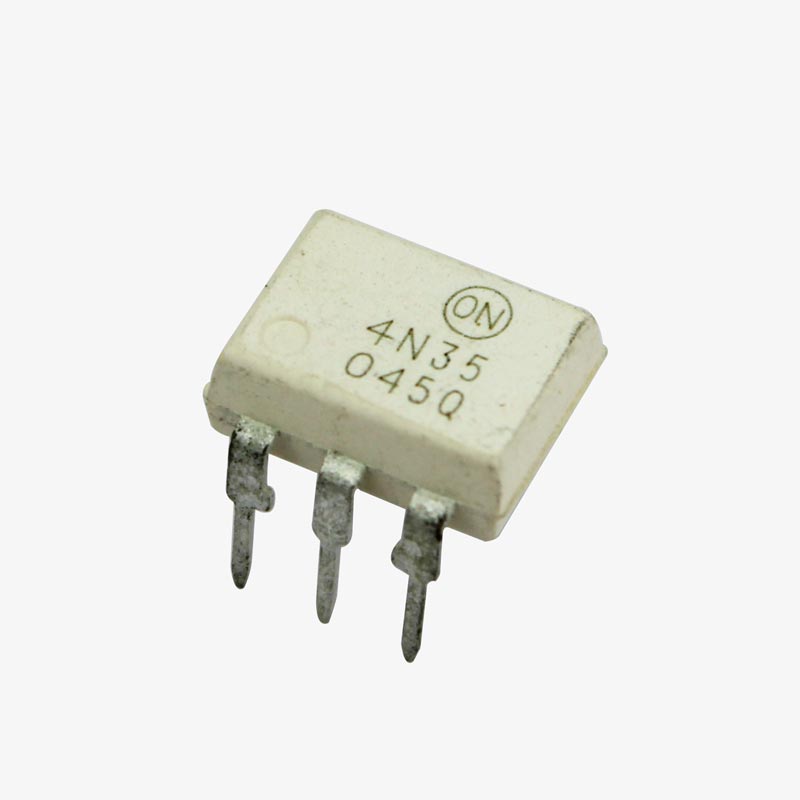

4N35 Optocoupler/Phototransistor IC

Phototransistors means they are transistors which are controlled by a beam of light provided by an IR LED so construction wise this IC has an IR LED which when powered make the transistor in the IC conduct. This IC can be used as a fast and isolating substitute for the Electromechanical Relays which comes very handy when you are trying to isolate a noisy signal from your digital IC design. You can also use this IC as a logical isolated Buffer with proper voltage supplies. One part of the internal circuit is connected to the IR circuit and other part of the circuit is connected to the transistor thereby isolating both parts of the circuits. Input Diode Forward Voltage is 1.25V and Collector Emitter Voltage is 30V and transistor Hfe is 300.

Specifications

• Input Diode Forward Voltage: 1.25V
• Collector-Emitter Voltage: 30V
• On-State Collector Current: 5mA
• Transistor HFE: 300
• Rise Time: 5us
• Fall Time: 5us
• Available as 6-pin PDIP package

Product Description

Package Contents

1× 4N35 Optocoupler IC
