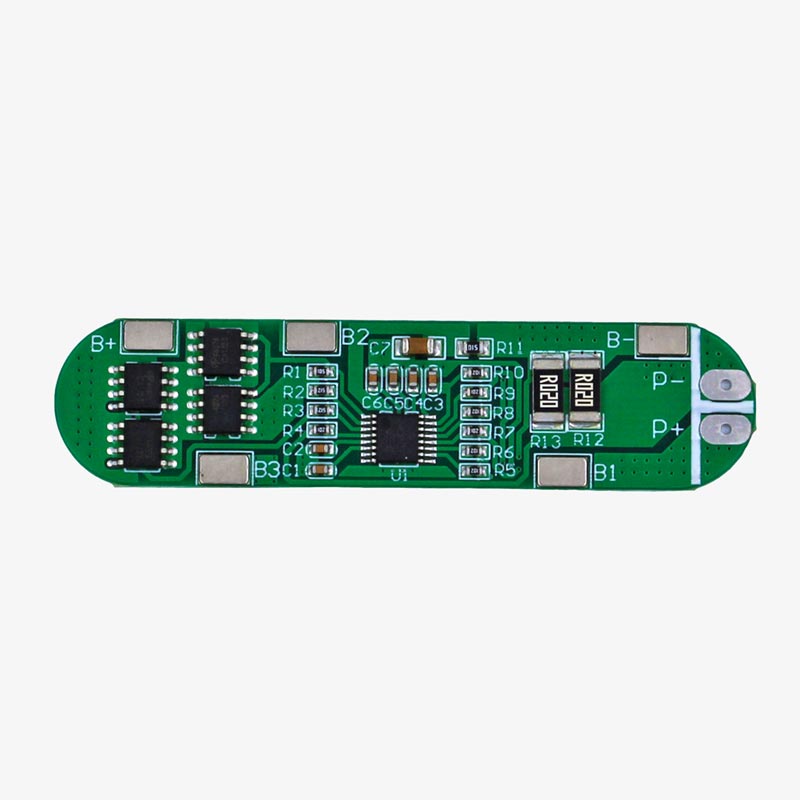

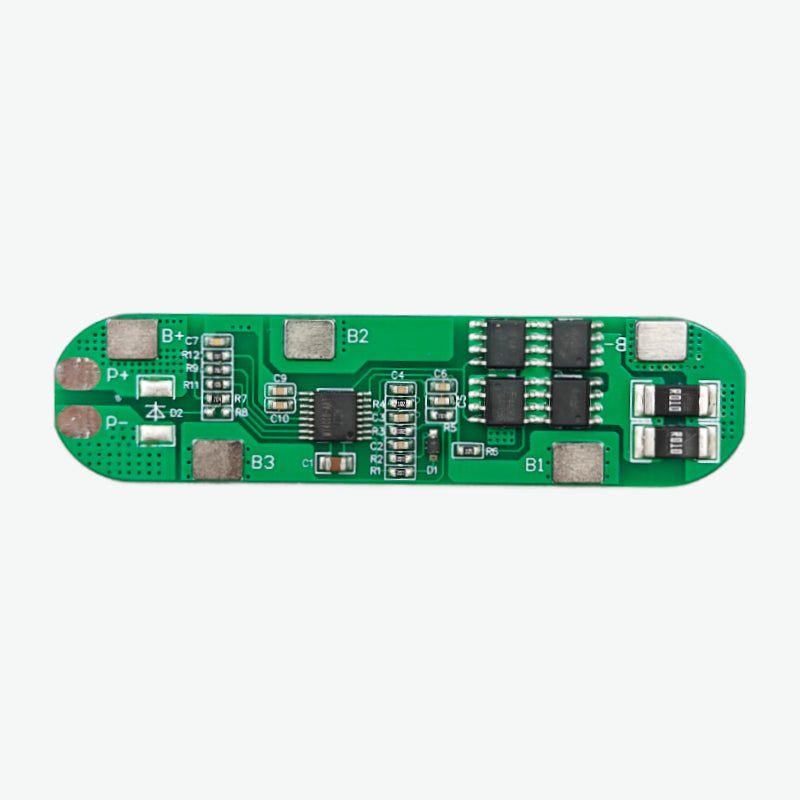

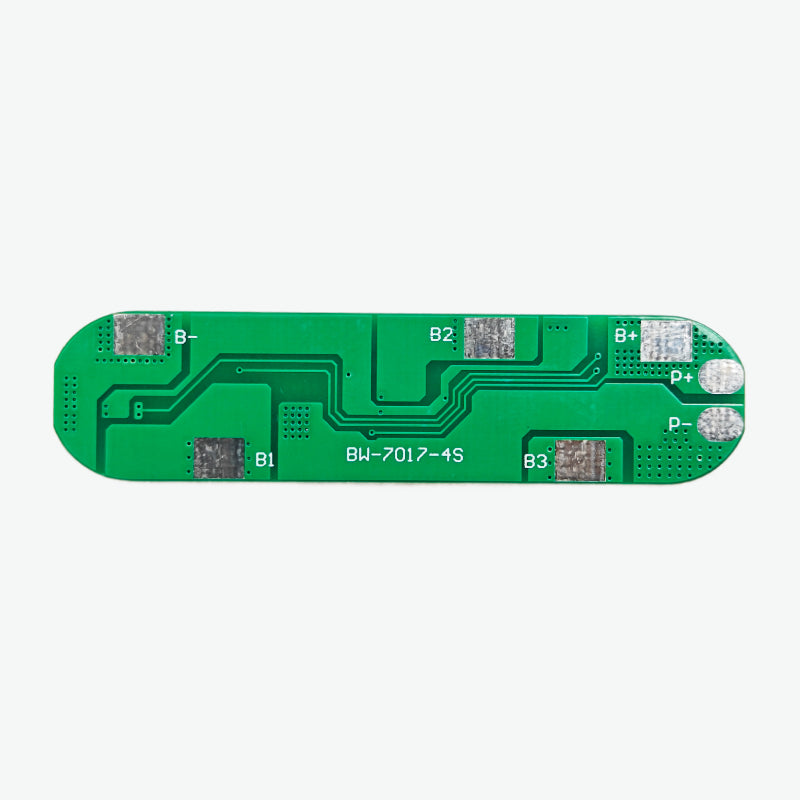

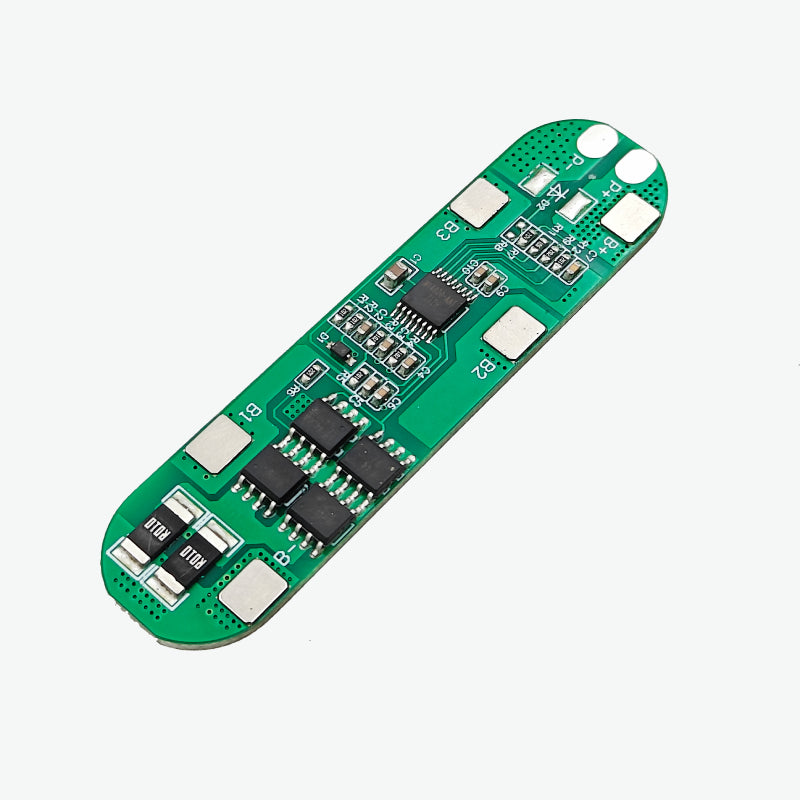

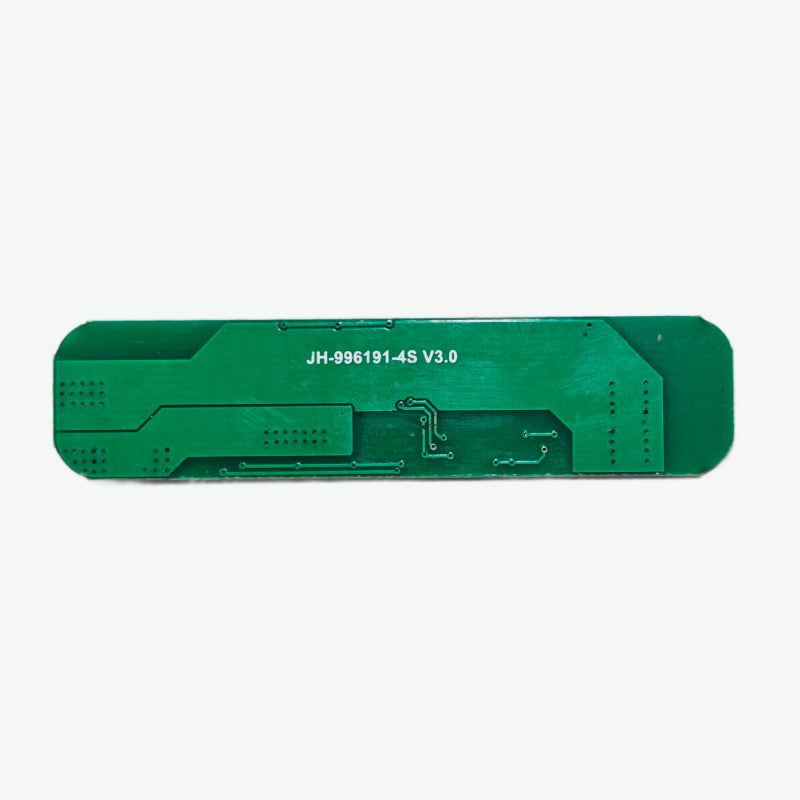

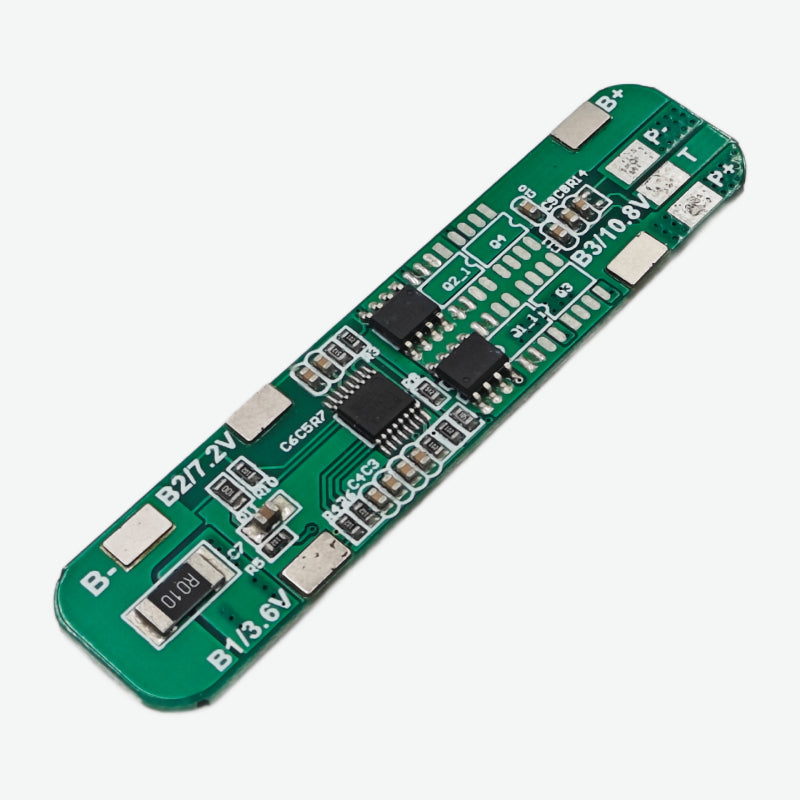

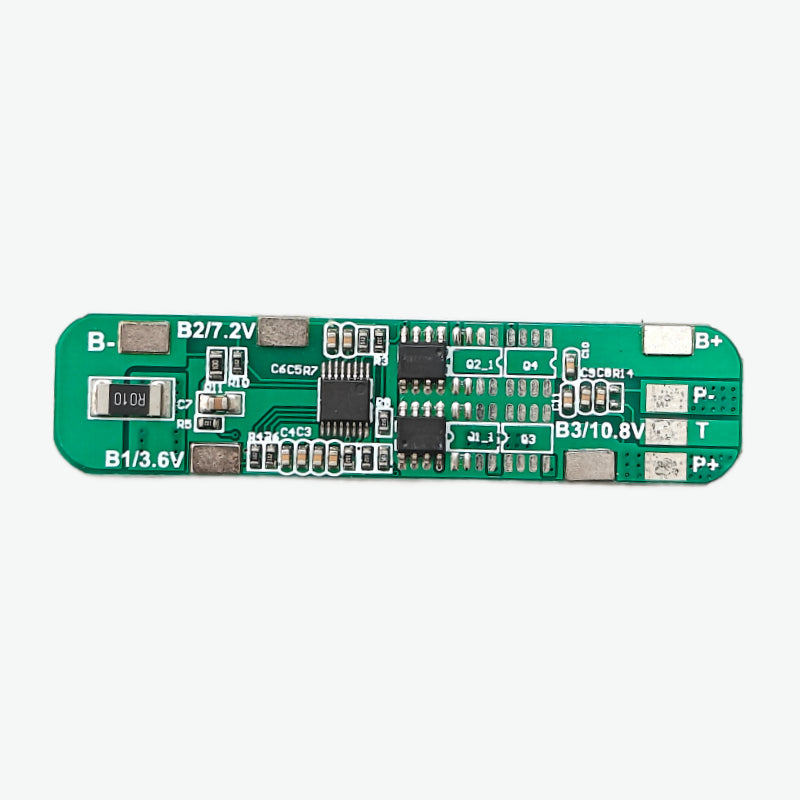

 This is a BMS with 10A Current and a 16.8V voltage rating to charge 4 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.
 Specifications:

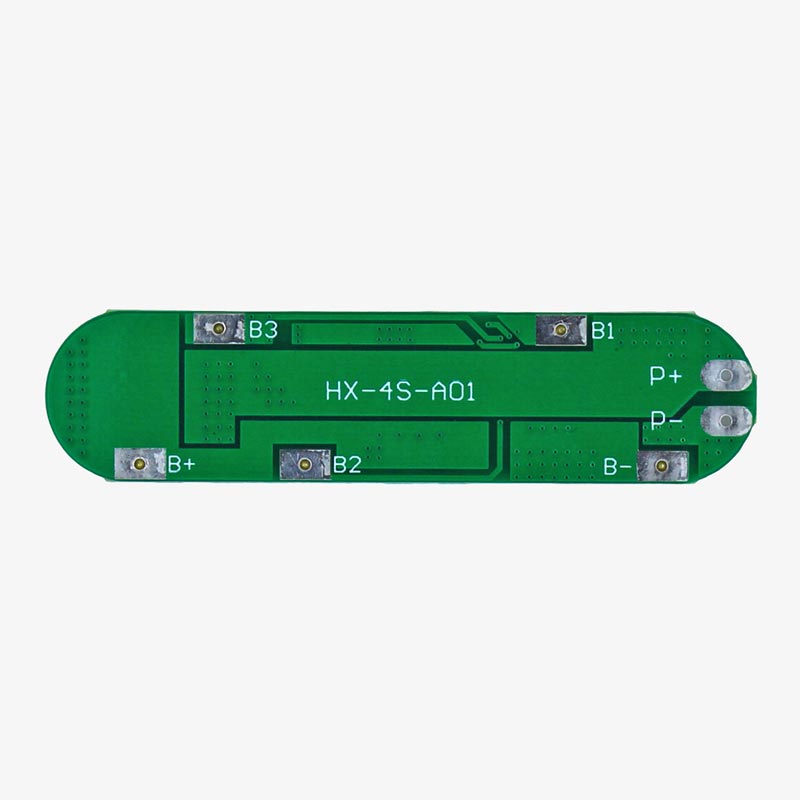

Model : HX-4S-A01
Size : 72mm*17mm*3mm
Upper limit working current : 4A~6A
Upper limit instantaneous current : 10A~13A
Static Current :Â Less than 30uA
Overcharge Voltage Range : 4.25v~4.35±0.05v
Overdischarge voltage range : 2.3V~3.0v±0.05v
Working temperature : -40~+60â„?/li>
 Package Includes:

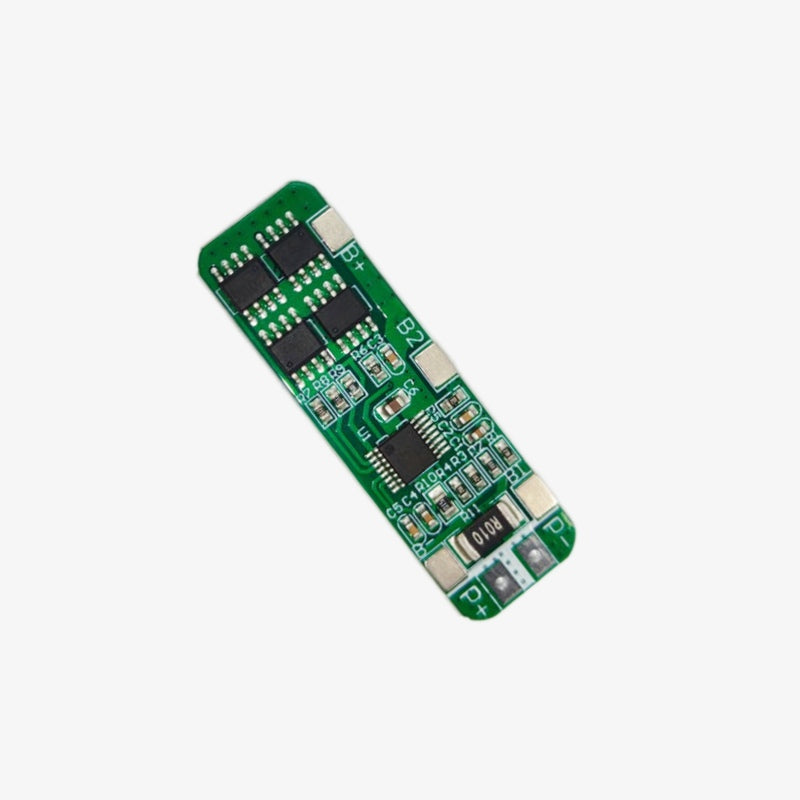

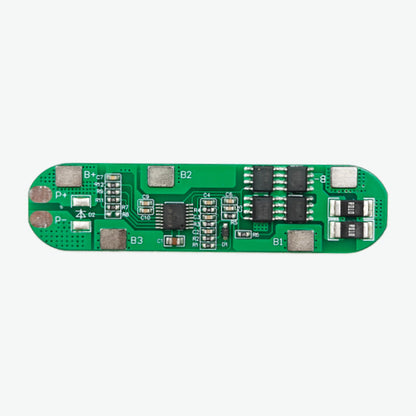

 1 x 4S 10A Li-ion Battery Protection BMS Board for 3.7V NMC Cells
