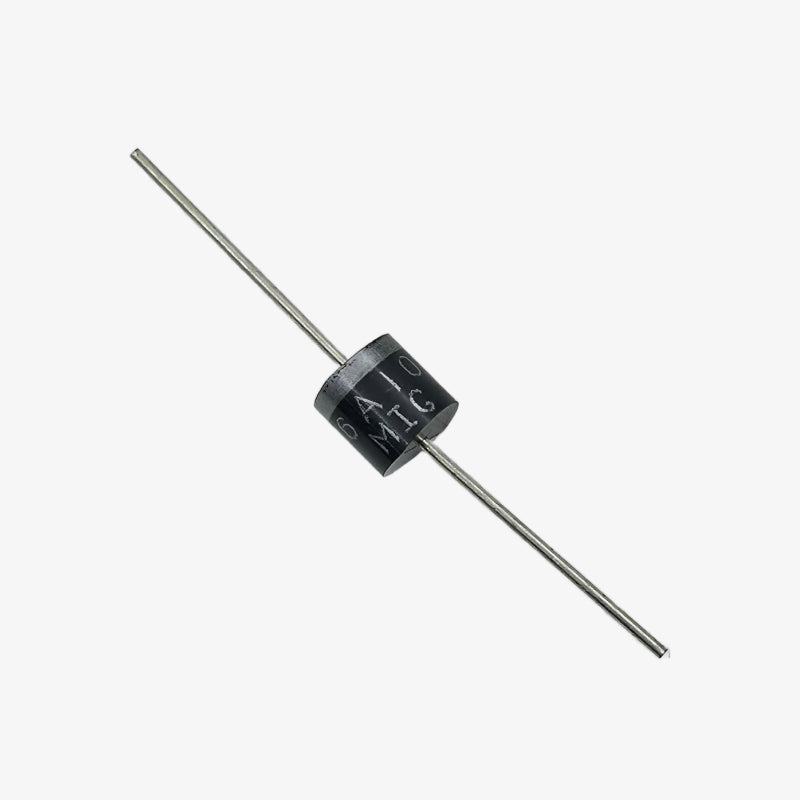

6A10 General Purpose Silicon Rectifier Diode 6A
6A10 General Purpose Silicon Rectifier Diode 6A
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
The 6A10 General Purpose Silicon Rectifier Diode 6A is built for high-capacity AC to DC rectification in demanding power circuits. Its robust R-6 molded package ensures strong thermal endurance during continuous operation. Ideal for adapters, SMPS stages, chargers, and general high-current rectifier applications.
Features:
- Handles heavy 6A rectification for high-load power conversion
- Maintains efficient conduction with low forward voltage characteristics
- R-6 molded body offers superior mechanical and thermal durability
- Manufactured with flame-retardant 94V-0 materials for enhanced safety
Specifications:
- Maximum Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage (VDC): 1000 V
- Average Forward Rectified Current (IAV): 6.0 A
- Peak Forward Surge Current (IFSM): 400 A
- Instantaneous Forward Voltage at 6A (VF): 0.90 V
- Reverse Current at 25°C (IR): 10 µA
- Reverse Current at 100°C (IR): 100 µA
- Moisture Sensitivity Level: MSL 1
Package Includes:
1 × 6A10 General Purpose Silicon Rectifier Diode 6A
