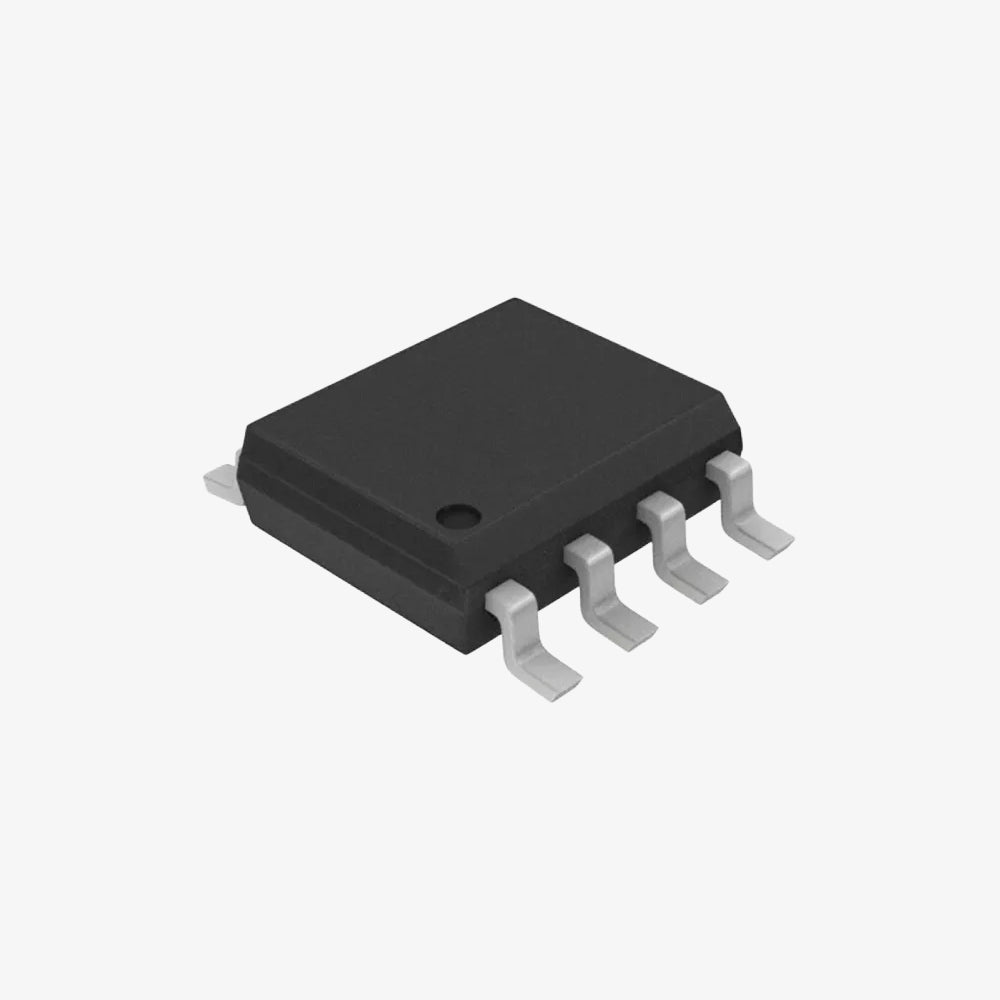

741 General Purpose Op-Amp IC - SOIC-8 SMD Package

The UA741 is a general-purpose operational amplifier (op-amp) IC designed for a wide range of analog applications. It is housed in a compact SOIC-8 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: General-Purpose Operational Amplifier
• Package: SOIC-8 (Small Outline Integrated Circuit)
• Operating Voltage: ±5V to ±18V
• Input Offset Voltage: Typically 2mV
• Input Bias Current: Typically 80nA
• Gain Bandwidth Product: 1MHz
• Slew Rate: 0.5V/µs
• Low Noise: 20nV/√Hz at 1kHz
• Short-Circuit Protection: Internal protection against short circuits
• Wide Common-Mode and Differential Voltage Ranges

Applications:

• Signal Amplification: Ideal for amplifying weak signals in a variety of analog circuits.
• Active Filters: Suitable for designing low-pass, high-pass, band-pass, and band-stop filters.
• Oscillators: Can be used in oscillator circuits to generate sine, square, and triangle waves.
• Integrators and Differentiators: Useful in analog computing applications.
• Comparators: Can be configured as a comparator for comparing voltages.
• Voltage Followers: Used in buffer applications to provide high input impedance and low output impedance.

Pin Configuration:

• Pin 1 (Offset Null): Offset null adjustment pin
• Pin 2 (Inverting Input): Inverting input terminal of the op-amp
• Pin 3 (Non-Inverting Input): Non-inverting input terminal of the op-amp
• Pin 4 (V-): Negative power supply terminal
• Pin 5 (Offset Null): Offset null adjustment pin
• Pin 6 (Output): Output terminal of the op-amp
• Pin 7 (V+): Positive power supply terminal
• Pin 8 (NC): No connection

Electrical Characteristics:

• Supply Voltage (Vcc): ±5V to ±18V
• Input Voltage Range: ±15V
• Output Voltage Swing: ±14V (with ±15V supply)
• Input Offset Voltage: 2mV typical, 6mV max
• Input Bias Current: 80nA typical, 500nA max
• Gain Bandwidth Product: 1MHz
• Slew Rate: 0.5V/µs
• Noise: 20nV/√Hz at 1kHz

Note: Product images are for illustrative purposes only and may differ from the actual product.
