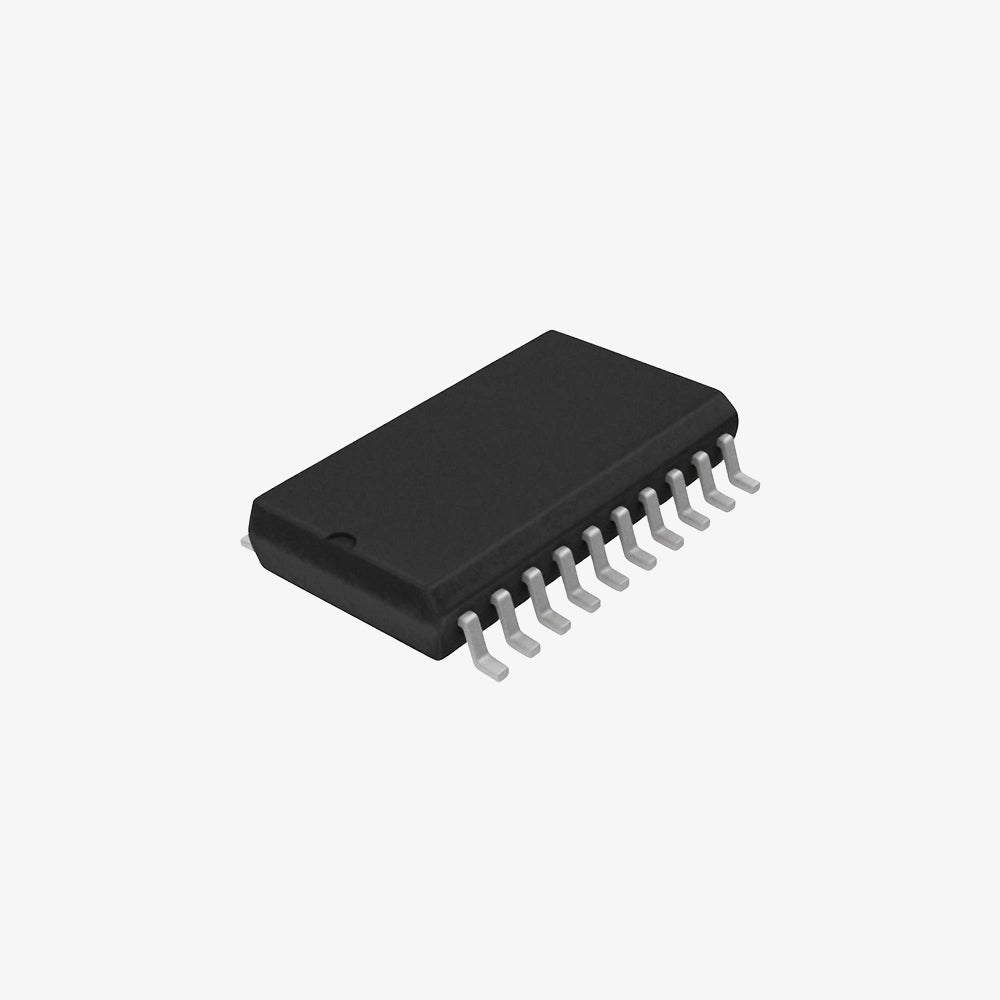

74HC273 Octal D-Type Flip-Flop with Reset IC - SOIC-20 SMD Package
74HC273 Octal D-Type Flip-Flop with Reset IC - SOIC-20 SMD Package
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
The 74HC273 is an octal D-type flip-flop with reset functionality, designed for use in a variety of digital logic and memory applications. It is housed in a SOIC-20 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:
Key Features:
- Type: Octal D-Type Flip-Flop with Reset
- Package: SOIC-20 (Small Outline Integrated Circuit)
- Polarity: Positive-edge triggered
- Logic Family: 74HC (High-Speed CMOS)
- Operating Voltage: 2V to 6V
- Low Power Consumption: CMOS technology for low static power consumption
- Reset Function: Asynchronous reset for clearing the flip-flops
Applications:
- Data Storage: Ideal for temporary data storage and buffering.
- State Machines: Suitable for use in state machine design and control circuits.
- Data Latching: Can be used for data latching in microcontroller interfacing.
- Registers: Useful in creating shift registers and other types of data registers.
- Digital Logic: Commonly used in digital logic circuits for various applications.
Pin Configuration:
- Pin 1 (MR): Master Reset (active low)
- Pin 2 (Q0): Output for flip-flop 0
- Pin 3 (D0): Data input for flip-flop 0
- Pin 4 (D1): Data input for flip-flop 1
- Pin 5 (Q1): Output for flip-flop 1
- Pin 6 (D2): Data input for flip-flop 2
- Pin 7 (Q2): Output for flip-flop 2
- Pin 8 (D3): Data input for flip-flop 3
- Pin 9 (Q3): Output for flip-flop 3
- Pin 10 (GND): Ground
- Pin 11 (Q4): Output for flip-flop 4
- Pin 12 (D4): Data input for flip-flop 4
- Pin 13 (Q5): Output for flip-flop 5
- Pin 14 (D5): Data input for flip-flop 5
- Pin 15 (Q6): Output for flip-flop 6
- Pin 16 (D6): Data input for flip-flop 6
- Pin 17 (Q7): Output for flip-flop 7
- Pin 18 (D7): Data input for flip-flop 7
- Pin 19 (CP): Clock Pulse input (positive edge-triggered)
- Pin 20 (VCC): Supply voltage
Electrical Characteristics:
- Supply Voltage (Vcc): 2V to 6V
- Input Voltage (Vin): 0V to Vcc
- Output Voltage (Vout): 0V to Vcc
- Low Input Current (Iin): ±1μA max
- Low Output Current (Iout): ±25mA max
- Propagation Delay: Typically 15ns at Vcc = 5V
Note: Product images are for illustrative purposes only and may differ from the actual product.
