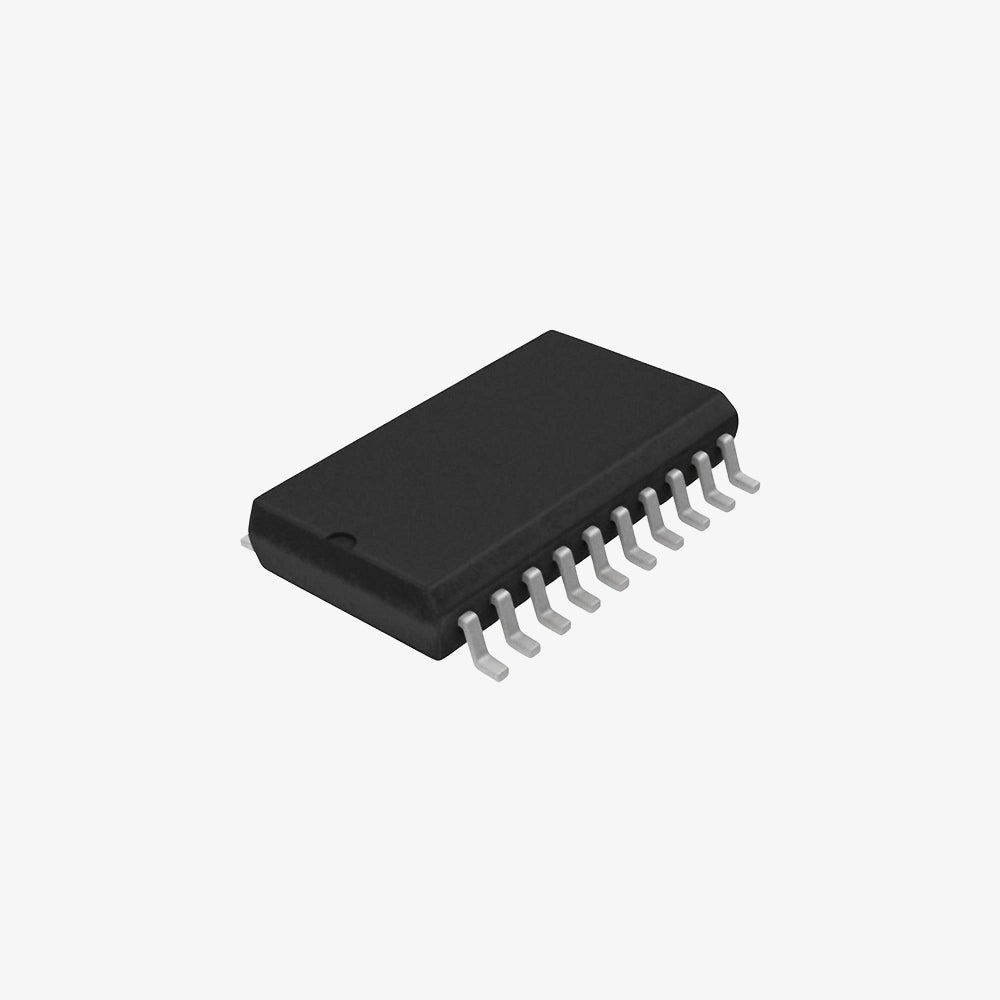

74HC374 - 3-State Output Octal D-Type Flip-Flop IC - SOIC-20 SMD Package

The 74HC374 is an octal D-type flip-flop with 3-state outputs, designed for use in a variety of digital logic and memory applications. It is housed in a SOIC-20 surface-mount device (SMD) package, making it suitable for high-density circuit board layouts. Here’s a detailed description of the product:

Key Features:

• Type: Octal D-Type Flip-Flop with 3-State Outputs
• Package: SOIC-20 (Small Outline Integrated Circuit)
• Logic Family: 74HC (High-Speed CMOS)
• Operating Voltage: 2V to 6V
• 3-State Outputs: Allows multiple devices to share a common bus
• Low Power Consumption: CMOS technology for low static power consumption
• Clock Edge: Positive-edge triggered

Applications:

• Data Storage: Ideal for temporary data storage and buffering.
• Bus Interface: Suitable for use in bus interfacing applications.
• Data Latching: Can be used for data latching in microcontroller and memory interfacing.
• Registers: Useful in creating parallel-in, parallel-out registers.
• Digital Logic: Commonly used in digital logic circuits for various applications.

Pin Configuration:

• Pin 1 (OE): Output Enable (active low)
• Pin 2 (Q0): Output for flip-flop 0
• Pin 3 (D0): Data input for flip-flop 0
• Pin 4 (D1): Data input for flip-flop 1
• Pin 5 (Q1): Output for flip-flop 1
• Pin 6 (D2): Data input for flip-flop 2
• Pin 7 (Q2): Output for flip-flop 2
• Pin 8 (D3): Data input for flip-flop 3
• Pin 9 (Q3): Output for flip-flop 3
• Pin 10 (GND): Ground
• Pin 11 (Q4): Output for flip-flop 4
• Pin 12 (D4): Data input for flip-flop 4
• Pin 13 (Q5): Output for flip-flop 5
• Pin 14 (D5): Data input for flip-flop 5
• Pin 15 (Q6): Output for flip-flop 6
• Pin 16 (D6): Data input for flip-flop 6
• Pin 17 (Q7): Output for flip-flop 7
• Pin 18 (D7): Data input for flip-flop 7
• Pin 19 (CP): Clock Pulse input (positive edge-triggered)
• Pin 20 (VCC): Supply voltage

Electrical Characteristics:

• Supply Voltage (Vcc): 2V to 6V
• Input Voltage (Vin): 0V to Vcc
• Output Voltage (Vout): 0V to Vcc
• Low Input Current (Iin): ±1μA max
• Low Output Current (Iout): ±25mA max
• Propagation Delay: Typically 15ns at Vcc = 5V
• 3-State Control: Allows multiple devices to share a common output line

Note: Product images are for illustrative purposes only and may differ from the actual product.
