74HC573 Octal D-Type Transparent Latch IC - SOIC-20 SMD Package

The 74HC573 is an octal D-type transparent latch IC designed for high-speed and low-power applications. It features eight D-type latches with 3-state outputs, which can be used to store and control data signals. The device is organized as eight latches with a common latch enable (LE) and output enable (OE) control. The IC is available in a SOIC-20 SMD package, making it suitable for various digital logic applications.

Specifications:

• IC Type: Octal D-Type Transparent Latch
• Package Type: SOIC-20 SMD
• Package Size: 20 Pins
• Supply Voltage: 2 V to 6 V
• Input Voltage Range: 0 V to Vcc
• Maximum Clock Frequency: 50 MHz (at Vcc = 4.5 V)
• Propagation Delay: 12 ns (typical at Vcc = 4.5 V)
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. OE: Output Enable Input
2. D0: Data Input 0
3. D1: Data Input 1
4. D2: Data Input 2
5. D3: Data Input 3
6. D4: Data Input 4
7. D5: Data Input 5
8. D6: Data Input 6
9. D7: Data Input 7
10. GND: Ground
11. Q7: Output 7
12. Q6: Output 6
13. Q5: Output 5
14. Q4: Output 4
15. Q3: Output 3
16. Q2: Output 2
17. Q1: Output 1
18. Q0: Output 0
19. LE: Latch Enable Input
20. VCC: Supply Voltage

Features:

• Octal D-type transparent latches
• 3-state outputs for bus-oriented applications
• High-speed operation
• Low power consumption
• Common latch enable and output enable controls
• Compact SOIC-20 package for efficient designs

Applications:

• Data storage and transfer
• Bus drivers and receivers
• Address latching
• Digital systems and microcontrollers
• Memory interfacing

Package Includes:

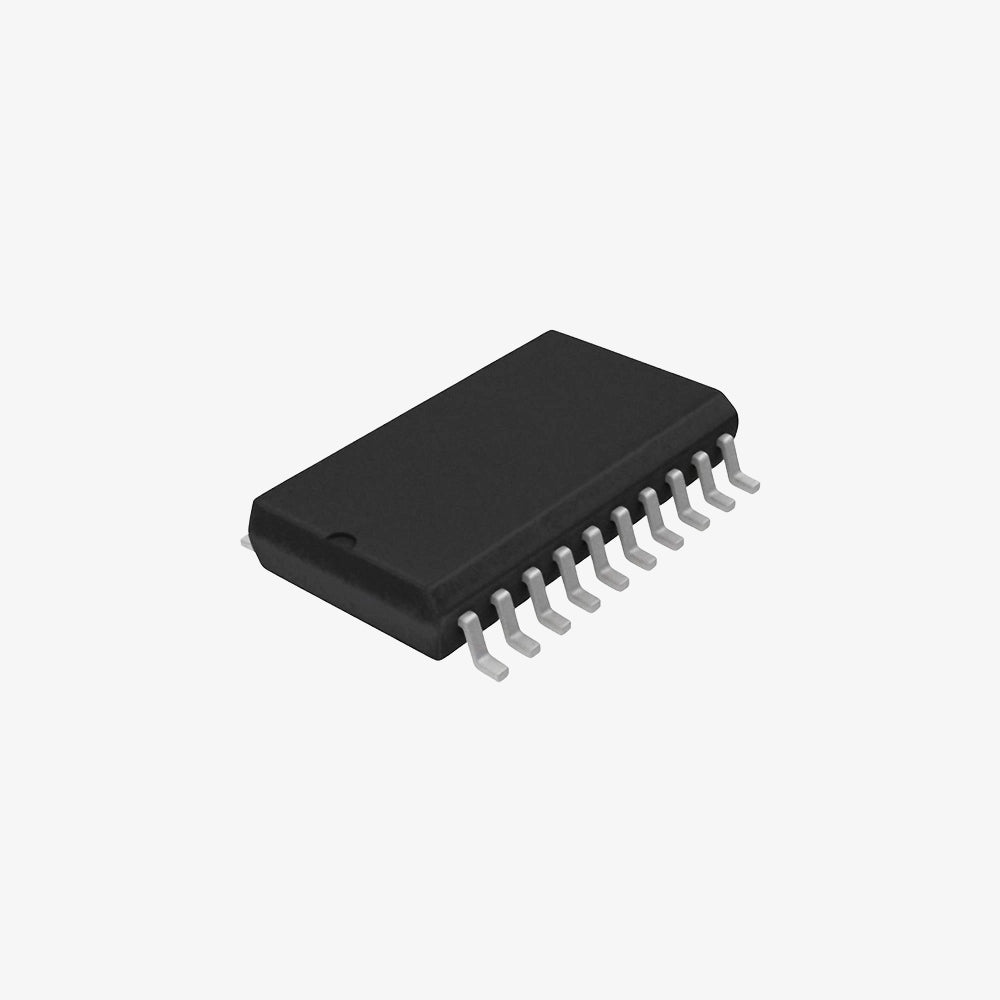

• 1 x 74HC573 Octal D-Type Transparent Latch IC (SOIC-20 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
