74HC574 Tri State Octal D Type Flip-Flop IC - SOIC-20 SMD Package

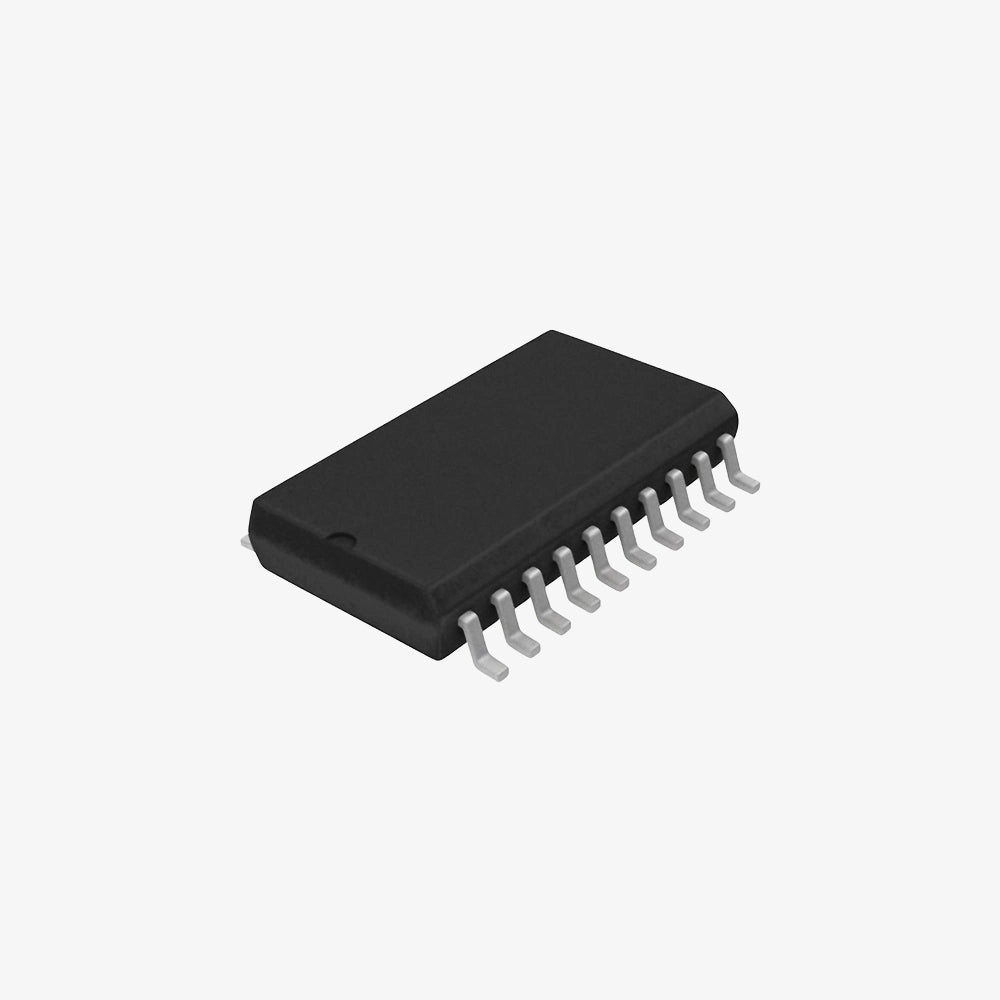

The 74HC574 is a high-speed CMOS octal D-type flip-flop IC with tri-state outputs. It is widely used in digital circuits for temporary data storage, data transfer, and interface applications. The IC consists of eight edge-triggered D-type flip-flops, each with individual data (D) inputs and tri-state outputs. The IC is available in a SOIC-20 SMD package, making it suitable for compact and high-density PCB designs.

Features

• Octal D-Type Flip-Flops: Contains eight individual flip-flops, each capable of storing a single bit of data, making it useful for data storage and transfer in digital systems.
• Tri-State Outputs: Features tri-state output control, allowing the outputs to be set to a high-impedance state for bus-oriented applications.
• High-Speed Operation: Capable of high-speed operation, making it suitable for use in fast digital circuits.
• Edge-Triggered Operation: Data is transferred to the output on the rising edge of the clock pulse, ensuring precise timing and control in synchronous systems.
• Direct Clear Function: Includes a direct clear input to reset all flip-flops, providing a quick way to reset the stored data.
• SOIC-20 SMD Package: Compact surface-mount package for easy integration into space-constrained PCB designs.

Specifications

• Supply Voltage: 2V to 6V
• Input Voltage: 0V to Vcc
• Output Voltage: 0V to Vcc
• Maximum Clock Frequency: 77 MHz (at Vcc = 4.5V)
• Propagation Delay: 15 ns typical at Vcc = 5V
• Operating Temperature: -40°C to +85°C
• Package Type: SOIC-20 (Small Outline Integrated Circuit)
• Pin Count: 20

Note: Product images are for illustrative purposes only and may differ from the actual product.
