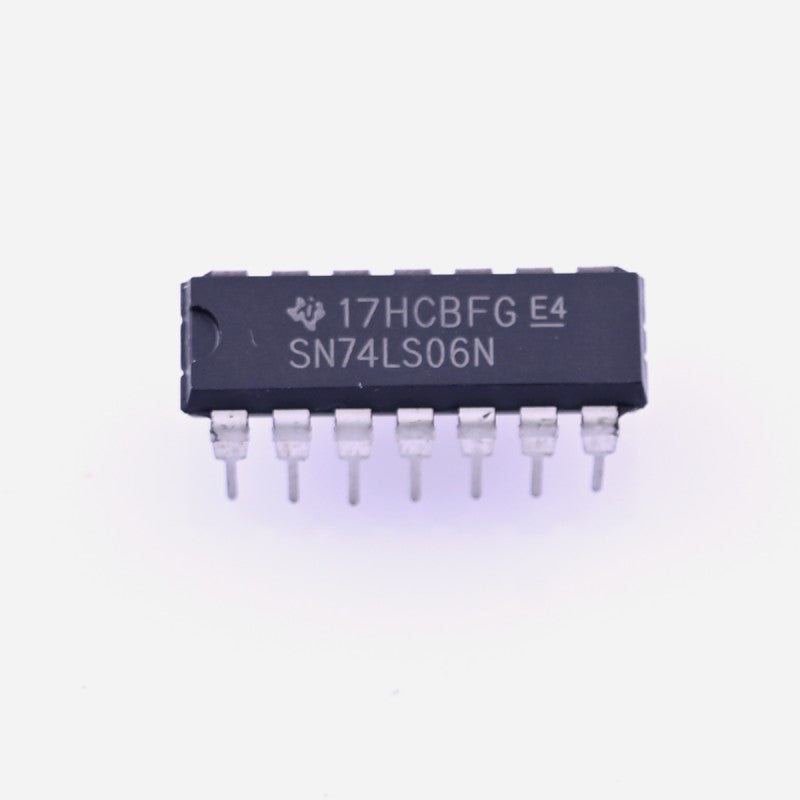

74LS06 - Hex Inverter/Buffer IC

The 74LS06 is a Hex Inverter (NOT gate) IC. That is, the IC contains six NOT gates, each with one input and one output pin. Each of the six NOT gates is powered by a common rail but can operate independently to perform logic INVERT function or Boolean Y = á¾?/strong> in positive logic. The recommended operating voltage for this IC is from 4.75V to 5.5V with a maximum operating voltage up to 7V. The minimum high level input voltage is 2V and the maximum low level input voltage is 0.8V.

Product Description of 74LS06IC

Features of 74LS06 IC

• Performs the Boolean function Y = á¾?/li>
• Recommended Supply Voltage 4.75V to 5.25V
• High speed â€?19ns (Typ) propagation delay
• High Level Output Current: -0.4 mA
• Low Level Output Current: 8 mA
• Operating Ambient Temperature Range: -20 to +70 °C

Mechanical Drawing
