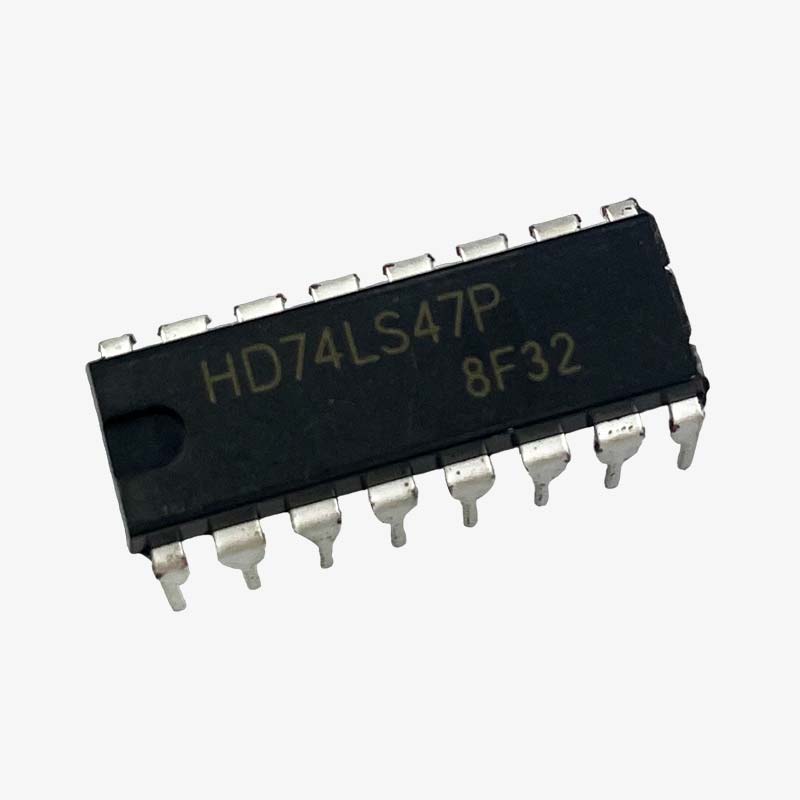

74LS47 7-Segment Driver IC

74LS47 7-Segment Driver IC

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The SN74LS47 is a 7-segment Driver IC. It is used to drive a without the need of a . It accepts decimal values (Binary coded) as inputs and provides a pattern on output pins that can display from 0 to 9 on a 7-segment display. The 74LS47 accepts four lines of BCD input data, generates their complements internally, and decodes the data with seven AND/ having open-collector outputs to drive indicator segments directly.



It can operate from 3V to 18V and can source up to 25mA on each output pin, which is high enough to illuminate the in a 7-segment display directly.

74LS47 7-Segment Driver IC Pinout



74LS47 IC Pin Configuration

Pin no.

Pin name

Description

1,2,6,7

B,C,D,A

BCD input of the IC

3

Display test/Lamp test

To test the display LEDs

4

Blank input

To turn-off the LEDs of the display

5

RBI (bar)

Store or strobe a BCD code

8

Gnd

Ground

9,10,11,12,13,14,15

e,d,c,b,a,g,f

7-segment outputs

16

Vcc

Positive supply input



Features & Specifications

  • Supply Voltage - Min: 3V
  • Supply Voltage - Max: 18V
  • Supply Current - Max: 7 mA
  • Maximum Clock Frequency: 35 MHz
  • Operating Supply Voltage: 5 V
  • Minimum Operating Temperature: 0 C
  • Maximum Operating Temperature: + 70 C
  • Open-collector outputs
  • Drive indicator segments directly
  • Cascadable zero-suppression capability
  • Lamp test input



Package Contents

1× 74LS47 7-Segment Driver IC
