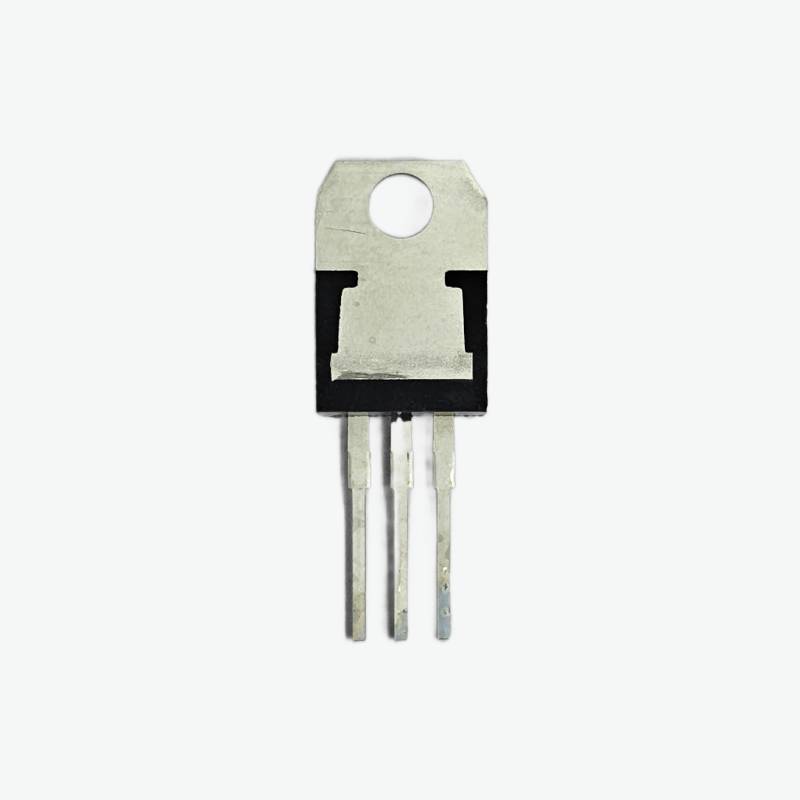

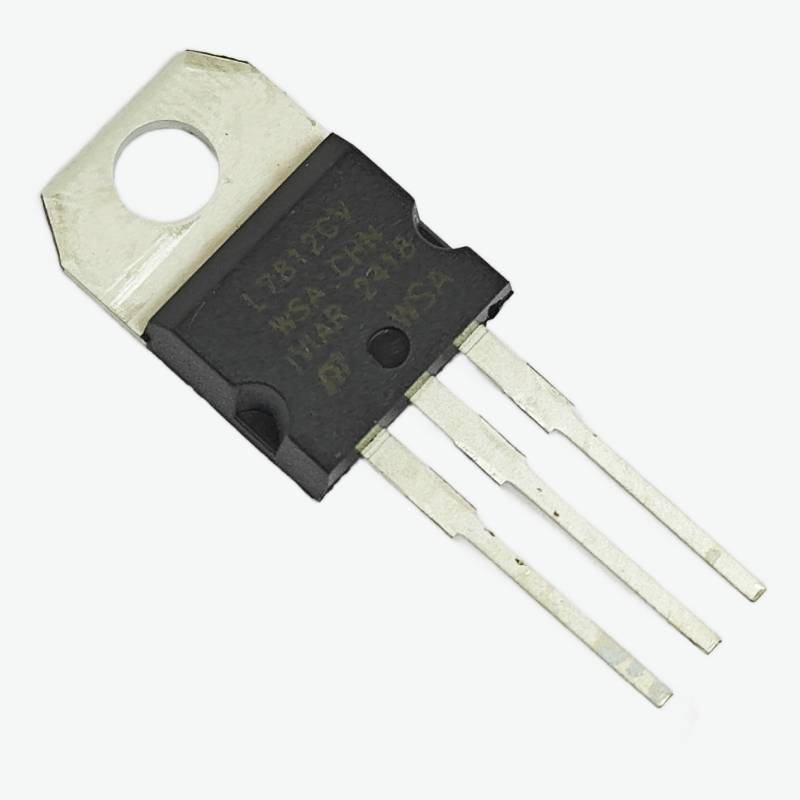

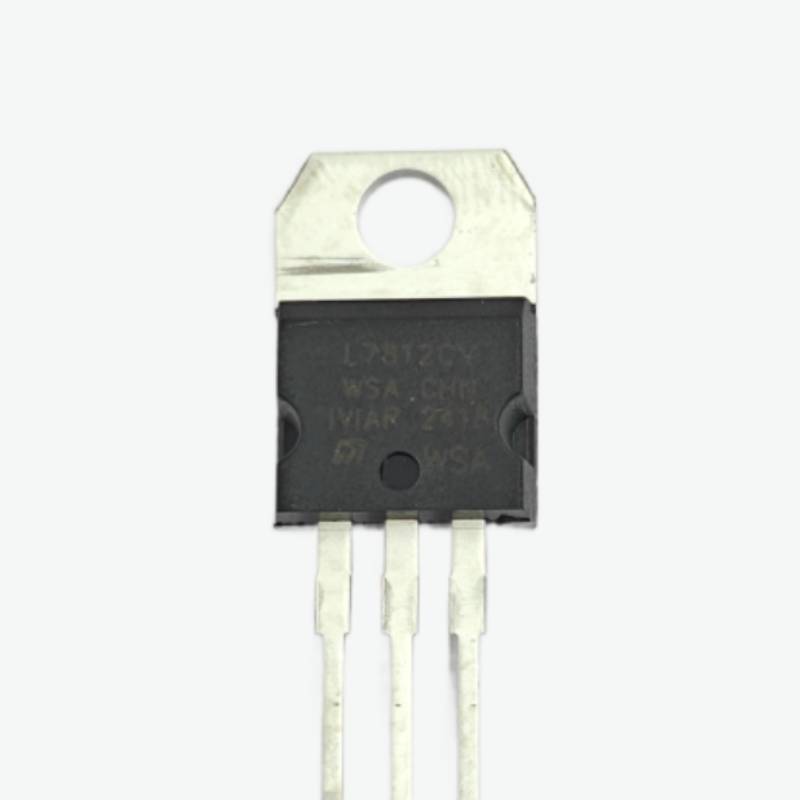

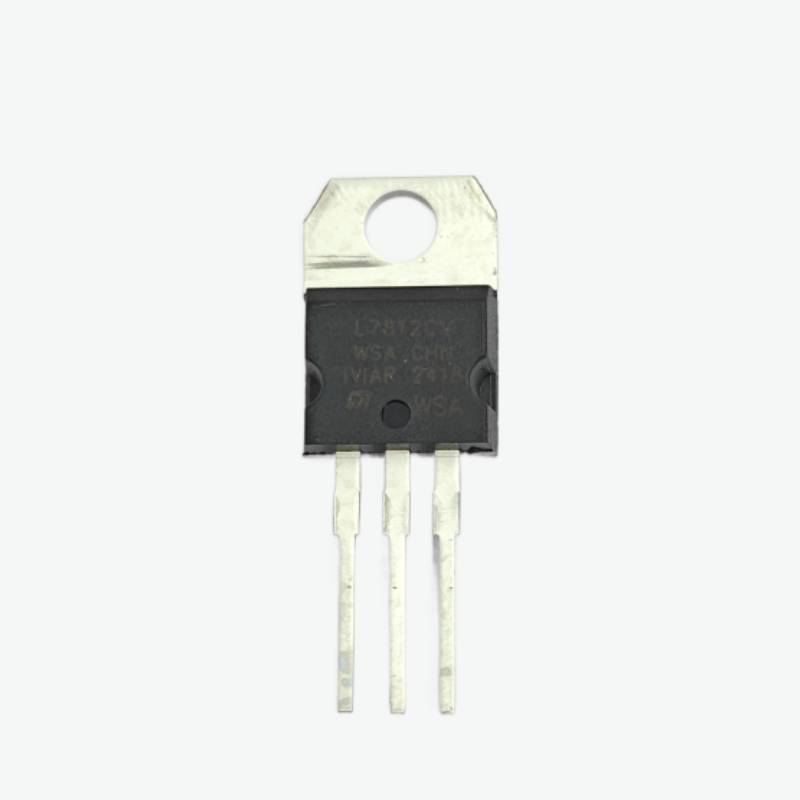

LM7812 12V Linear Positive Voltage Regulator �TO-220 Package

The 7812CV is a fixed 12V positive voltage regulator from the popular 78xx series. It provides a stable 12V output from a higher input voltage (typically 14V to 35V), making it ideal for power supplies, microcontroller-based systems, and regulated DC power circuits. It includes internal current limiting, thermal shutdown, and safe operating area protection.

Features of 7812CV Voltage Regulator:

1. Fixed 12V regulated output
2. Input voltage range: up to 35V
3. Output current up to 1.5A
4. Built-in thermal overload protection
5. Short-circuit current limiting
6. Reliable and low-cost solution for DC regulation
7. TO-220 package for easy mounting and heat dissipation
8. Compatible with heat sinks

Specifications of 7812CV Voltage Regulator:

• Model: 7812CV
• Type: Linear Voltage Regulator
• Output Voltage: +12V
• Output Current: 1.5A (max)
• Input Voltage: 14V to 35V
• Dropout Voltage: ~2V
• Package: TO-220
• Pin Configuration: Input, Ground, Output
• Mounting Type: Through-hole


Package Includes:

1 × 7812CV â€?12V Positive Voltage Regulator â€?TO-220 Package
