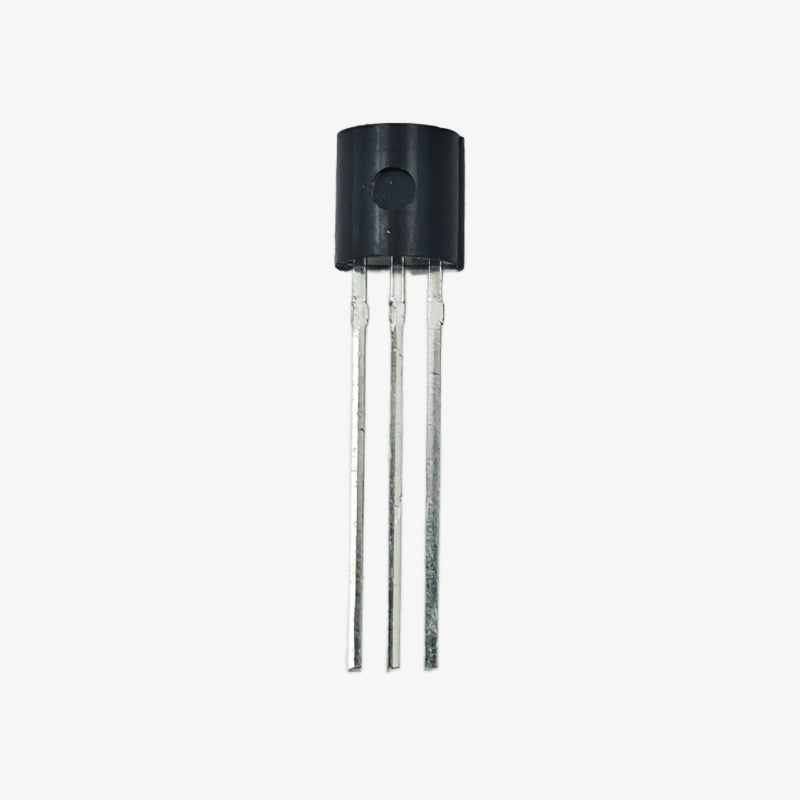

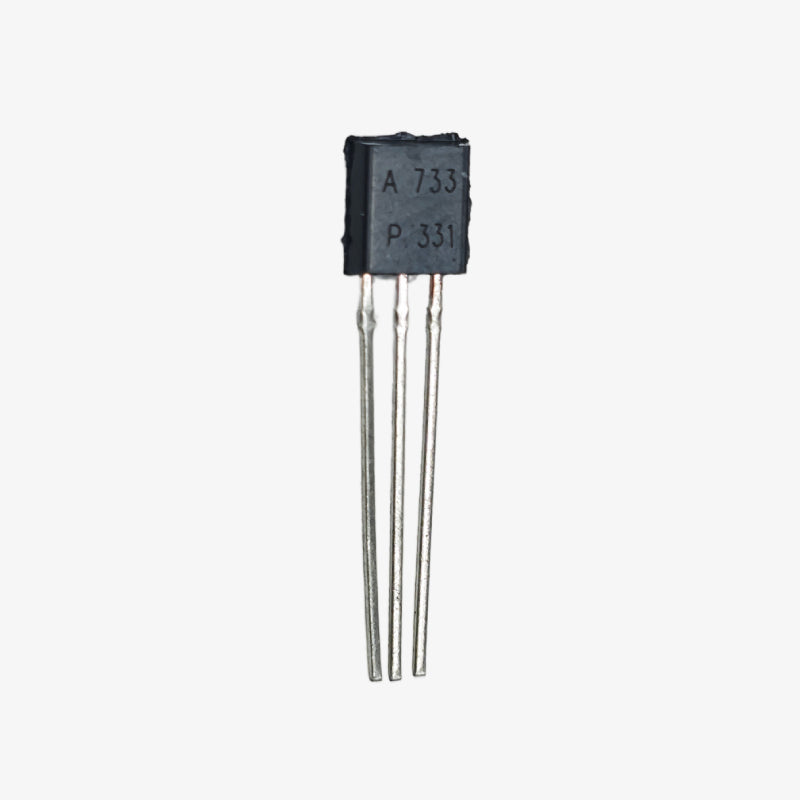

A733 150mA PNP Transistor - TO-92 DIP Package

The A733 is a PNP silicon epitaxial transistor designed for general-purpose amplification and low-power switching applications. Known for its low noise performance and stable characteristics, it is commonly used in audio signal processing, driver stages, and inverter circuits. Available in TO-92 and DIP through-hole packages, the A733 offers easy soldering and seamless integration into prototyping boards and PCB designs for both hobbyist and professional electronics projects.

Features:

1. PNP transistor suitable for low-power switching and amplification
2. Low noise, ideal for audio and signal processing applications
3. Stable performance with good linearity
4. Available in TO-92 and DIP packages for versatile mounting
5. Reliable for consumer electronics and control circuits


Specifications:

• Type: PNP
• Collector-Emitter Voltage (Vceo): 50V
• Collector-Base Voltage (Vcbo): 60V
• Emitter-Base Voltage (Vebo): 5V
• Collector Current (Ic): 150mA (max)
• DC Current Gain (hFE): 100 â€?400 (typical)
• Package: TO-92 / DIP through-hole
• Pin Configuration: Emitter, Collector, Base
• Operating Temperature: -55°C to +150°C


Package Includes:

A733 150mA PNP Transistor - TO-92 DIP Package
