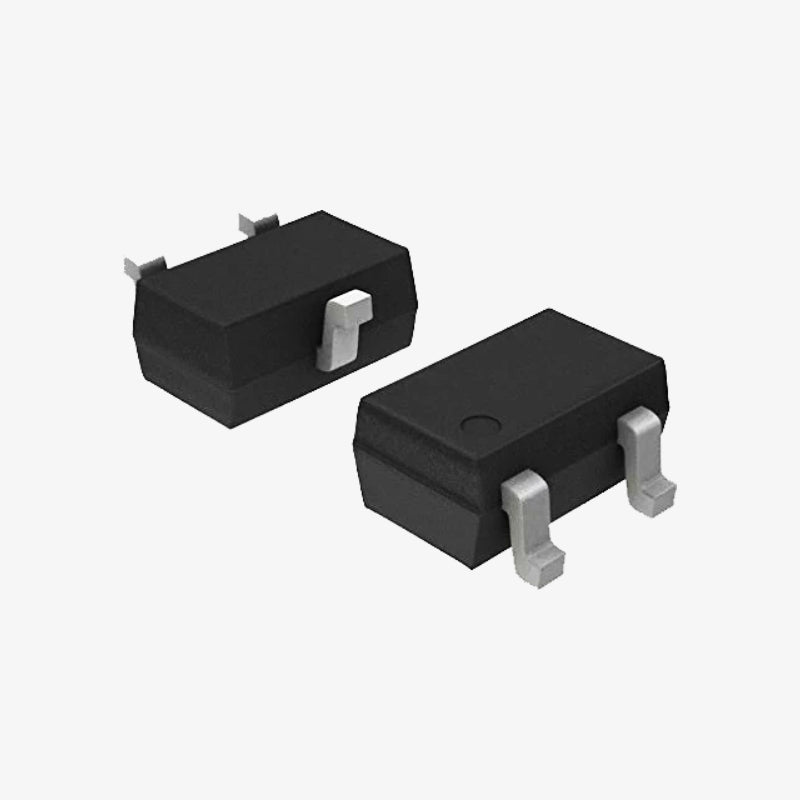

A733 PNP Transistor - SOT-23 SMD Package (Pack of 10)

The A733 PNP Transistor - SOT-23 SMD Package is a general-purpose small-signal transistor designed for low-noise amplification and signal switching. With high gain, low saturation voltage, and stable operation, it’s ideal for use in audio amplifiers, signal processing, and low-power switching circuits.

Features:

1. High DC current gain for reliable amplification

2. Low collector-emitter saturation voltage

3. Low noise figure for clean signal performance

4. Compact SOT-23 surface-mount package

5. Wide operating temperature range for versatile use

Specifications:

• Collector-Base Voltage (VCBO): -60V

• Collector-Emitter Voltage (VCEO): -50V

• Emitter-Base Voltage (VEBO): -5V

• Collector Current (IC): -150mA

• Power Dissipation (PC): 200mW

• Thermal Resistance Junction-to-Ambient (RθJA): 625°C/W

• Operating Junction and Storage Temperature Range (TJ, TSTG): -55°C to +150°C
• Collector-Base Breakdown Voltage (V(BR)CBO): -60V

• Collector-Emitter Breakdown Voltage (V(BR)CEO): -50V

• Emitter-Base Breakdown Voltage (V(BR)EBO): -5V

• Collector Cutoff Current (ICBO): -100nA

• Emitter Cutoff Current (IEBO): -100nA

• DC Current Gain (hFE) at VCE = -6V, IC = -1mA: 120 to 475

• Collector-Emitter Saturation Voltage (VCE(sat)) : -0.18V to -0.3V

• Base-Emitter Voltage (VBE(ON)): -0.58V to -0.68V

• Transition Frequency (fT): 80MHz

• Output Capacitance (Cob): 4.5 to 7pF

• Noise Figure (NF): 6 to 20dB

Package Includes:

10 × A733 PNP Transistor - SOT-23 SMD Package
