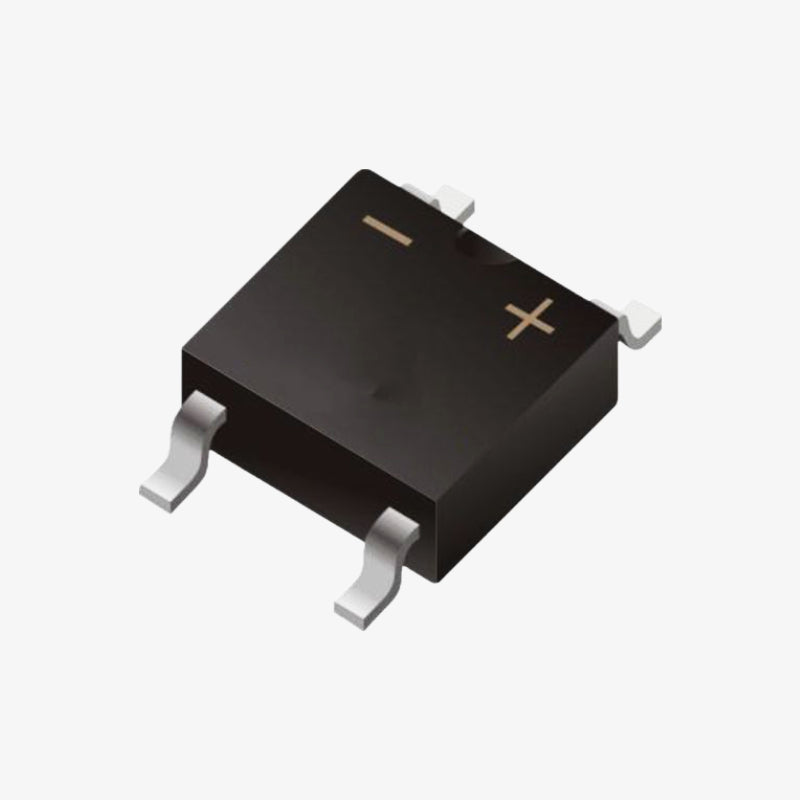

ABS10 1A 1000V Single Phase Bridge Rectifier Module - 4-Pin SMD Package (Pack of 10)

The ABS10 Bridge Rectifier is a compact SMD rectifier designed for efficient AC to DC conversion. It features a glass-passivated junction and low reverse leakage, ensuring stable performance in compact PCB layouts. Ideal for power adapters, LED drivers, and general rectification circuits.

Features:

1. Glass passivated junction for improved reliability

2. Low reverse leakage and forward voltage drop

3. High forward surge current capability

4. SMD molded ABS package with polarity marking

5. Compliant with RoHS standards

Specifications:

• Average Forward Current (IF(AV)): 0.8A / 1.0A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 50A (8.3ms single half sine wave)

• Instantaneous Forward Voltage (VF): 1.0V at IF = 0.5A

• Reverse Current (IR) at 25°C: 5µA
• Reverse Current (IR) at 125°C: 500µA

• Thermal Resistance Junction to Ambient (RθJA): 80°C/W / 62.5°C/W

• Thermal Resistance Junction to Lead (RθJL): 25°C/W

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature Range (TSTG): -55°C to +150°C

Package Includes:

10 × ABS10 Bridge Rectifier - SMD Package
