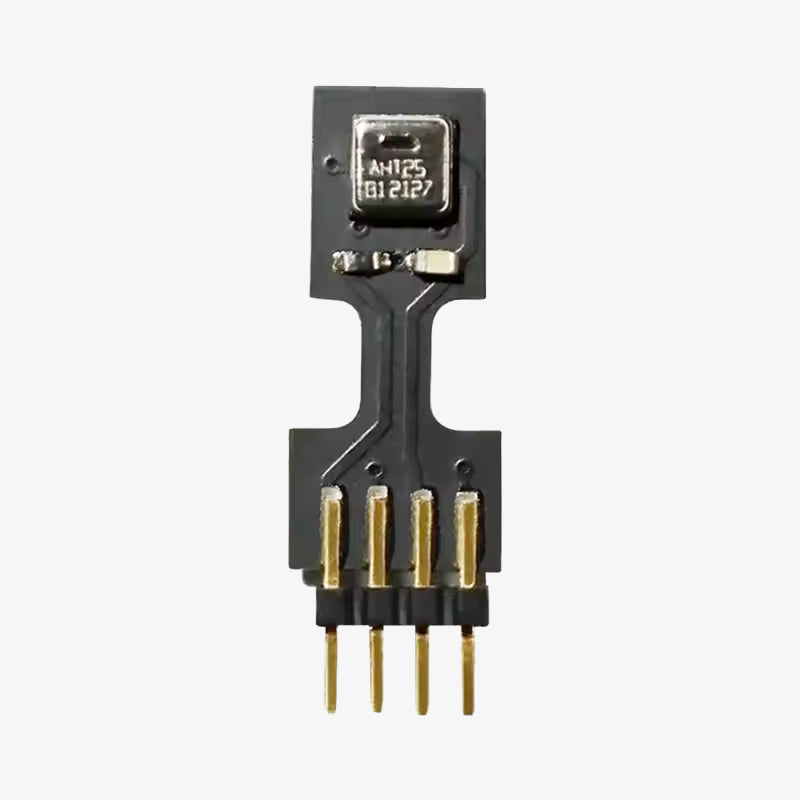

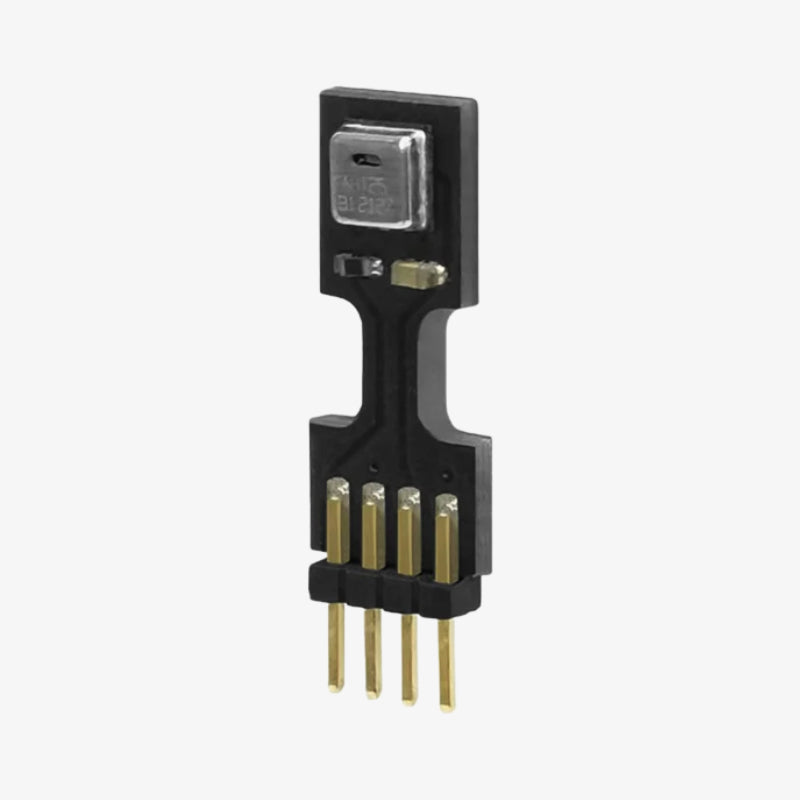

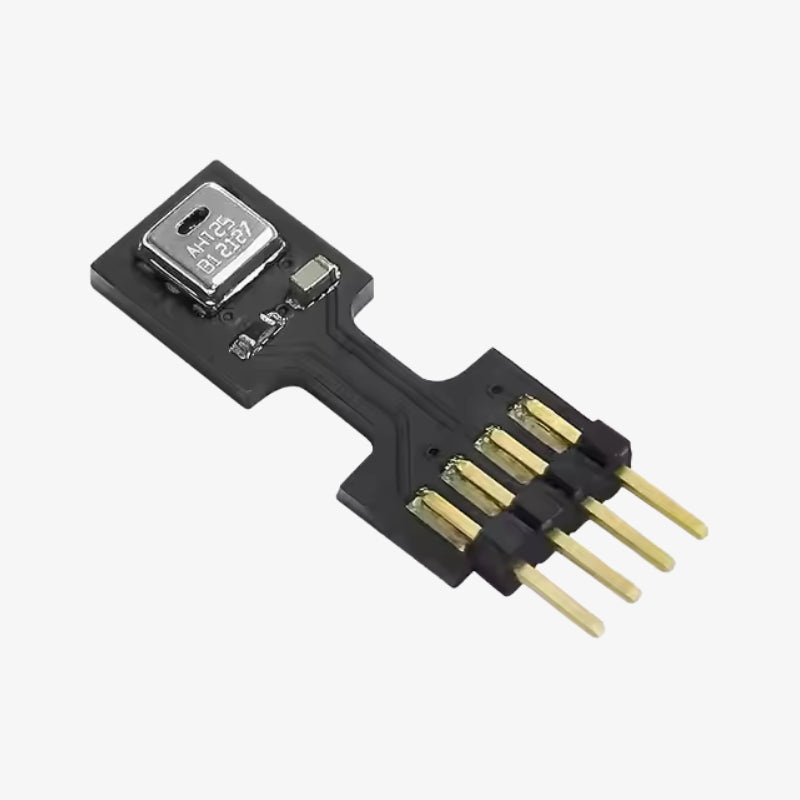

AHT25 Integrated Temperature and Humidity Sensor

The AHT25 is a Digital Temperature and Humidity Sensor Module with high precision and long-term stability, integrated into a compact breakout form for easy use in embedded systems. It is ideal for environmental monitoring, weather stations, HVAC, and IoT applications requiring accurate climate data. With I²C interface and factory calibration, the sensor ensures fast response and reliable performance.

Features of AHT25 Integrated Temperature and Humidity Sensor:

1. High precision and stable performance for both temperature and humidity sensing
2. Fully calibrated, linearized, and temperature-compensated digital output
3. I²C digital interface for easy integration with microcontrollers
4. Wide operating range: -40°C to +85°C temperature and 0%â€?00% RH humidity
5. Compact form factor for space-constrained projects
6. Suitable for data loggers, smart homes, and IoT applications
7. Integrated capacitive humidity sensing and bandgap temperature sensor

Specifications of AHT25 Integrated Temperature and Humidity Sensor:

• Operating Voltage: 2.2V â€?5.5V
• Interface: I²C (up to 400 kHz)
• Temperature Range: -40°C to +85°C
• Humidity Range: 0% RH to 100% RH
• Temperature Accuracy: ±0.3°C
• Humidity Accuracy: ±2% RH
• Response Time: < 8 seconds (humidity), < 2 seconds (temperature)


Package Includes:

1 × AHT25 Integrated Temperature and Humidity Sensor Module
