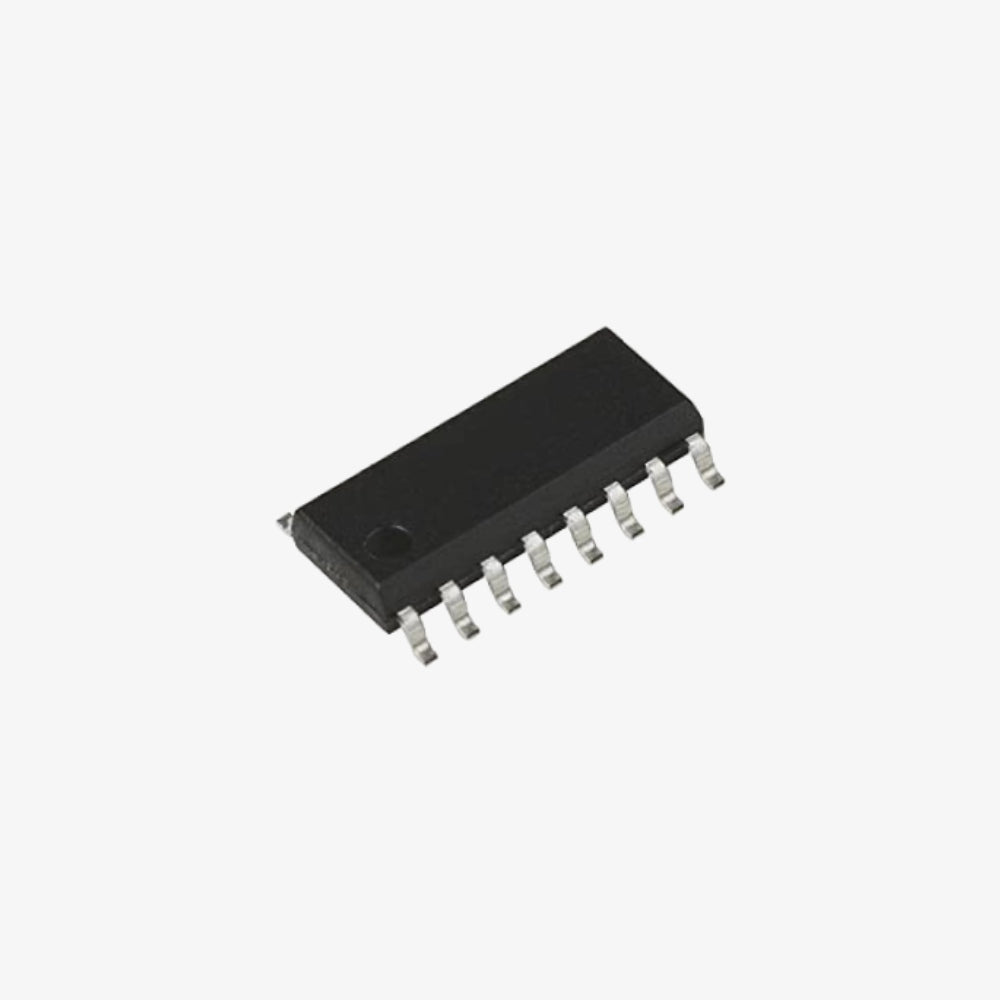

AM26LV31 Low-Voltage High-Speed Quadruple Differential Line Driver IC (TI) - SOP-16 SMD Package

The AM26LV31 is a low-voltage, high-speed quadruple differential line driver IC from Texas Instruments. It is designed for high-speed data transmission in applications that require reliable differential signaling, such as in communication systems and data networks. The IC is available in an SMD package, making it suitable for modern, compact PCB designs.

Features

• Quadruple Differential Line Drivers: Provides four independent differential drivers, allowing for multiple data channels.
• High-Speed Operation: Supports data rates up to 32 Mbps, suitable for high-speed communication applications.
• Low-Voltage Operation: Designed to operate at low voltages (3.3V), making it ideal for modern low-power systems.
• Tri-State Outputs: Allows for high-impedance output state, enabling easy bus interfacing and multiple device connections.
• SMD Package: Compact surface-mount package for easy integration into high-density circuit designs.

Specifications

• Number of Channels: 4 differential line drivers
• Operating Voltage: 3.0V to 3.6V
• Data Rate: Up to 32 Mbps
• Output Differential Voltage: 2.0V typical
• Propagation Delay: 6 ns max
• Output High Voltage (VOH): 2.7V min
• Output Low Voltage (VOL): 0.3V max
• Operating Temperature: -40°C to +85°C
• Package Type: SMD (Surface-Mount Device)
• Pin Count: 16

Note: Product images are for illustrative purposes only and may differ from the actual product.
