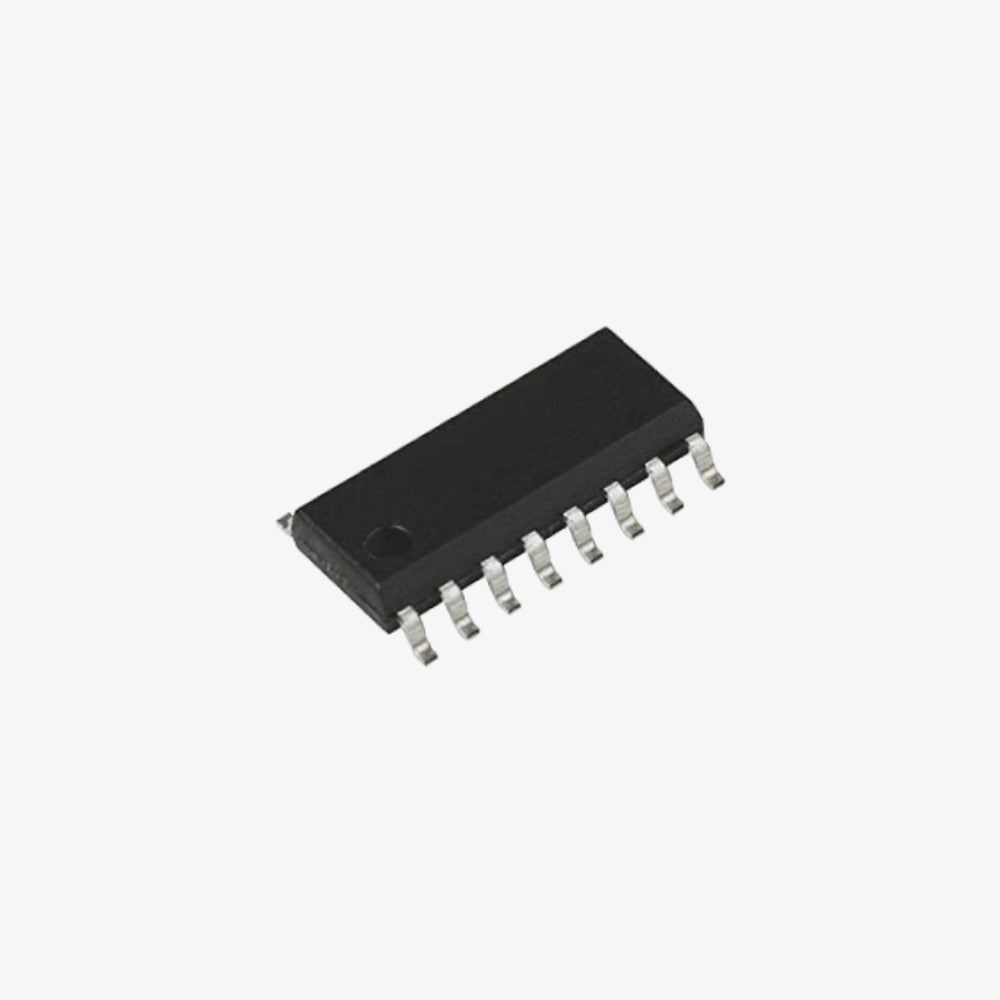

AM26LV32 Low-Voltage High-Speed Quadruple Differential Line Receiver IC (TI) - SOP-16 SMD Package

The AM26LV32 is a low-voltage, high-speed quadruple differential line receiver IC from Texas Instruments, designed to complement differential line driver ICs such as the AM26LV31. It is used in high-speed data communication systems to receive differential signals and convert them to logic-level outputs. The IC is packaged in a SOP-16 SMD package, making it ideal for space-constrained designs.

Features

• Quadruple Differential Line Receivers: Provides four independent differential receivers, allowing for multiple data channels.
• High-Speed Operation: Capable of receiving data at rates up to 32 Mbps, suitable for high-speed communication applications.
• Low-Voltage Operation: Operates at a low voltage range (3.0V to 3.6V), making it ideal for modern, low-power systems.
• Common-Mode Voltage Range: Supports a wide range of input common-mode voltages, enhancing noise immunity.
• SMD Package: SOP-16 surface-mount package that is compact and easy to integrate into high-density circuit designs.

Specifications

• Number of Channels: 4 differential line receivers
• Operating Voltage: 3.0V to 3.6V
• Data Rate: Up to 32 Mbps
• Input Threshold Voltage: ±200 mV max
• Input Common-Mode Voltage Range: -1V to +3V
• Propagation Delay: 6 ns max
• Output High Voltage (VOH): 2.7V min
• Output Low Voltage (VOL): 0.3V max
• Operating Temperature: -40°C to +85°C
• Package Type: SOP-16 (Small Outline Package)
• Pin Count: 16

Note: Product images are for illustrative purposes only and may differ from the actual product.
