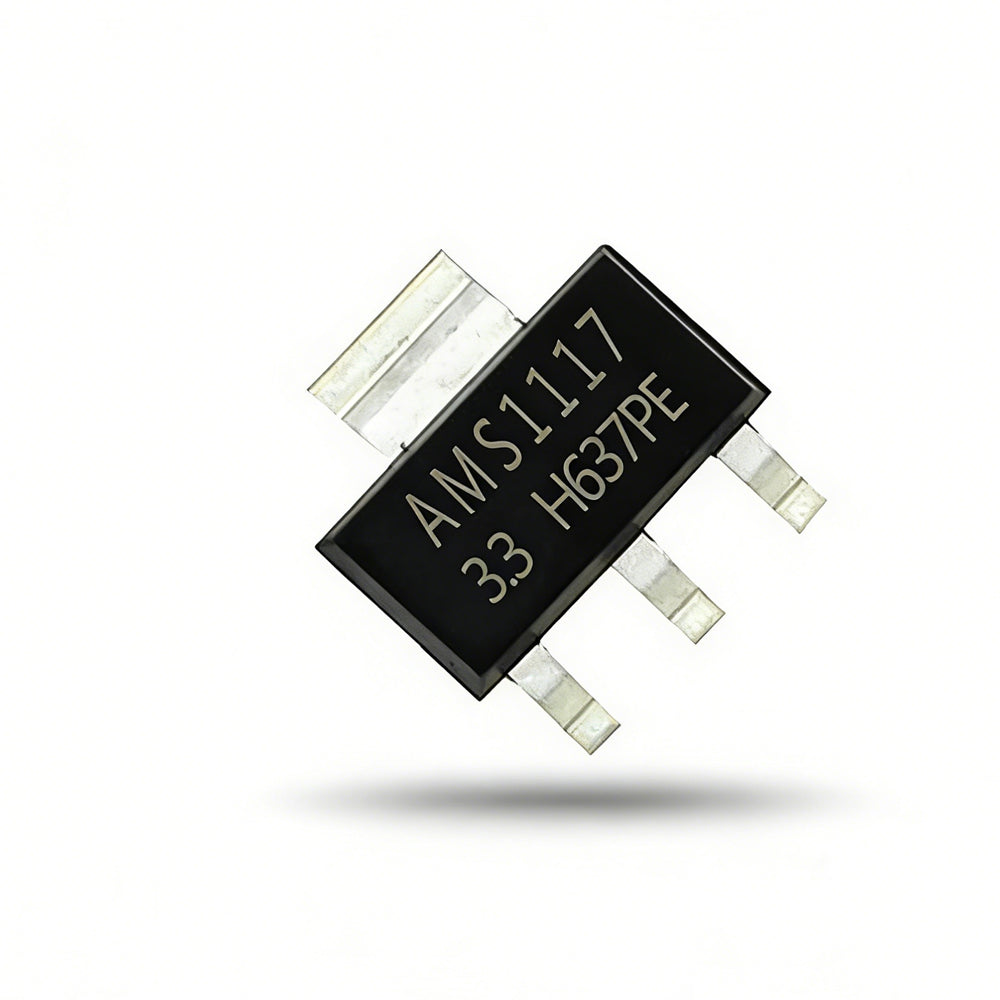

AMS1117-3.3
AMS1117-3.3
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
Product Overview
The AMS1117 series of adjustable and fixed voltage regulators are designed to deliver output currents up to 1A, operating with an input-output voltage differential as low as 1V. The device’s dropout voltage is guaranteed to be a maximum of 1.3V, which decreases at lighter load currents. On-chip trimming allows the reference voltage to be adjusted to 1.5%. Current limiting is implemented to minimize stress on the regulator and power circuit under overload conditions. The AMS1117 is pin-compatible with other three-terminal SCSI regulators, available in standard surface-mount SOT-223, 8-pin SOIC, and TO-252 (DPAK) plastic packages.
Product Features
- Three-terminal adjustable or fixed output voltages: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5.0V
- Output current: 1A
- Operates with a dropout voltage as low as 1V
- Line regulation: Max 0.2%
- Load regulation: Max 0.4%
- Available in SOT-223, TO-252, and SO-8 packages
Application Fields
- High-efficiency linear regulator
- Post-regulator for switching power supplies
- 5V-to-3.3V linear regulator
- Battery chargers
- Active SCSI terminators
- Laptop power management
- Battery-powered devices
| Attribute | Specification |
|---|---|
| Output Type | Fixed |
| Operating Voltage | 16V |
| Output Voltage | 3.3V |
| Output Current | 1A |
| Power Supply Rejection Ratio (PSRR) | 72dB (@120Hz) |
| Dropout Voltage | 1.1V (@800mA) |
| Quiescent Current (Iq) | 5mA |
| Noise | 0.003%Vout |
| Features | Overcurrent Protection; Overheat Protection |
| Operating Temperature | -40°C ~ +125°C |
| Output Polarity | Positive |
| Output Channels | 1 |
