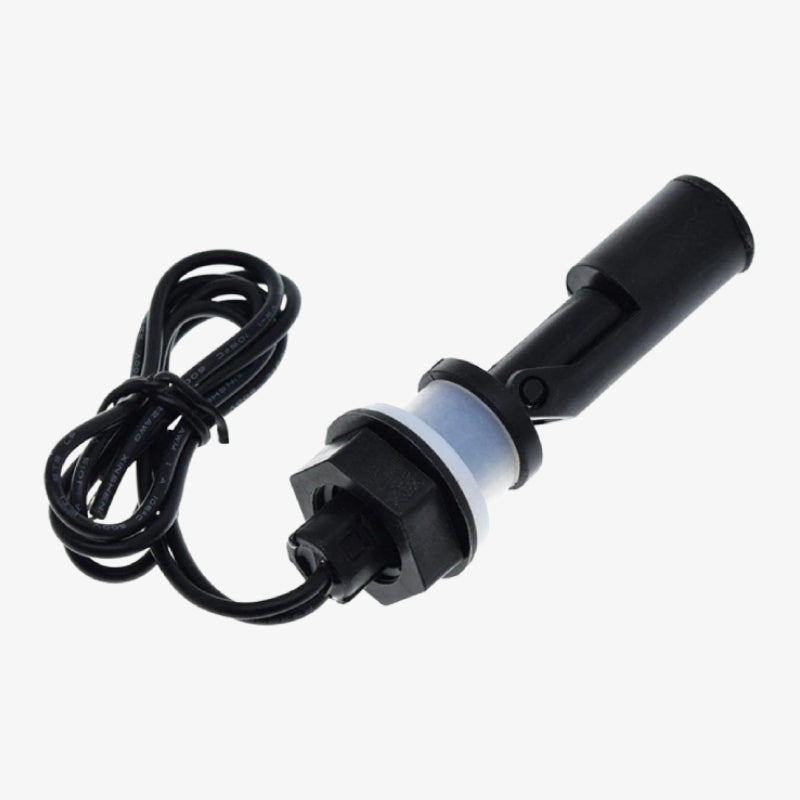

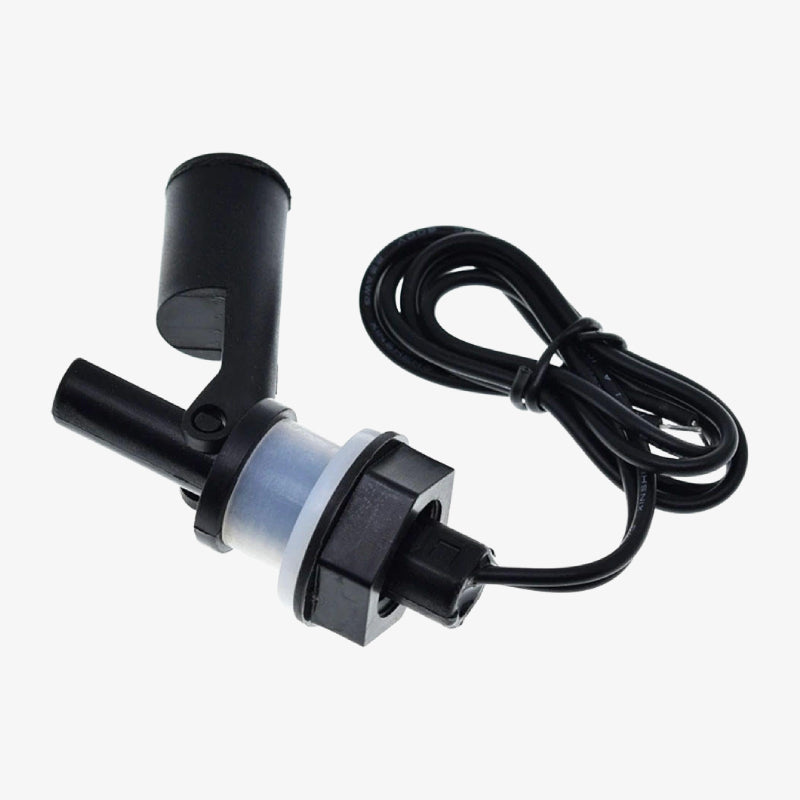

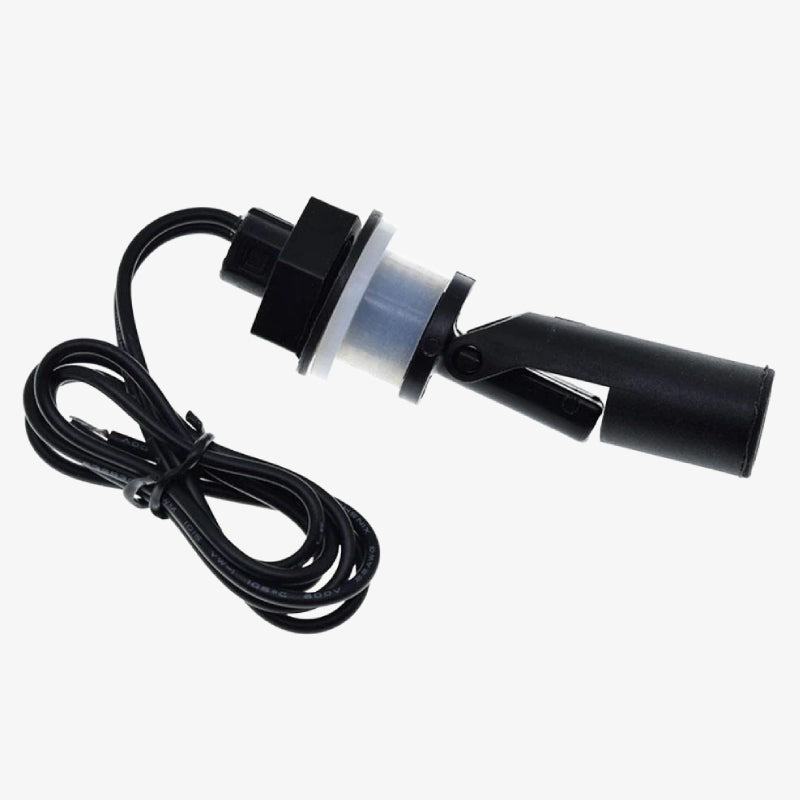

Anti-Corrosion Rated Water Level Sensor with Ball Float Switch

The Anti-Corrosion Side-Mount Water Level Sensor with Ball Float Switch is engineered for reliable fluid level detection in harsh environments. Designed with a durable plastic housing and integrated reed switch mechanism, it detects rising or falling water levels by the tilt of its float ball. The sensor operates efficiently in a wide tilt range and offers flexible installation for either normally open or normally closed switching. Its compact build, reliable switching performance, and corrosion resistance make it ideal for aquariums, sump tanks, industrial water systems, agriculture, and automated water pump applications.

Features of Anti-Corrosion Water Level Sensor with Float Switch:

1. Durable and corrosion-resistant plastic body for long-lasting performance.
2. Side-mount design with ball float for reliable water level detection.
3. Operates based on magnetic reed switch �no external power needed.
4. Can be configured for Normally Open (NO) or Normally Closed (NC) operation.
5. Wide float tilt range with accurate ON/OFF switching between 15° to 20°.
6. Simple 2-wire connection for quick integration into circuits.
7. Ideal for low-power automation and fluid management systems.

Specifications of Anti-Corrosion Water Level Sensor:

• Rated Switching Power: 10W
• Maximum Switching Voltage: 110VDC
• Maximum Contact Resistance: 100Ω
• Float Ball Size: 24mm (L) × 17mm (Diameter)
• Total Body Length: 85mm
• Cable Length: 37cm
• Total Float Opening Angle: 70°
• Switching Angle Range: Approx. 15° to 20°
• Mounting Type: Side Mount
• Output Type: Reed Switch (Dry Contact)
• Material: Anti-corrosive plastic

Package Includes:

1 × Anti-Corrosion Water Level Sensor with Ball Float Switch â€?Side Mount â€?10W â€?110VDC Rated
