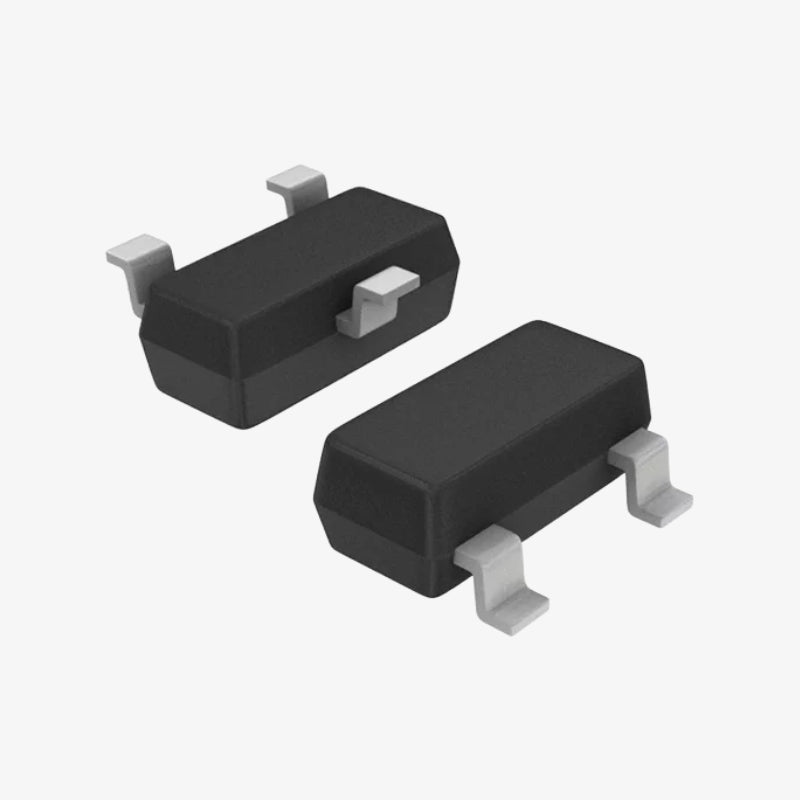

AO3415 P-Channel MOSFET 20V 4A - SOT-23 SMD Package

The AO3415 is a P-channel MOSFET designed for low-voltage, high-efficiency switching applications. With a drain-source voltage rating of 20V and a continuous drain current of 4A, it offers excellent switching performance in a compact SOT-23 surface-mount package. It is commonly used in power management circuits, load switches, and battery-powered devices.

Features of AO3415 P-Channel MOSFET:

1. P-channel enhancement mode MOSFET
2. Low on-resistance for efficient switching
3. High current handling capability of up to 4A
4. Ideal for use in load switches and power management applications
5. Compact SOT-23 package for space-constrained designs

Specifications of AO3415 P-Channel MOSFET:

• Model: AO3415
• Type: P-Channel Power MOSFET
• Drain-Source Voltage (VDS): -20V
• Continuous Drain Current (ID): -4A
• Gate Threshold Voltage (VGS(th)): -0.5V to -1.4V
• RDS(on): 0.045Ω (max) at VGS = -4.5V
• Total Gate Charge (Qg): ~13nC
• Package: SOT-23 â€?SMD
• Power Dissipation: 1.5W
• Operating Temperature Range: -55°C to +150°C

Package Includes:

1 × AO3415 P-Channel MOSFET 20V 4A â€?SOT-23 Package
