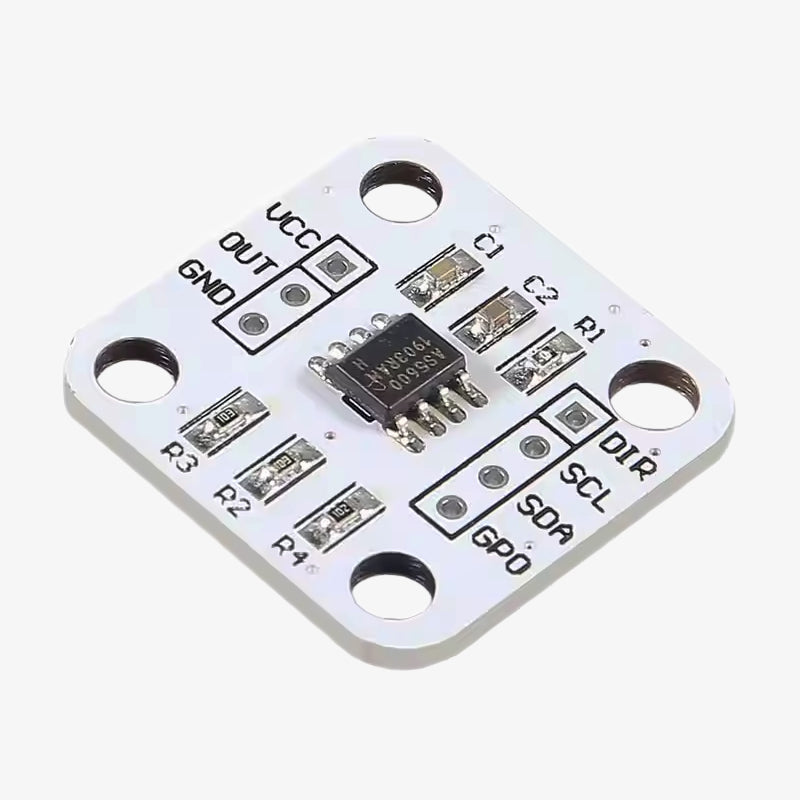

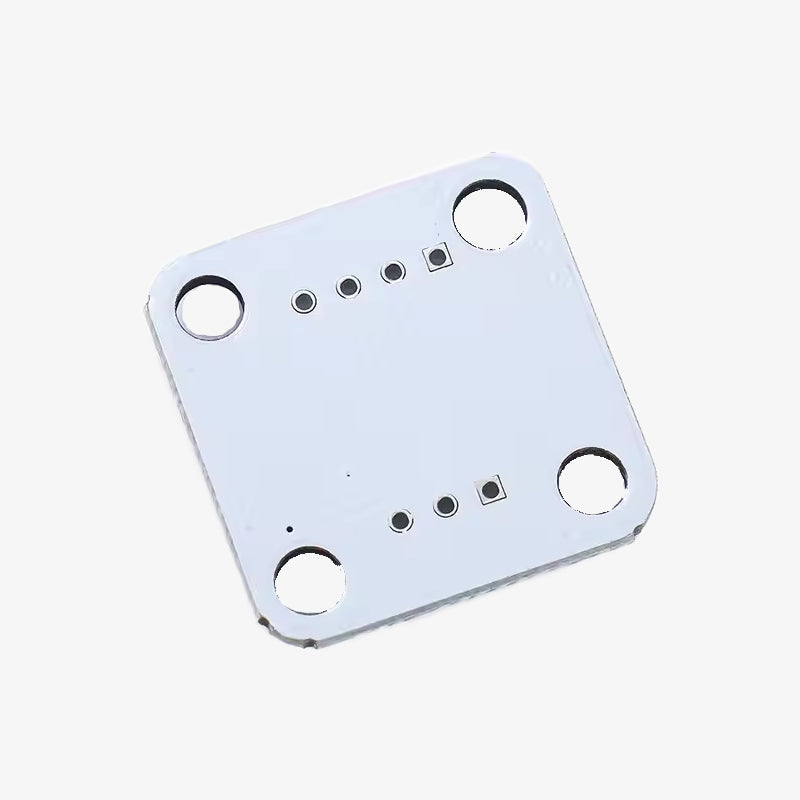

AS5600 Magnetic Encoder Angle Sensor Module

This AS5600 Magnetic Angle Encoder Sensor Module is designed to provide precise and reliable angular position sensing. It uses a magnetic rotary encoder, making it ideal for applications requiring accurate rotational feedback. The module offers high precision with a resolution of 12-bits and can detect rotational angles in a full 360-degree range.

Features:

• High Precision: 12-bit resolution for accurate angle measurement.
• Magnetic Sensing: Uses a contactless magnetic field to detect the angle.
• Wide Operating Voltage: Operates within a voltage range of 3.3V to 5.5V.
• I2C Communication: Allows easy interface with microcontrollers via I2C protocol.
• Low Power Consumption: Energy-efficient design, suitable for battery-powered applications.
• Non-Contact Sensing: No mechanical wear, ensuring long-term reliability.
• 360-Degree Detection: Provides full rotation sensing for various rotational applications.

Specifications:

• Operating Voltage: 3.3V to 5.5V
• Resolution: 12 bits
• Output Signal: I2C interface
• Operating Temperature Range: -40°C to +125°C
• Angle Detection Range: 360 degrees
• Current Consumption: 3mA
• Module Dimensions (L x W x H): 20mm x 15mm x 5mm

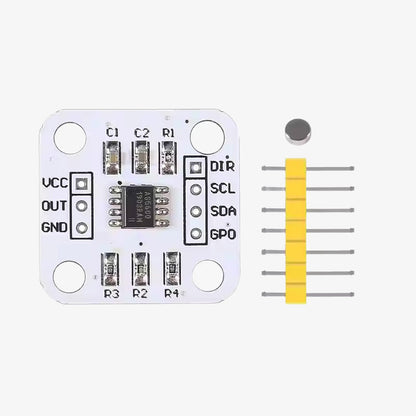

Package Includes:

1 x AS5600 Magnetic Angle Encoder Sensor Module
