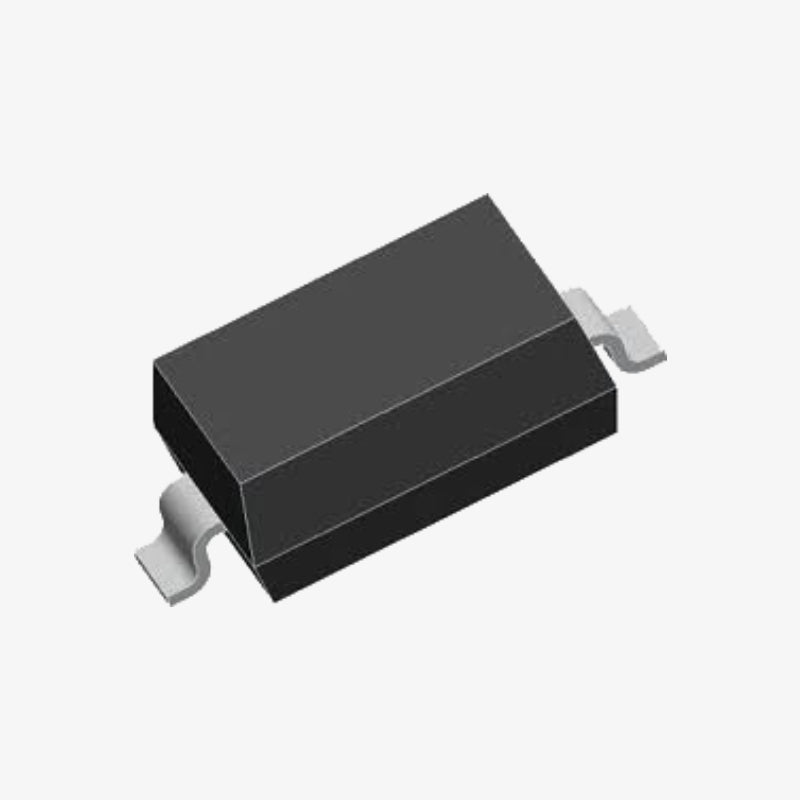

The BAT42WS Small Signal Schottky Diode SOD-323 SMD Package is designed for high-speed switching and low forward voltage drop in compact electronic circuits. Its Schottky barrier structure ensures efficient signal rectification and minimal power loss, making it ideal for high-frequency, protection, and logic-level applications.

Features:

  1. Low forward voltage drop for improved efficiency
  2. Fast reverse recovery for high-speed switching
  3. Compact SOD-323 surface-mount design
  4. Low leakage current and high reliability
  5. Compatible with automated placement systems

Specifications:

  • Peak Repetitive Reverse Voltage (VRRM): 30V
  • Working Peak Reverse Voltage (VRWM): 30V
  • DC Blocking Voltage (VR): 30V
  • RMS Reverse Voltage (VR(RMS)): 21V
  • Forward Continuous Current (IFM): 200mA
  • Repetitive Peak Forward Current (IFRM): 500mA
  • Non-Repetitive Peak Surge Current (IFSM, 8.3ms): 4.0A
  • Power Dissipation (PD): 200mW
  • Thermal Resistance, Junction to Ambient (RθJA): 500°C/W
  • Junction Temperature (TJ): 125°C
  • Storage Temperature (TSTG): -55°C to +150°C
  • Reverse Breakdown Voltage (VBR) at 10µA: 30V
  • Forward Voltage (VF) at 2mA: 0.33V
  • Forward Voltage (VF) at 10mA: 0.4V
  • Forward Voltage (VF) at 50mA: 0.65V
  • Forward Voltage (VF) at 200mA: 1.0V
  • Reverse Current (IR) at 25V: 0.5µA
  • Terminal Capacitance (CT) at VR=1V, f=1MHz: 10pF
  • Reverse Recovery Time (trr): 5ns (IF=IR=10mA, RL=100Ω)

Package Includes:

1 × BAT42WS Small Signal Schottky Diode - SOD-323 SMD Package
