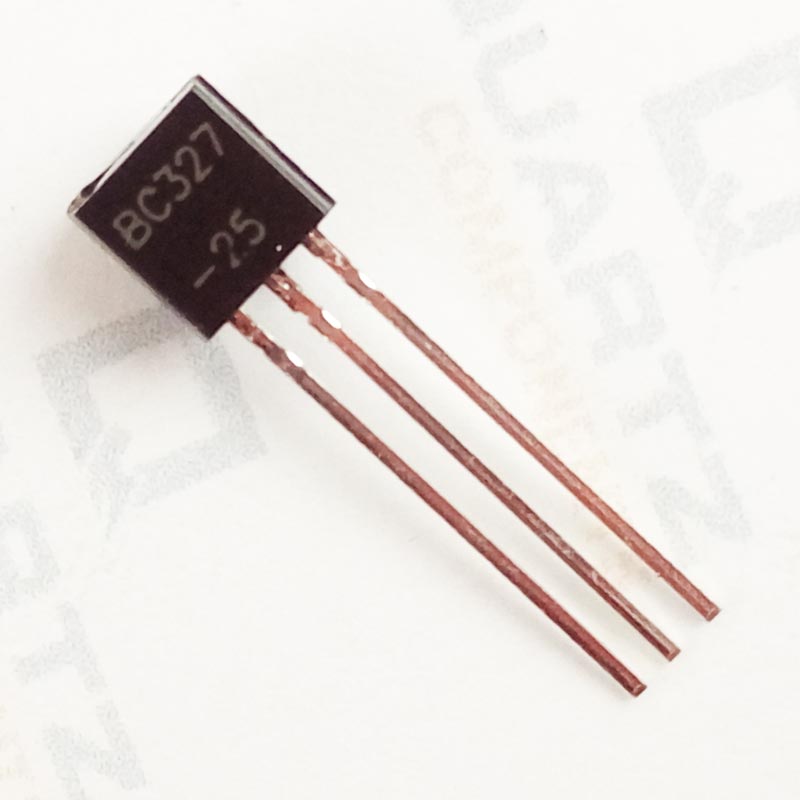

BC327 PNP Transistor

The BC327 transistor is an PNP with excellent maximum gain capability of 600 but normal gain is around 110 so that you can use it in amplifier application. It can have a maximum collector current flow of 800mA and maximum collector power dissipation of 625mW. Maximum transistor frequency is 100MHz and maximum collector to emitter voltage is 45V so you can use it to drive loads under 800mA like pre amplifiers, signal conditioners etc.

BC327 Transistor Specifications

• Package Type: TO-92
• Transistor Type: PNP
• Max Collector Current: -800mA
• Max Collector-Emitter Voltage: -45V
• Max Collector-Base Voltage: -50V
• Max Emitter-Base Voltage: -5V
• Max Collector Dissipation: 625 Milliwatt
• Max Transition Frequency: 100 MHz

Product Description

Package Contents

1× BC327 PNP Transistor
