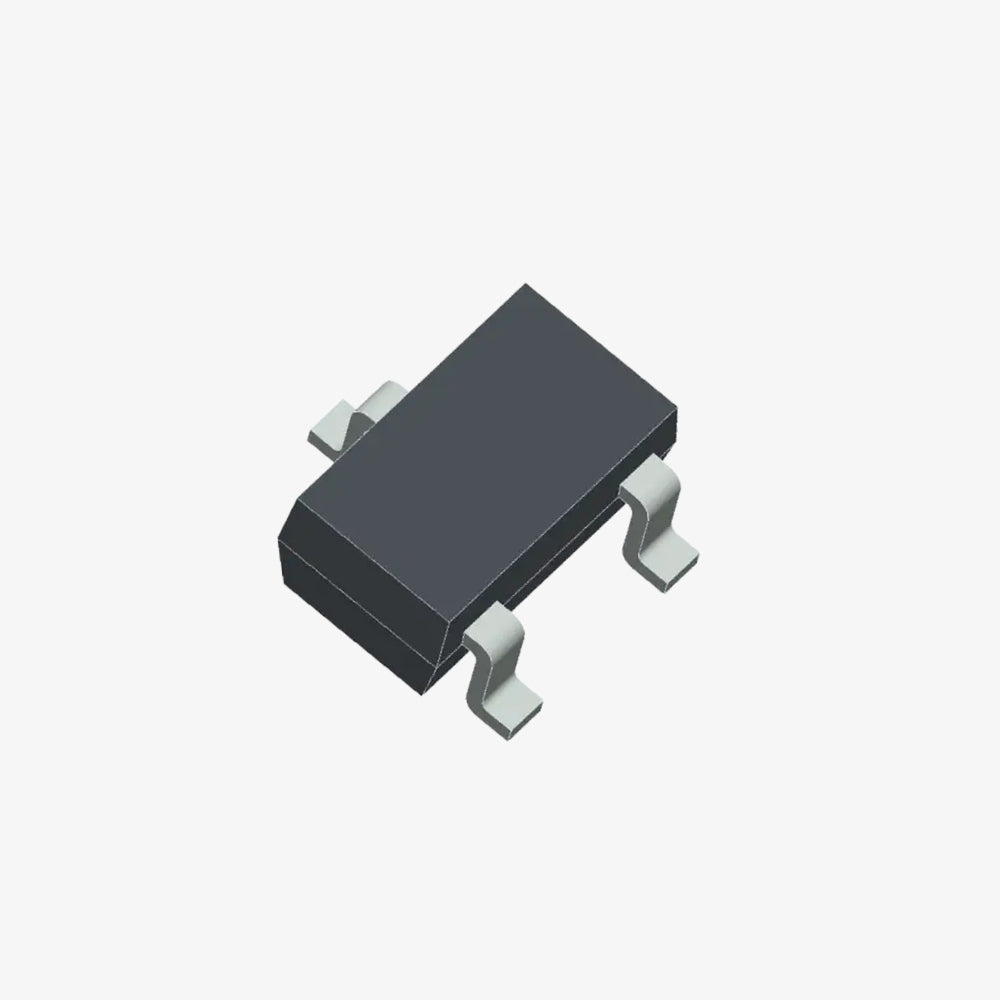

BC557 Transistor - SOT-23 SMD Package

The BC557 is a general-purpose PNP transistor housed in a SOT-23 SMD package, designed for a variety of switching and amplification applications. It features high gain and low saturation voltage, making it suitable for use in analog and digital circuits. This transistor is commonly used in signal amplification, voltage regulation, and low-power switching tasks.

Specifications:

• Transistor Type: PNP
• Package Type: SOT-23 SMD
• Package Size: 3 Pins
• Maximum Collector-Emitter Voltage (Vceo): -45 V
• Maximum Collector-Base Voltage (Vcbo): -45 V
• Maximum Emitter-Base Voltage (Vebo): -5 V
• Maximum Collector Current (Ic): -800 mA
• DC Current Gain (hFE): 100 to 600
• Power Dissipation (Ptot): 500 mW
• Operating Temperature Range: -55°C to +150°C

Pin Configuration:

1. Emitter: Emitter terminal
2. Base: Base terminal
3. Collector: Collector terminal

Features:

• High current gain (hFE)
• Low saturation voltage
• High switching speed
• Suitable for SMD applications
• Reliable performance

Applications:

• Signal amplification
• Voltage regulation
• Low-power switching circuits
• Analog and digital circuits

Package Includes:

1 x BC557 Transistor (SOT-23 SMD Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
