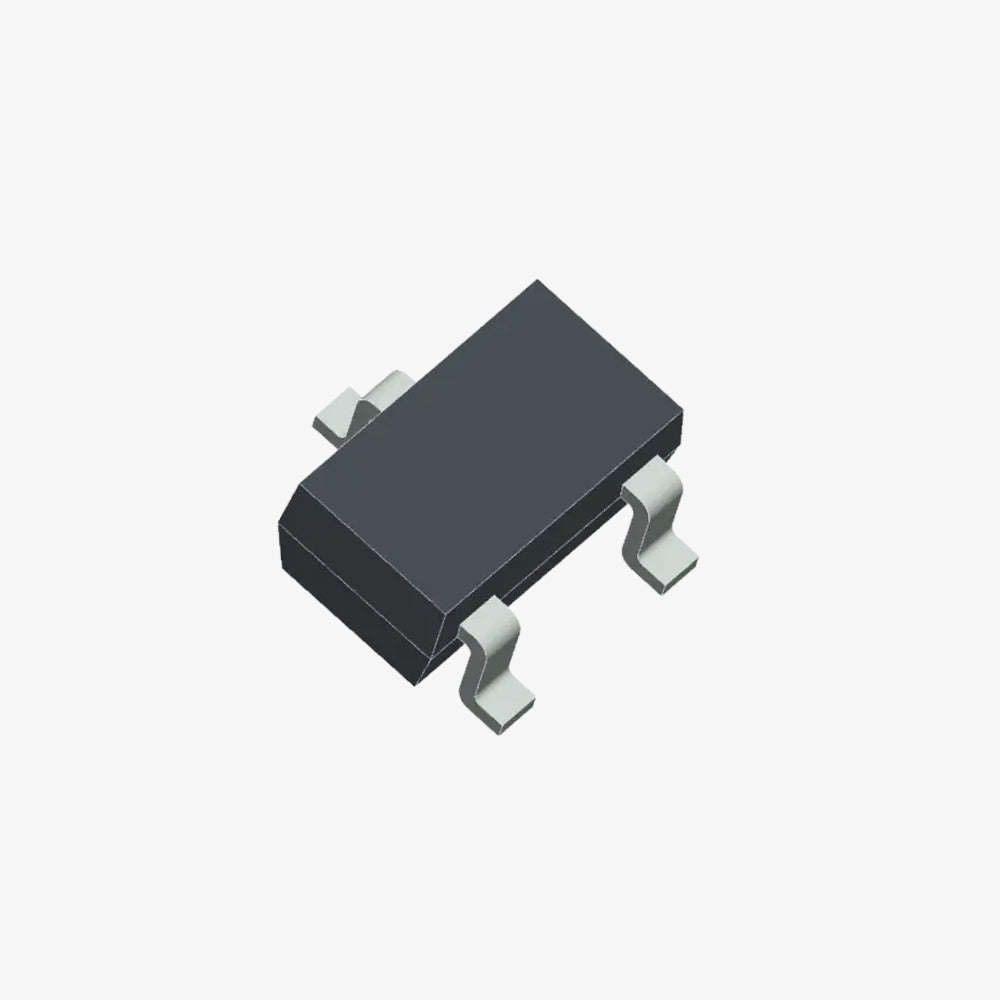

BC558 SMD Transistor SOT-23 SMD Package

The BC558 is a PNP bipolar junction transistor (BJT) designed for general-purpose switching and amplification in electronic circuits. Encapsulated in a compact SOT-23 surface mount package, this transistor is suitable for applications where space is limited and efficient performance is required.

Specifications:

• Transistor Type: PNP
• Package Type: SMD SOT-23
• Package Size: 3 Pins
• Collector-Emitter Voltage (Vce): -30 V
• Collector-Base Voltage (Vcb): -30 V
• Emitter-Base Voltage (Veb): -5 V
• Collector Current (Ic): -100 mA
• Power Dissipation: 250 mW
• DC Current Gain (hFE): 110 to 800
• Operating Temperature Range: -55°C to +150°C

Pin Configuration:

1. Emitter (E): Connected to the negative supply or ground.
2. Base (B): Used to control the transistor's operation.
3. Collector (C): Connected to the load or output.

Features:

• High DC current gain
• Low collector-emitter saturation voltage
• Ideal for general-purpose switching and amplification
• Compact SOT-23 package for space-constrained designs

Applications:

• Audio amplification
• Signal processing
• Switching applications
• Small signal amplification
• General-purpose electronic circuits

Package Includes:

1 x BC558 SMD Transistor (SOT-23 Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
