BC817-40 45 V, 500 mA (SMD SOT-23 Package) NPN general-purpose transistors - Pack Of 5 Pieces

BC817-40 45 V, 500 mA (SMD SOT-23 Package) NPN general-purpose transistors - Pack Of 5 Pieces

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

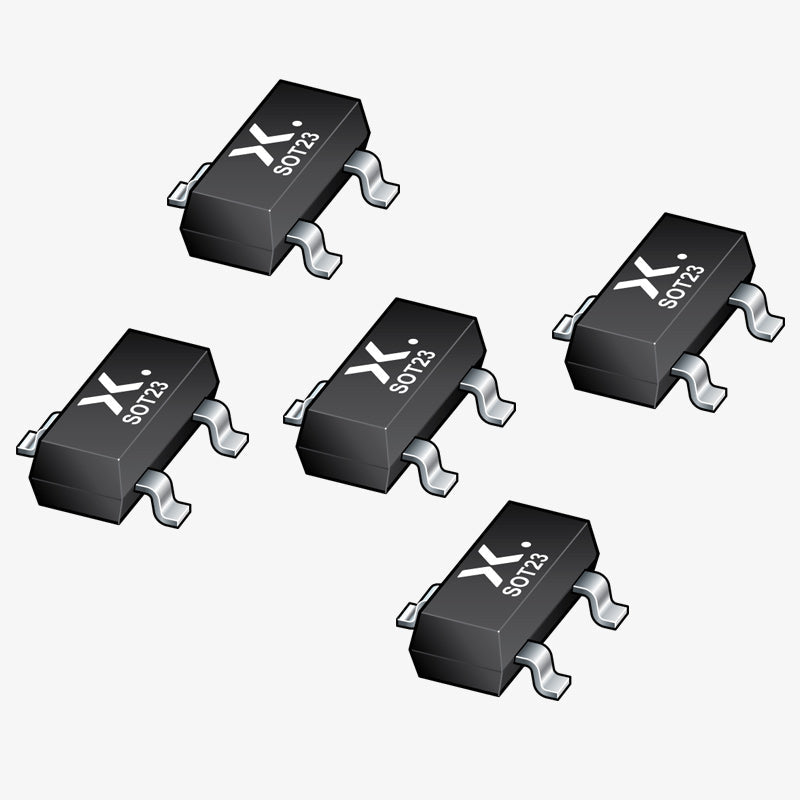

NPN general-purpose transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

Features and benefits :

  • High current
  • Three current gain selections

Applications :

  • General-purpose switching and amplification

Specifications :

Type number Package version Size (mm) Polarity Ptot (mW) VCEO [max] (V) IC [max] (mA) hFE [min] hFE [max]
BC817-40 SOT23 2.9 x 1.3 x 1 NPN 250 45 500 250 600

Datasheet :

Package Includes :

1 x 5 Piece of BC817-(SMD SOT-23 Package) - NPN General Purpose Transistor
