BCP56 - BJT NPN 80V Transistor SOT-223 SMD Package

BCP56 - BJT NPN 80V Transistor SOT-223 SMD Package

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

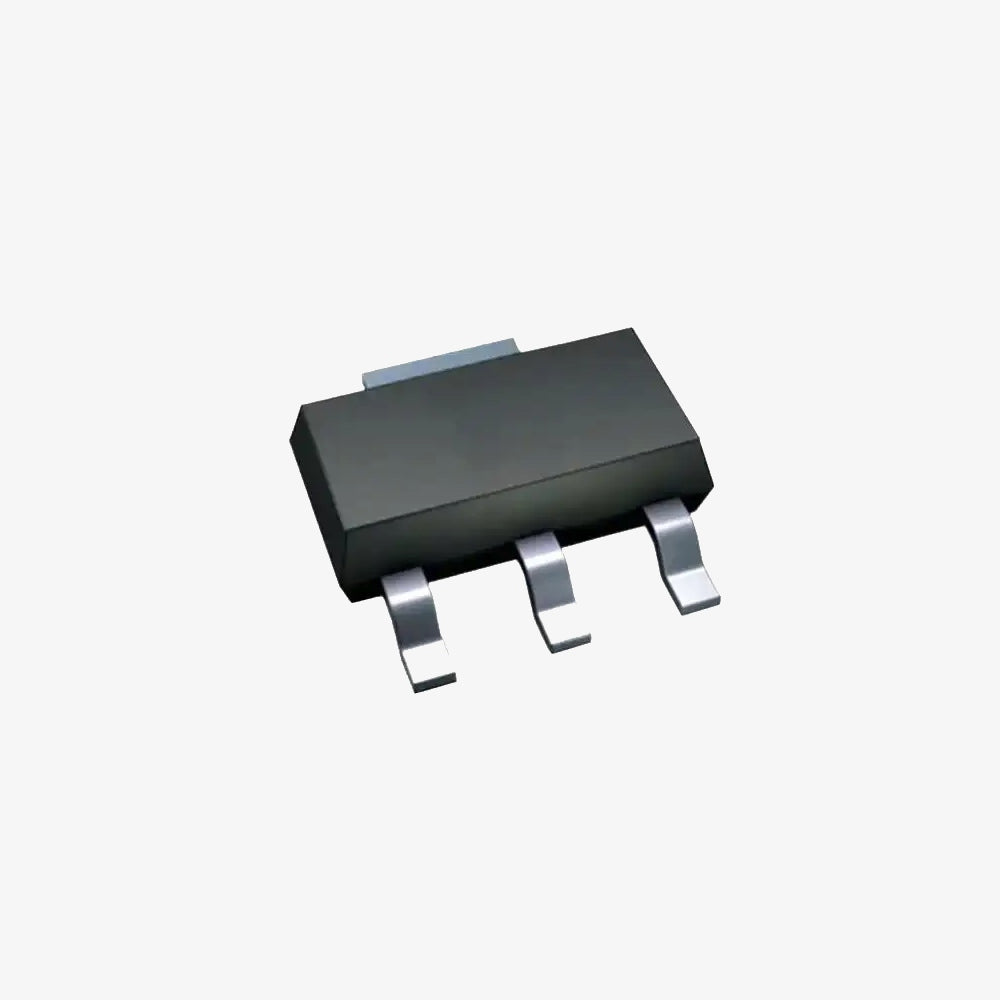

The BCP56 is a high-voltage NPN bipolar junction (BJT) designed for various applications, including switching and amplification. It is packaged in a SOT-223 surface-mount device (SMD) package, providing a compact and efficient solution for modern electronic designs.

Specifications:

  • Type: NPN Transistor
  • Collector-Emitter Voltage (Vce): 80V
  • Collector-Base Voltage (Vcbo): 100V
  • Emitter-Base Voltage (Vebo): 5V
  • Collector Current (Ic): 1A
  • Power Dissipation (Ptot): 1.5W

Pin Configuration:

  1. Emitter
  2. Base
  3. Collector

Key Characteristics:

  • DC Current Gain (hFE): Typically ranges from 63 to 160.
  • Transition Frequency (fT): 100MHz
  • Collector-Emitter Saturation Voltage (Vce(sat)): 500mV at 500mA
  • Noise Figure: Low

Features:

  • High Collector-Emitter Voltage (80V)
  • High Collector Current Capability (1A)
  • High Power Dissipation (1.5W)
  • High Transition Frequency
  • Suitable for Surface-Mount Applications

Note: Product images are for illustrative purposes only and may differ from the actual product.
