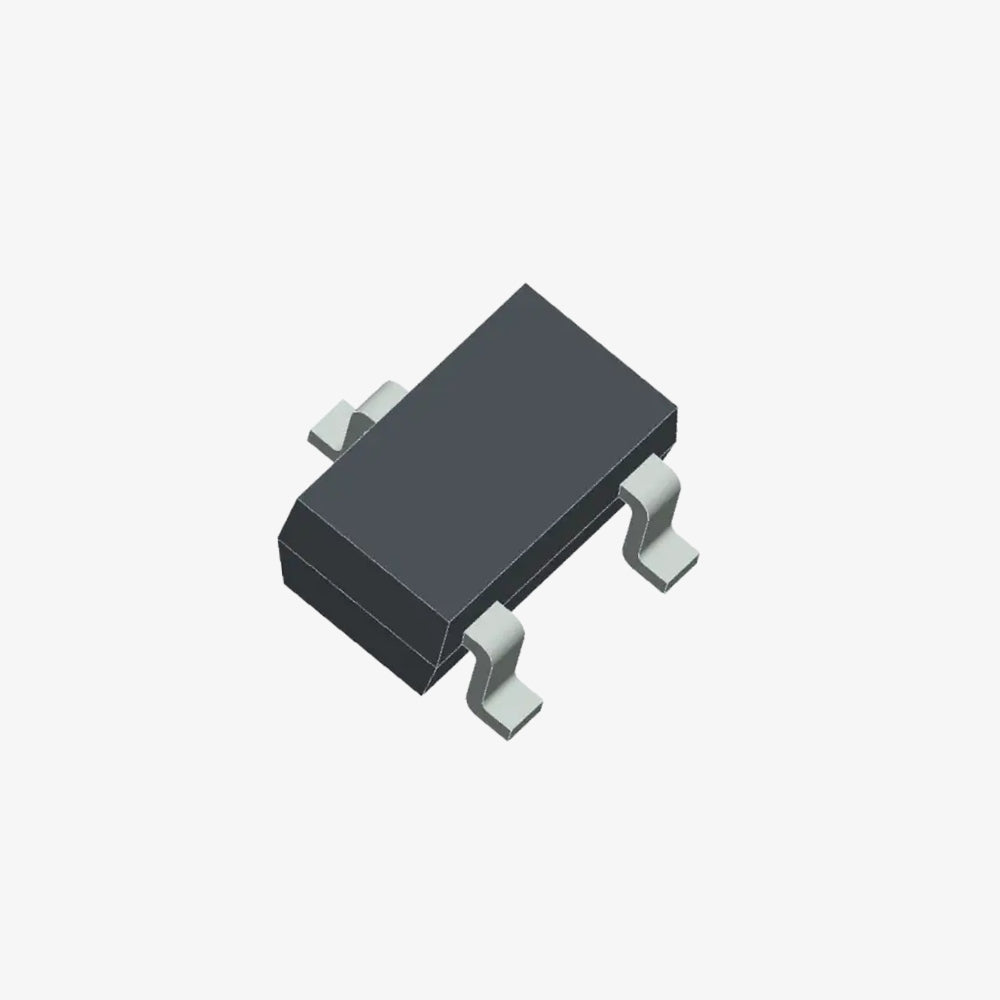

The BCV47 is an NPN Darlington transistor, which is designed for high current gain and efficient switching applications. It is housed in a compact SOT-23 surface-mount device (SMD) package, making it suitable for modern high-density electronic designs.

Specifications:

  • Type: NPN Darlington
  • Collector-Emitter Voltage (Vce): 45V
  • Collector-Base Voltage (Vcbo): 45V
  • Emitter-Base Voltage (Vebo): 5V
  • Collector Current (Ic): 500mA
  • Power Dissipation (Ptot): 250mW

Pin Configuration:

  1. Emitter
  2. Base
  3. Collector

Key Characteristics:

  • DC Current Gain (hFE): Typically ranges from 1000 to 10000.
  • Collector-Emitter Saturation Voltage (Vce(sat)): 2V (max) at 500mA
  • Base-Emitter Saturation Voltage (Vbe(sat)): 2V (max) at 500mA

Features:

  • High Current Gain
  • High Input Impedance
  • Low Saturation Voltage
  • Suitable for Surface-Mount Applications

Applications:

  • Power Amplification
  • Switching
  • Signal Processing
  • High-Gain Circuits
  • Load Drivers
