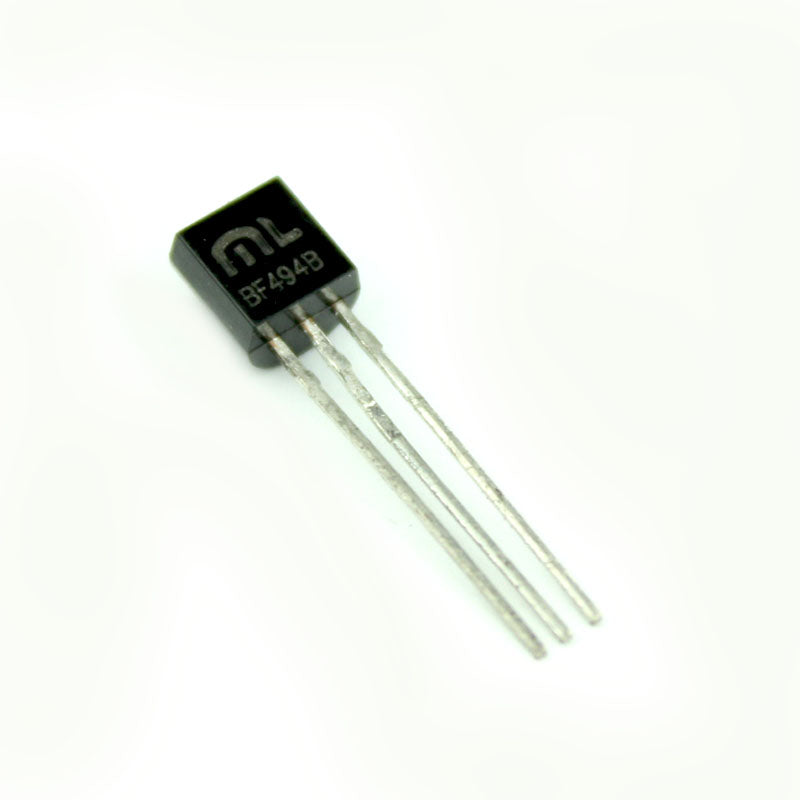

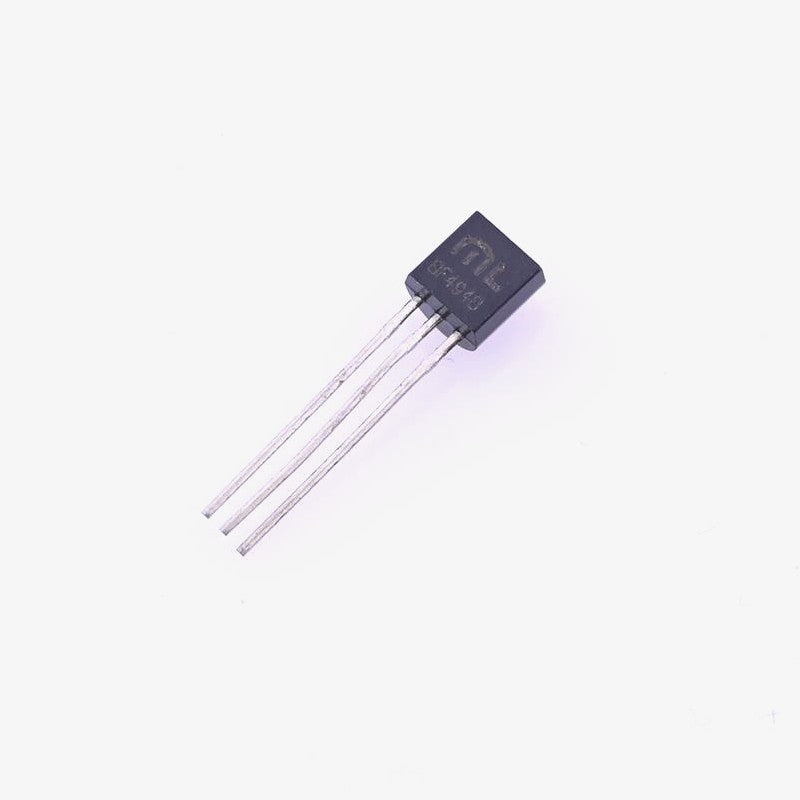

BF494 NPN Medium Frequency Transistor

BF494 NPN Medium Frequency Transistor

Request a Quote

10 Pcs MOQ

3 Day Global Shipping

Prices are subject to market fluctuations

We aim to keep pricing stable, but changes may occur based on external market factors.

Materials and care

HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing

The BF494 NPN Medium Frequency Transistor is an NPN Medium Frequency transistor which can be used in low voltage low current applications. It has a gain of 67 to 220 and a transition frequency of 120MHz at IC=1mA and VCE=10V. It can be used in applications such as radio and television receivers, FM tuners, Low noise AM, mixer-oscillators, IF amplifiers in AM/FM receivers. The maximum collector current is 30mA so make sure you do not cross it and fry your transistor.



Specifications

  • Collector-Base Volt (Vcbo): 30V
  • hfe: 67-220 @ 1mA
  • Power Dissipation (Ptot): 300mW
  • Collector-Emitter Volt (Vceo): 20V
  • Collector Current (Ic): 0.03A
  • Current-Gain-Bandwidth (ftotal): 120MHz
  • Type: PNP
  • Package Type: TO-92



Product Description

BF494 Transistor Pinout



As it is an NPN transistor like , that means you have to provide base pin some voltage to get it in conducting/saturation region. Care should be taken to keep the currents under maximum permissible limits as its maximum power dissipation is 300mW.
