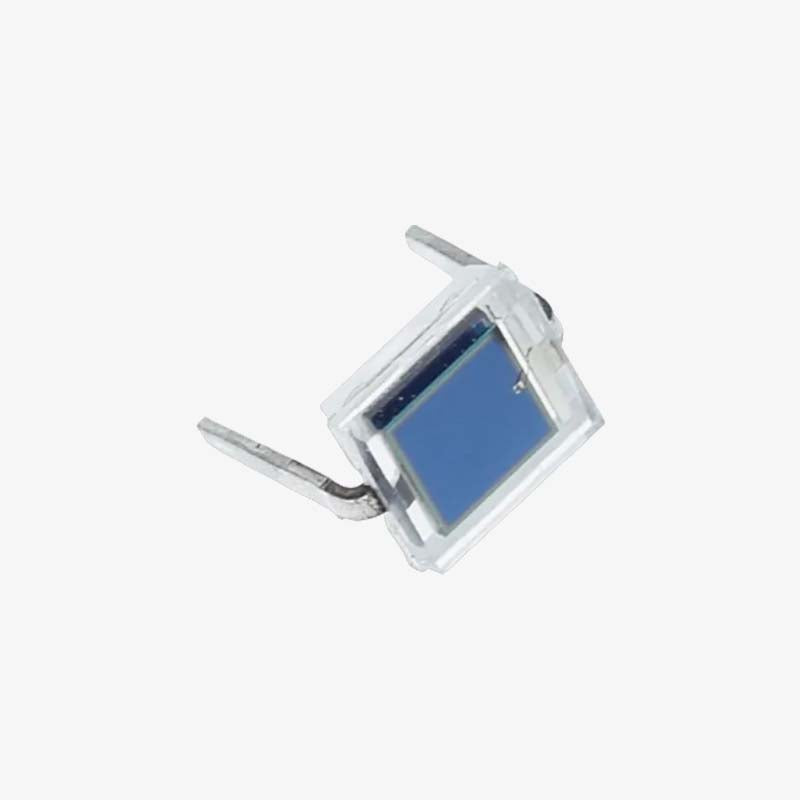

BPW34 Silicon PIN Photodiode
BPW34 Silicon PIN Photodiode
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
Share
BPW34 is a PIN photodiode with high speed and high radiant sensitivity in miniature, flat, top view, clear plastic package. It is sensitive to visible and near infrared radiation. BPW34S is packed in tubes, specifications like BPW34.
Features:
- Package type: leaded
- Dimensions (L x W x H in mm): 5.4 x 4.3 x 3.2
- Radiant sensitive area (in mm2): 7.5
- High photo sensitivity
- High radiant sensitivity
- Suitable for visible and near infrared radiation
- Fast response times
- Angle of half sensitivity: ϕ = ± 65°
- Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Application:Â High speed photo detector.
Specifications:
| Product Type | Photodiode PIN |
| Peak Wavelength | 1100 nm |
| Lens Type | Blue |
| Half Intensity Angle Degrees | 65 |
| Maximum Collector Current | 2 nA |
| Mounting | Through Hole |
| Pins | 2 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 100°C |
Package Includes:
1 x BPW34- PHOTODIODE
