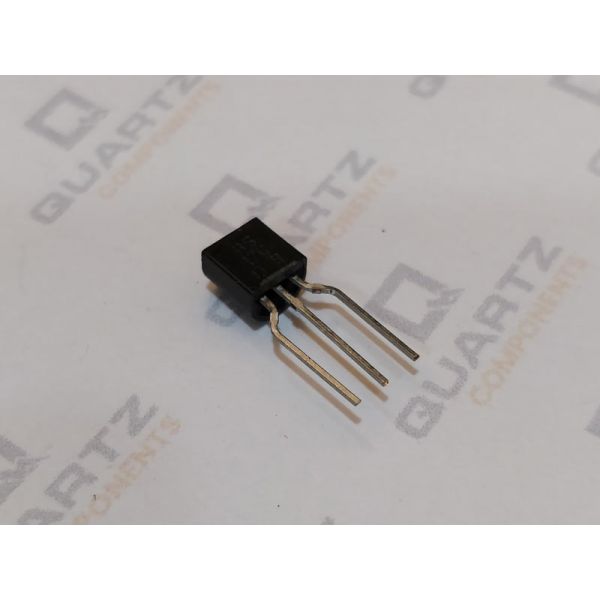

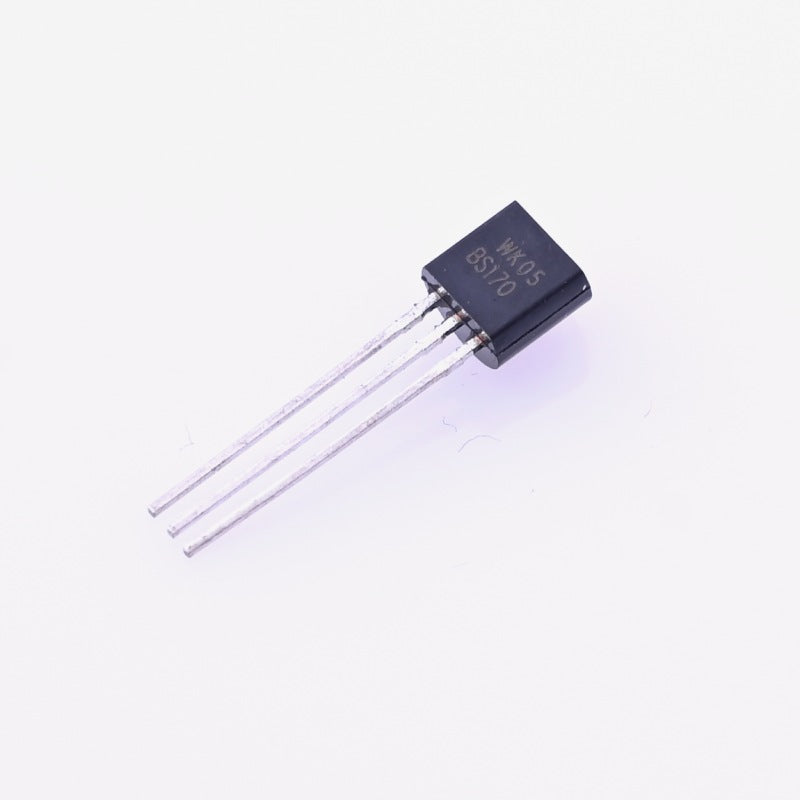

BS170 N-Channel Switching MOSFET
BS170 N-Channel Switching MOSFET
Quantity
10 Pcs MOQ
10 Pcs MOQ
3 Day Global Shipping
Prices are subject to market fluctuations
Prices are subject to market fluctuations
We aim to keep pricing stable, but changes may occur based on external market factors.
Materials and care
Materials and care
HuaQiangBei In-Stock Supply Chain
100% Authentic Products
Rare Chip Sourcing
The BS170N is a small signal N-channel Enhancement Mode MOSFET. It is produced using the high cell DMOS technology. It provides reliable, fast switching performance and can be used in small servo motor control, power MOSFET gate drivers, and other switching applications. The BS170N transistor has a continuous drain current of 500mA and a Drain to Source voltage of 60V. It has an on-state resistance of 2.5 ohms and can withstand peak current up to 1200mA.
Product Description of BS170 N-Channel Switching MOSFET
Â
Features of BS170 N-Channel Switching MOSFET
- Fast Switching Speed
- High Input Impedance
- CMOS Logic Compatible Input
- No Thermal Runaway or Secondary Breakdown
- Voltage controlled small signal switch
- Drain-source voltage: max. 60V
- Gate-source voltage: max. 15V
- Drain current (DC): max. 500 mA
- High saturation current capability
- Operating temperature: 55 to +150 °C
Â
Package Contents
1 x BS170 N-Channel Switching MOSFET
